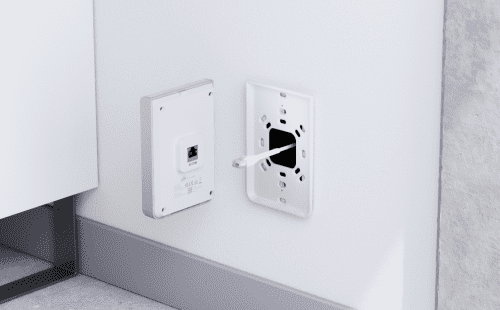

Ubiquiti UniFi 6 In-wall Access Point (U6-IW): An Efficient Network Solution for Your Space

Ubiquiti, a reputable brand in the networking space, has come up with another innovative device – the UniFi 6 In-wall access point (U6-IW). The U6-IW packs a substantial punch of power into a compact size. With dimensions of just 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28″) and a weight of 460g (1.01 lb), it offers an efficient solution to improve the wireless network performance in your home or business.

Built with robust plastic and aluminum, the U6-IW provides durability without compromising its stylish aesthetic. The aluminum mount material enhances its firmness on your wall and guarantees long-lasting service.

The device boasts multiple networking interfaces including a 1GbE RJ45 port for data-in and four 1GbE RJ45 ports for data-out. It features both Ethernet and Bluetooth management interfaces, offering flexibility in control and configuration.

One of the key attributes of the U6-IW is its PoE (Power over Ethernet) capabilities. The device includes one PoE in and one PoE out port, the latter requiring a PoE+ switch. This allows it to operate without the need for an AC power supply, ensuring less clutter and easier deployment in various settings.

The U6-IW demonstrates impressive power performance with a maximum power consumption of just 13.5W, excluding PoE output. It operates within a voltage range of 44—57V DC in PoE mode.

When it comes to wireless performance, the U6-IW shines brightly. With maximum transmission power of 22 dBm and 26 dBm on 2.4 GHz and 5 GHz respectively, it guarantees robust signal strength. The device supports both UL MU-MIMO at 2×2 on 2.4 GHz and DL/UL MU-MIMO at 4×4 on 5 GHz.

Moreover, it provides an excellent throughput rate, reaching up to 573.5 Mbps on 2.4 GHz and a staggering 4.8 Gbps on 5 GHz. Its antenna gain is 5 dBi for 2.4 GHz and 5.9 dBi for 5 GHz, enabling optimal signal propagation.

The U6-IW supports WiFi standards from 802.11a/b/g to WiFi 4, WiFi 5, and the latest WiFi 6, ensuring compatibility with a broad range of devices. It uses advanced security protocols such as WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3), and supports up to 8 BSSIDs per radio.

One of the unique attributes of the U6-IW is its support for VLAN 802.1Q and per-user rate limiting, allowing for efficient network management. It is also capable of isolating guest traffic and supports more than 300 concurrent clients, making it ideal for high-density environments.

The U6-IW offers a range of supported data rates depending on the WiFi standards used. For instance, for the latest WiFi 6 standard (802.11ax), the device supports data rates ranging from 7.3 Mbps to 4.8 Gbps.

To use the U6-IW, your network must have the UniFi Network Version 6.4.52 or later. This ensures that you can leverage all the advanced features this device has to offer.

In conclusion, the Ubiquiti UniFi 6 In-wall access point (U6-IW) is a compact, robust, and high-performance device that delivers efficient networking solutions for any space. Whether you are looking for a solution for your home or business, the U6-IW is designed to meet your networking needs while ensuring a seamless user experience.
