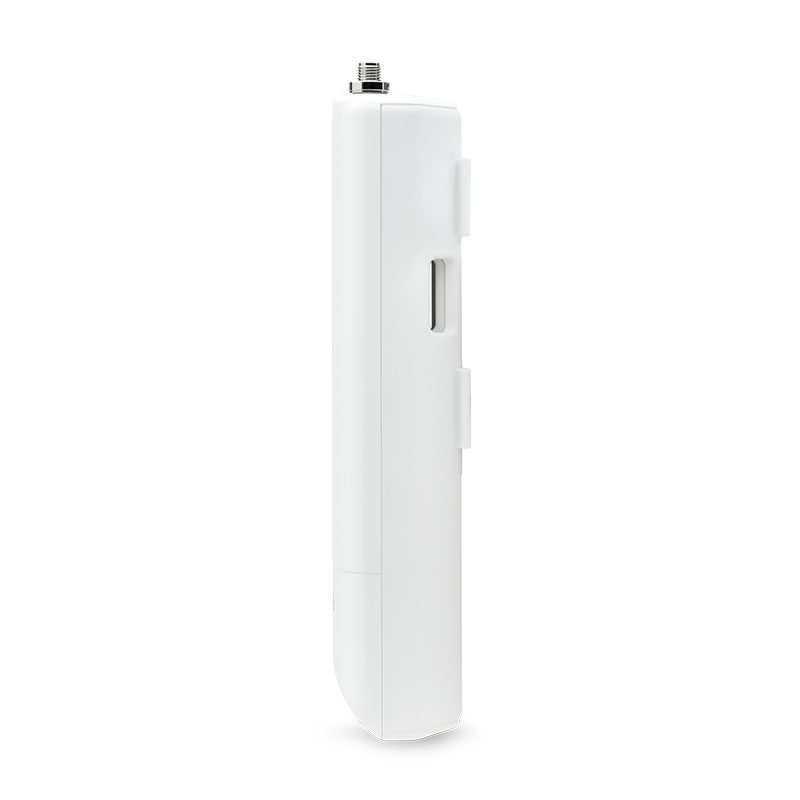

Ubiquiti Rocket R5AC-Lite airMAX ac base station radio for high-performance wireless networks

Ubiquiti Networks R5AC-LITE rocket ac airMAX ac BaseStation - Image 2

Ubiquiti R5AC-Lite 5GHz radio delivering reliable long-range connectivity with airMAX ac technology.

Lightweight Rocket R5AC-Lite unit for scalable, carrier-class outdoor wireless networking

Ubiquiti Networks R5AC-LITE rocket ac airMAX ac BaseStation

Name: Almiria TechStore Kenya
Price range: $

KSh19,000.00 Excl. Tax

airMAX AC Technology for up to 500+ Mbps throughput.
5 GHz frequency band
500+ Mbps throughput
50+ client capacity
Dedicated spectral analysis radio

Genuine product Secure checkout Warranty and order support Discounted Prices

SKU: R5AC-LITE Category: Ubiquiti Wireless Tags: 5ghz base station, airmax ac, airMAX Kenya, Almiria Techstore, gigabit outdoor ap, long range wireless, PoE base station, point to multipoint, rocket ac, rocket dish compatible, rocket r5ac-lite, Ubiquiti, ubiquiti router, wireless access point, wireless ISP Kenya Brand: Ubiquiti

Description

Ubiquiti Networks R5AC-LITE rocket ac airMAX ac BaseStation

Designed to mount and interface with the Ubiquiti Networks RocketDish, the Ubiquiti Networks R5AC-LITE rocket ac airMAX ac BaseStation uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal. Ports on the BaseStation include one Gigabit Ethernet port and two waterproof RP-SMA RF connections to prevent against water damage. The Ubiquiti Networks R5AC-LITE rocket ac airMAX ac BaseStation is capable of operating in both Access Point, and Station modes allowing you to configure it to suit a variety of networking needs. Integrated QoS functionality allocates network resources to provide enhanced streaming of data while the airMAX engine with custom IC improves TDMA latency. Improved TDMA latency greatly increases data throughput and provides enhanced network speeds.

Specifications forUbiquiti Networks R5AC-LITE rocket ac airMAX ac BaseStation

Physical / Electrical / Environmental

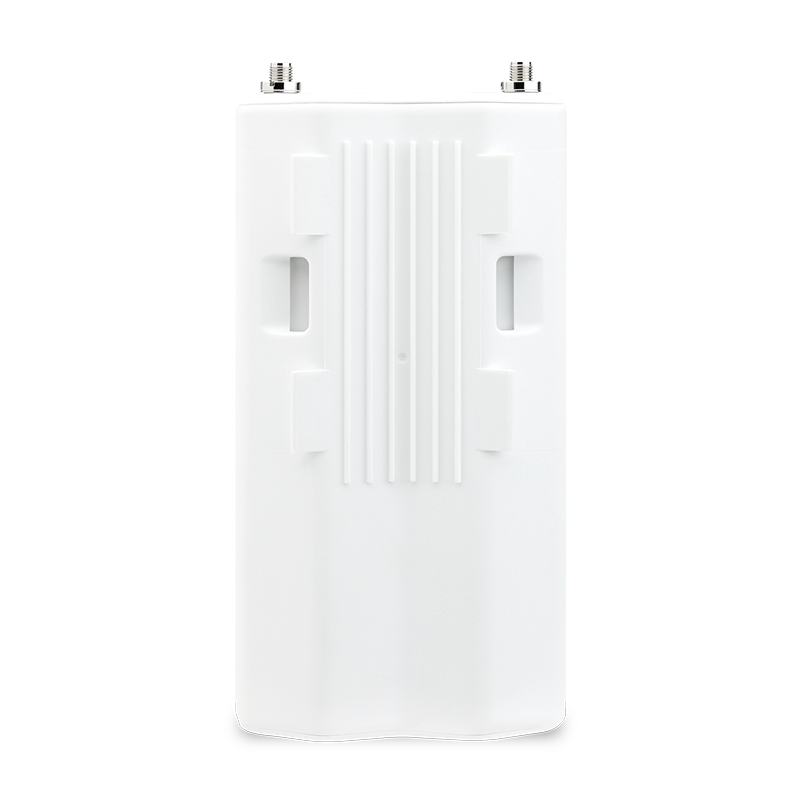

Enclosure	Outdoor UV stabilized plastic
Processor	Atheros MIPS 74Kc, 720 MHz
Memory	128 MB DDR2 SDRAM, 16 MBNOR Flash

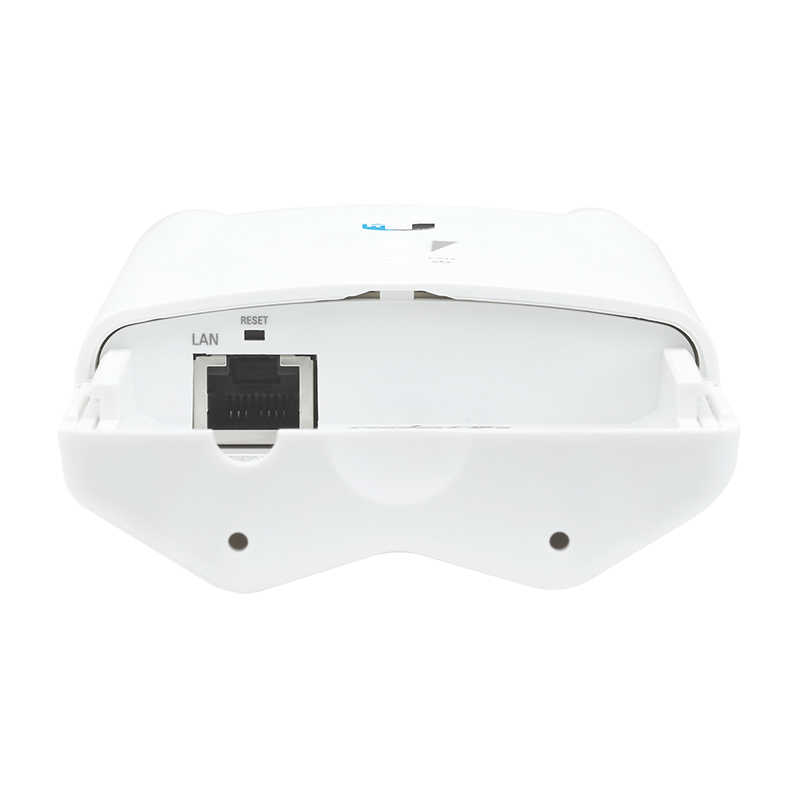

Networking Interface	1 x 10/100/1000 Mbps
RF Connections	2 x RP-SMA waterproof

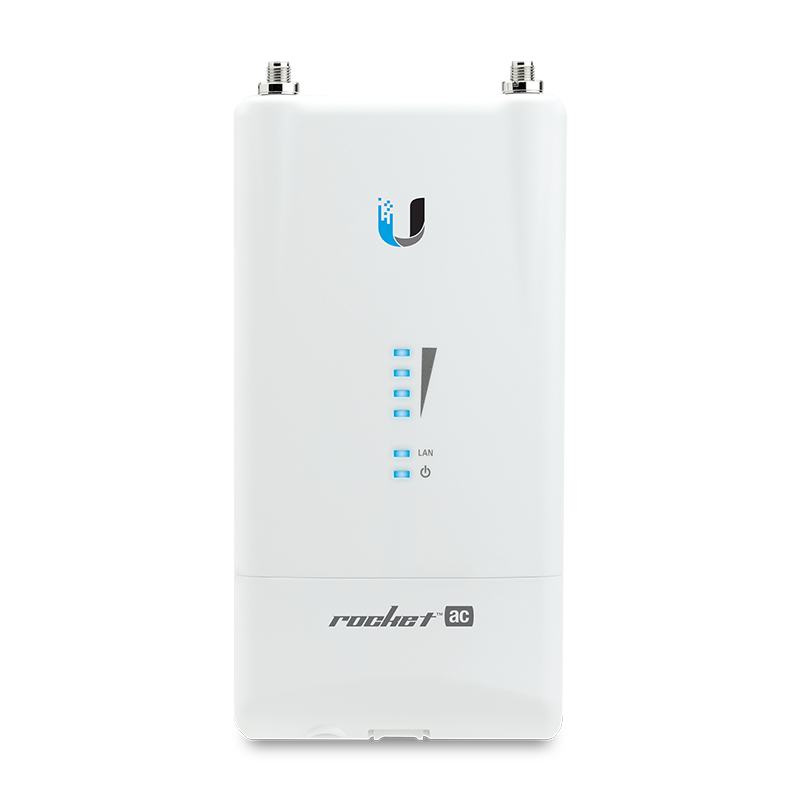

LEDs	4 x signal strength Power Ethernet
Max Power Consumption	8.5 W
Power Supply	24 V, 0.5 A Gigabit PoE adapter
Power Method	Passive PoE (Pairs 4, 5+, 7, 8 return)
ESD/EMP Protection	± 24 KV air / contact
Operating Temperature	-40 to 176°F / -40 to 80°C
Operating Humidity	5 to 95% non-condensing
Shock and Vibration	ETSI300-019-1.4

Software Specifications for Ubiquiti Networks R5AC-LITE rocket ac airMAX ac BaseStation
Modes	Access Point Station
Services	Web Server SNMP SSH Server Telnet Ping Watchdog DHCP NAT Bridging Routing
Utilities	Antenna Alignment Tool Discovery Utility Site Survey Ping Traceroute Speed Test
Distance Adjustment	Dynamic Ack and Ackless Mode
Power Adjustment Range	Software Adjustable UI or CLI
Security	WPA2 AES Only
QoS	Supports Packet Level Classification WMM and User Customer Level: High/medium/low
Statistical Reporting	Up Time Packet Errors Data Rates Wireless Distance Ethernet Link Rate
Channel Sizes	PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz
Other	Remote Reset Support Software Enabled/Disabled VLAN Support 256QAM
Ubiquiti Specifications	30/50/60 MHz Channels airMAX ac Mode Traffic Shaping with Burst Support Discovery Protocol Frequency Band Offset Ackless Mode

Compliance and Approvals
Wireless Approvals	FCC, IC, CE
RoHS Compliance	Yes

Frequency
Operating Frequency	Worldwide: 5150 – 5875 MHz USA: 5725 – 5850 MHz
Output Power	27 dBm
TX Power Specifications	Modulation airMAX ac Data Rate Avg. TX Tolerance 1x BPSK (1/2) 27 dBm ± 2 dB 2x QPSK (1/2) 27 dBm ± 2 dB 2x QPSK (3/4) 27 dBm ± 2 dB 4x 16QAM (1/2) 27 dBm ± 2 dB 4x 16QAM (3/4) 27 dBm ± 2 dB 6x 64QAM (2/3) 27 dBm ± 2 dB 6x 64QAM (3/4) 26 dBm ± 2 dB 6x 64QAM (5/6) 25 dBm ± 2 dB 8x 256QAM (3/4) 23 dBm ± 2 dB 8x 256QAM (5/6) 22 dBm ± 2 dB
RX Power Specifications	Modulation airMAX ac Data Rate Avg. TX Tolerance 1x BPSK (1/2) -96 dBm ± 2 dB 2x QPSK (1/2) -95 dBm ± 2 dB 2x QPSK (3/4) -92 dBm ± 2 dB 4x 16QAM (1/2) -90 dBm ± 2 dB 4x 16QAM (3/4) -86 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB 6x 64QAM (3/4) -77 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB 8x 256QAM (3/4) -69 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB
