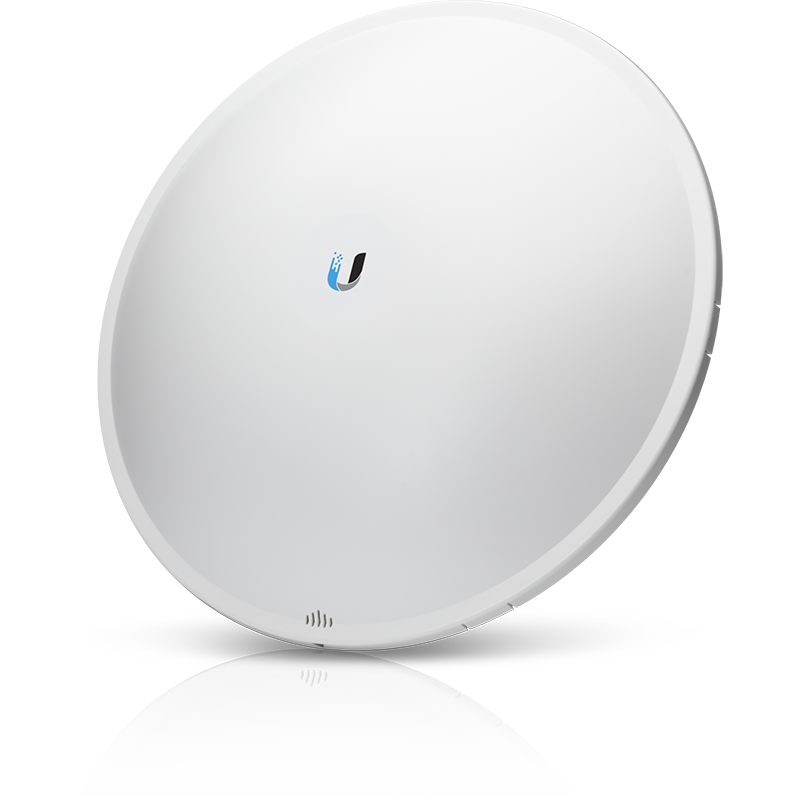

Ubiquiti PBE-5AC-620 PowerBeam ac 5GHz 29dBi Wireless Bridge Antenna Front View

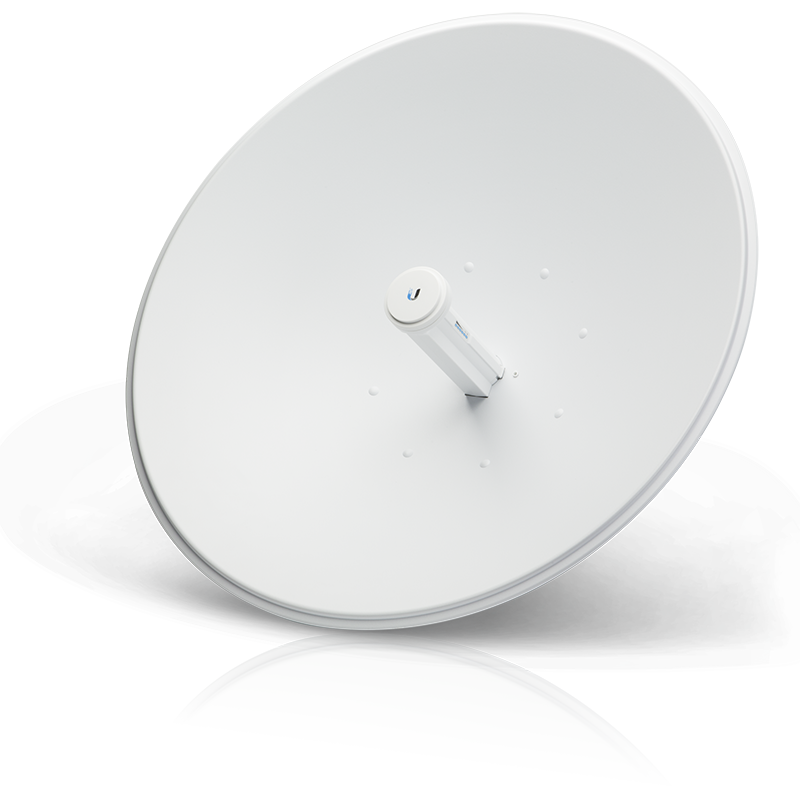

airMAX PowerBeam AC 620 Sector Antenna for PtP and PtMP Deployment

Closeup of Ubiquiti PowerBeam AC Gigabit Ethernet Port and LED Indicators

Ubiquiti Networks PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge

Name: Almiria TechStore Kenya
Price range: $

KSh38,000.00 Excl. Tax

Experience unparalleled connectivity with the Ubiquiti Networks PBE-5AC-620 PowerBeam.

Atheros MIPS 74Kc, 720 MHz Processor
128 MB DDR2, 8 MB Flash Memory
450+ Mb/s Transfer Speed
19+mi (30+ km) Range
airOS v7 Operating System
Time Division Multiple Access (TDMA)
InnerFeed Technology
Multi-Radio Architecture
Next Generation airMAX ac Technology

Out of stock

Genuine product Secure checkout Warranty and order support Discounted Prices

SKU: 9430 Category: Ubiquiti Wireless Tags: airmax bridge, long range wireless, pbe-5ac-620, powerbeam ac, ptp wireless link, ubnt kenya, wireless cpe Brand: Ubiquiti

Description

Ubiquiti Networks PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge

The Ubiquiti Networks PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450+ Mb/s and also offers wide range of 19+ mi (30+ km).

The InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance while eliminating cable losses. Ubiquiti’s airMAX engine with custom IC improves TDMA latency and network scalability.

The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. The PowerBeam ac’s enhanced beam directivity provides optimal performance in high-noise environments. The TDMA airMAX protocol enables optimal scalability, high throughput, and low latency in unlicensed, multi-point networks.

Specification

Performance
Processor	Atheros MIPS 74 Kc, 720 MHz
Memory	128 MB DDR2, 8 MB flash
Networking Interface	1 x 10/100/1000 Ethernet port
Wireless Approvals	FCC, IC, CE
RoHS Compliance	Yes
Power Supply	24 V, 0.5 A Gigabit PoE
Power Method	Passive PoE (Pairs 4, 5+, 7, 8 Return)
Voltage Range	20 to 26 VDC
Max Power Consumption	8.5 W
Gain	29 dBi
Operating Frequency	5725 – 5850 MHz
Wind Loading	872 N at 200 km/h (196 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
LEDs	1 x Power 1 x LAN 4 x WLAN
Signal Strength LEDs	Software-adjustable to correspond to custom RSSI levels
Channel Sizes	PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Polarization	Dual linear
Enclosure	Outdoor UV stabilized plastic
Mounting	Pole-mount kit included
ESD/EMP Protection	Air: ± 24 kV Contact: ± 24 kV
Operating Temperature	-40 to 158°F / -40 to 70°C
Operating Humidity	5 to 95% non-condensing
Salt Fog Test	IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test	IEC 68-2-6
Temperature Shock Test	IEC 68-2-14
UV Test	IEC 68-2-5 at 104°F (40° C), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test	ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Output Power	Output Power: 24 dBm TX Power Specifications Data Rate / Avg. TX / Tolerance airMAX ac 1x BPSK (½) 24 dBm ± 2 dB 2x QPSK (½) 24 dBm ± 2 dB 2x QPSK (¾) 24 dBm ± 2 dB 4x 16QAM (½) 24 dBm ± 2 dB 4x 16QAM (¾) 24 dBm ± 2 dB 6x 64QAM (2/3) 23 dBm ± 2 dB 6x 64QAM (¾) 23 dBm ± 2 dB 6x 64QAM (5/6) 22 dBm ± 2 dB 8x 256QAM (¾) 20 dBm ± 2 dB 8x 256QAM (5/6) 20 dBm ± 2 dBRX Power Specifications Data Rate / Sensitivity / Tolerance airMAX ac 1x BPSK (½) -96 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB
VSWR	1.6:1
Built-In Mechanical Downtilt	+15° to -15°
Dimensions	24.41 x 24.41 x 15.20″ / 620 x 620 x 386 mm
Weight	14.11 lb / 6.40 kg
