Ubiquiti Networks ETH-SP-G2 Surge Protector White
KSh3,500.00 Excl. Tax
ESD Protection for Outdoor High-Speed Networks
- Protects outdoor Ethernet devices
- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with GbE networks
Genuine product Secure checkout Warranty and order support Discounted Prices

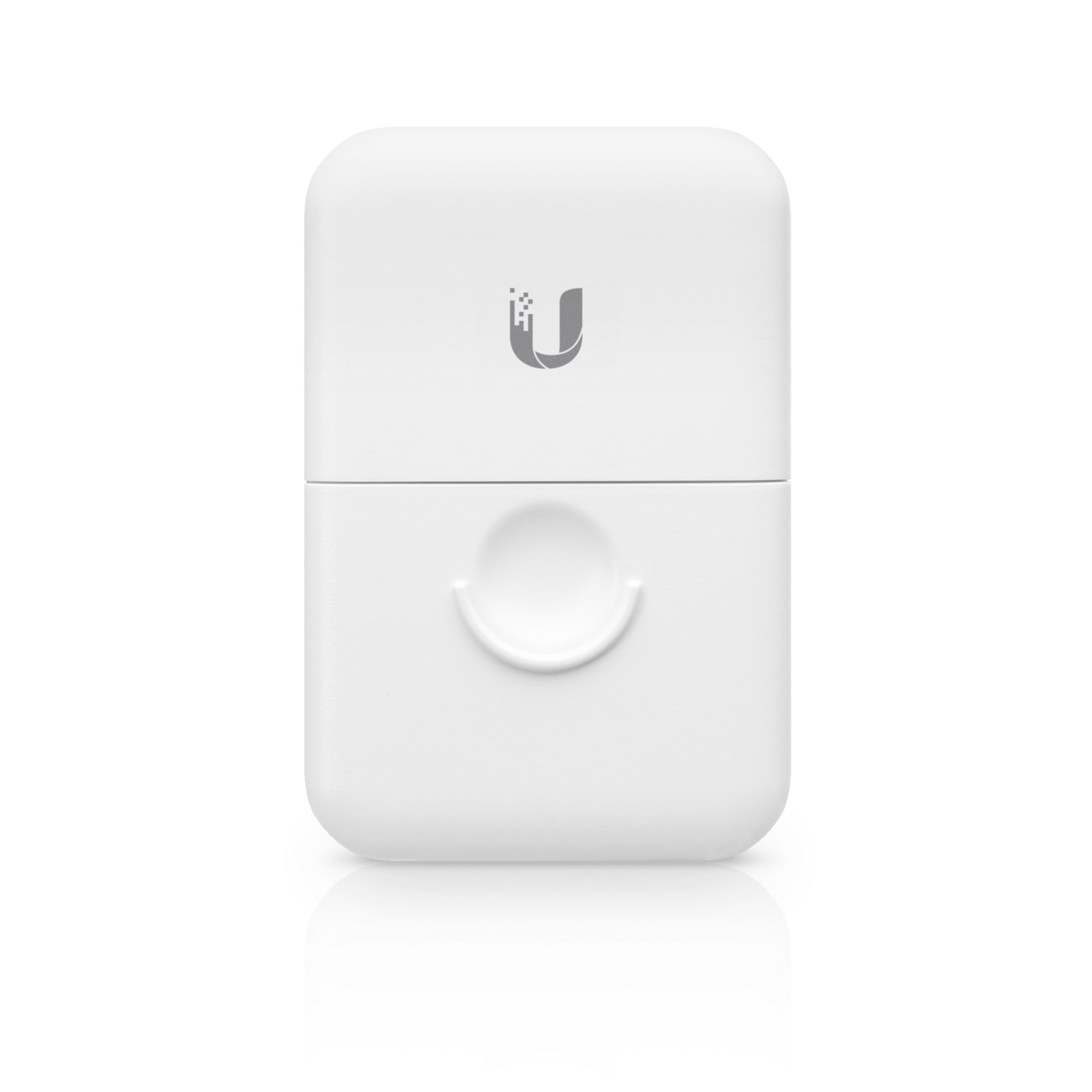

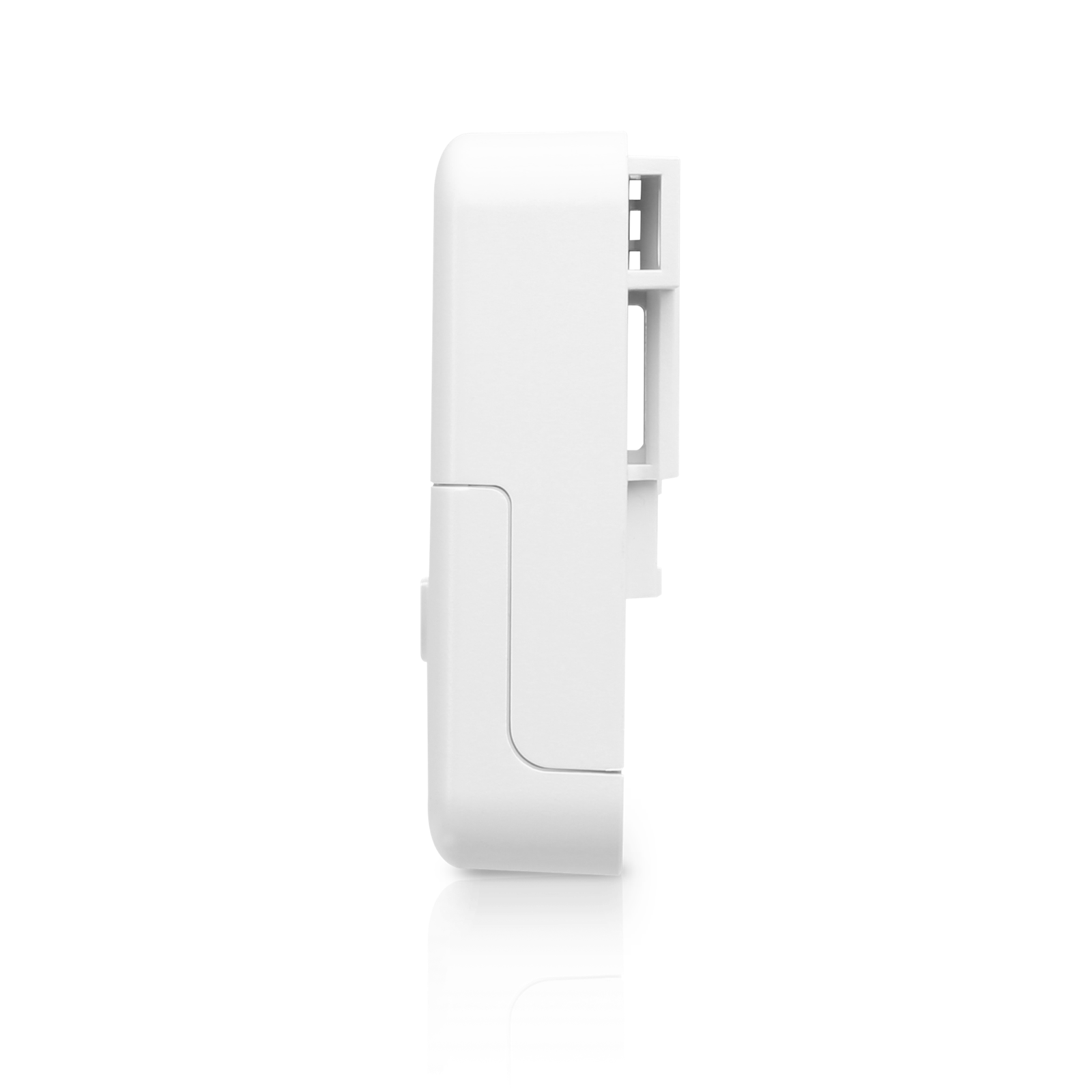

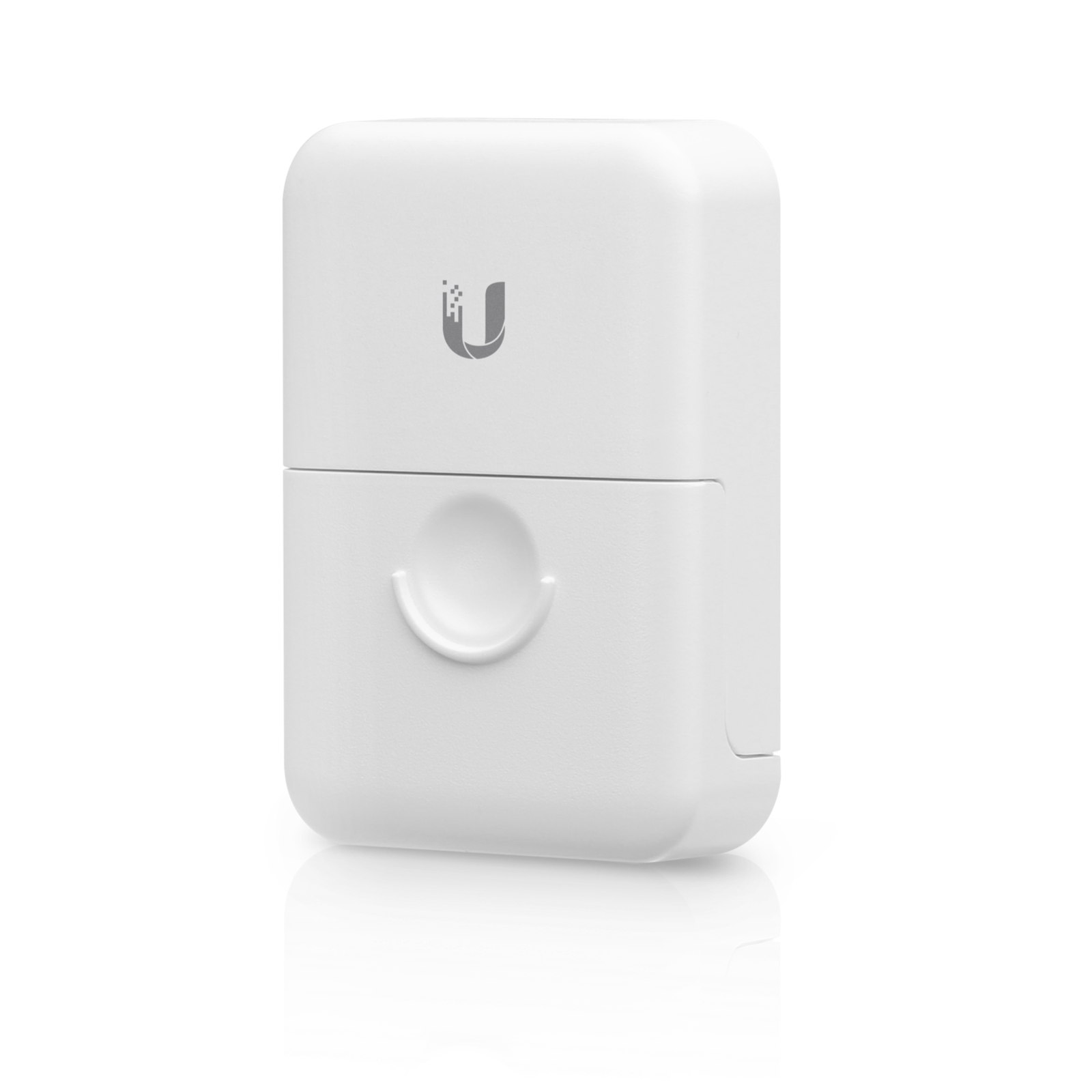

Ubiquiti Networks ETH-SP-G2 Surge Protector White (ETH-SP-G2)
Ubiquiti Networks ETH-SP-G2
The ETH-SP is engineered to protect any Power‑over‑Ethernet (PoE) or non‑PoE device with connection speeds of up to 1 Gbps.
ESD Protection for Outdoor High-Speed Networks
Introducing the Ethernet Surge Protector, model ETH-SP, from Ubiquiti Networks. The ETH-SP is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti® airMAX® devices already have robust ESD protection built in, adding the ETH-SP to the installation provides an additional layer of protection to the network.
Additional Product Notes
- Low-Cost Protection and Fast Installation
- Protects Outdoor Ethernet Devices
- Compatible with 10/100/1000 Mbps Networks
| Mechanical | |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3″) |
| Weight | 80 g (2.8 oz) |
| Weatherproofing | IPX5 |
| Hardware | |

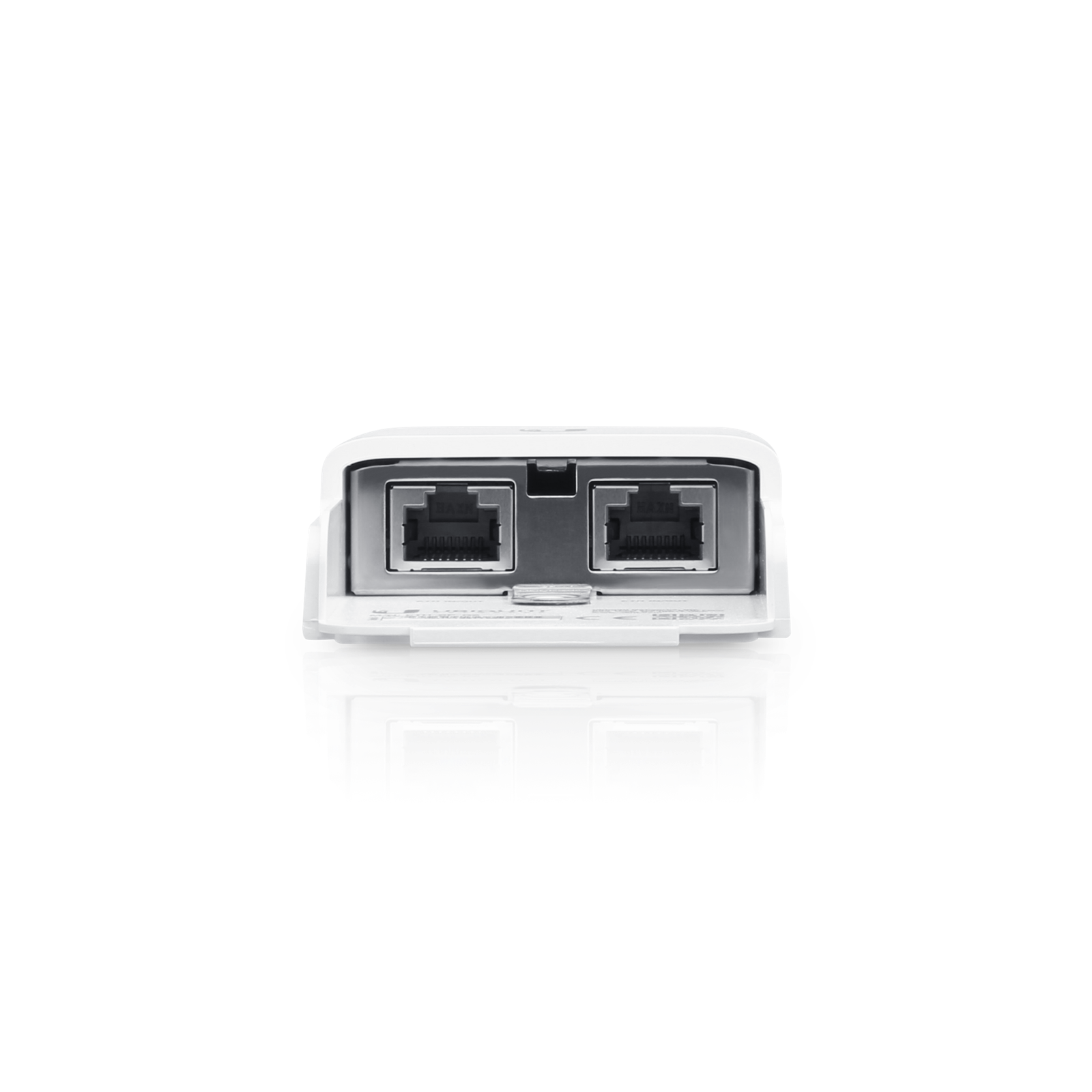

| Networking interface | (2) RJ45 female connectors |
| ESD/EMP protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| DC spark-over voltage | 90V @ 100V/s |
| Max. impulse spark-over voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Max. insulation resistance | 1G ohm @ 50V |
| Max. capacitance | 1.0 pF @ 1 MHz |
| Data line protection | GbE |
| PoE support | Yes |
| Shock and vibration certification | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -30 to 65° C (-22 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
