NS-5AC Ubiquiti airMAX NanoStation AC 5Ghz 802.11ac
KSh16,000.00 Excl. Tax
Experience powerful connectivity with the NS-5AC Ubiquiti airMAX NanoStation AC
- 5 GHz, 15+ km link range
- 450+ Mbps throughput

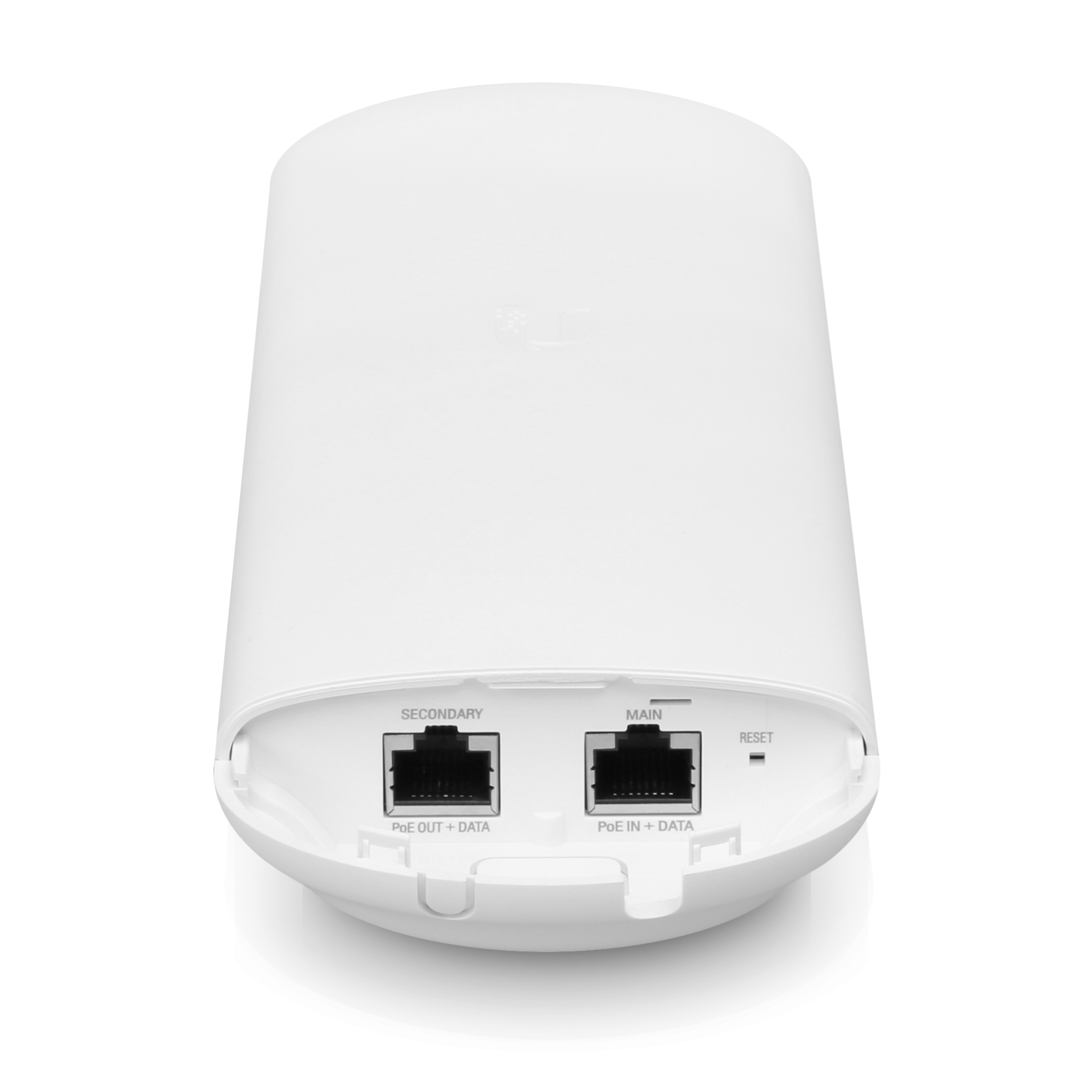

- Secondary LAN with PoE out support
- Dedicated spectral analysis radio
- Throughput: Up to 450+ Mbps Real TCP/IP Throughput
Genuine product Secure checkout Warranty and order support Discounted Prices

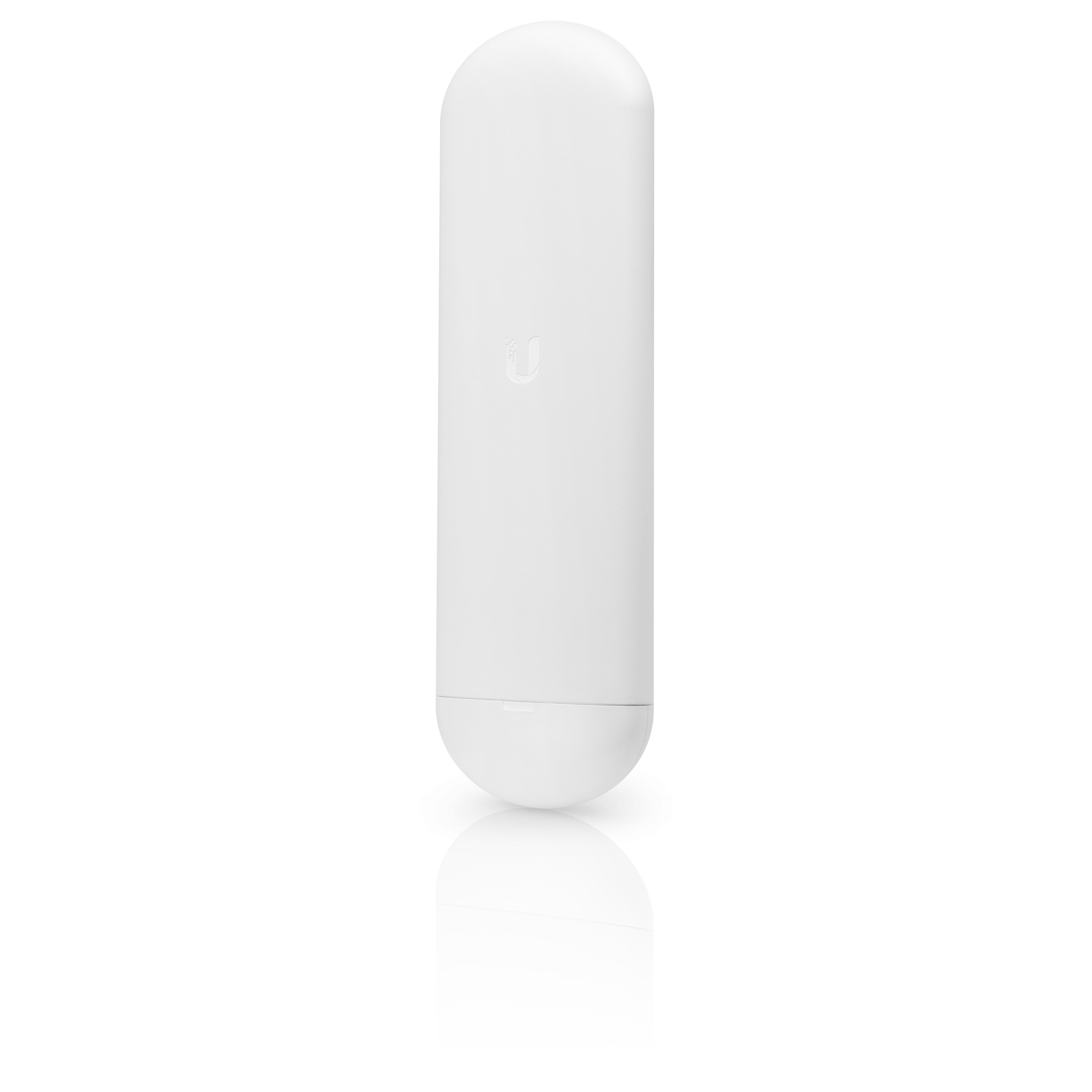

Ubiquiti NanoStation NS-5AC – High-Performance 5GHz airMAX AC CPE for Long-Range Wireless Links
The NS-5AC Ubiquiti airMAX NanoStation AC 5Ghz 802.11ac (MIMO TDMA protocol) technology and dedicated Wi-Fi management to create a more efficient and compact CPE. The low cost, high performance, and small form factor of the NanoStation AC makes it extremely versatile and economical to deploy.
The NS-5AC compact, high-performance CPE, featuring airMAX AC technology and a dedicated Wi-Fi radio for management. The NanoStation 5AC gets maximum gain out of the smallest footprint.
Specifications
| Mechanical | |
|---|---|
| Dimensions | Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6″) With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2″) |
| Weight | 233 g (8.2 oz) |
| Enclosure material | UV-resistant plastic |

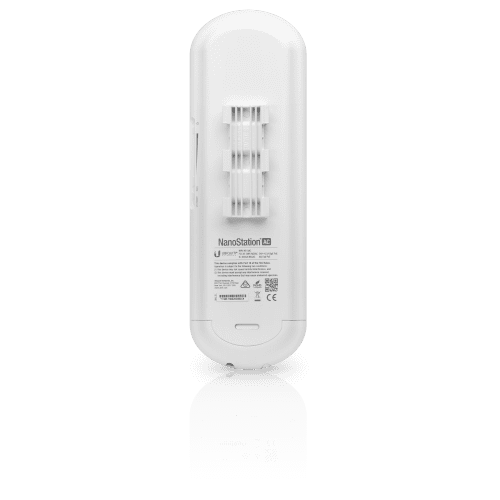

| Mounting | Pole and wall mounting kits (Included) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE alternative A (pairs 1, 2+; 3, 6 Return) Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| Max. power consumption | 9W |
| ESD/EMP protection | Air/contact: ±24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 16 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.6:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 MHz |
| US/CA | 2412 – 2462 MHz |
Buy NS-5AC Ubiquiti airMAX NanoStation AC 5Ghz 802.11ac from Almiri Techstore Ubiquiti Shop In Nairobi Kenya
