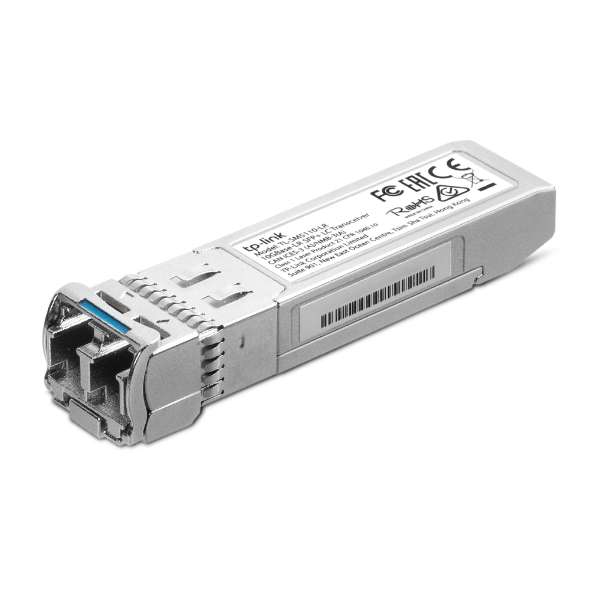

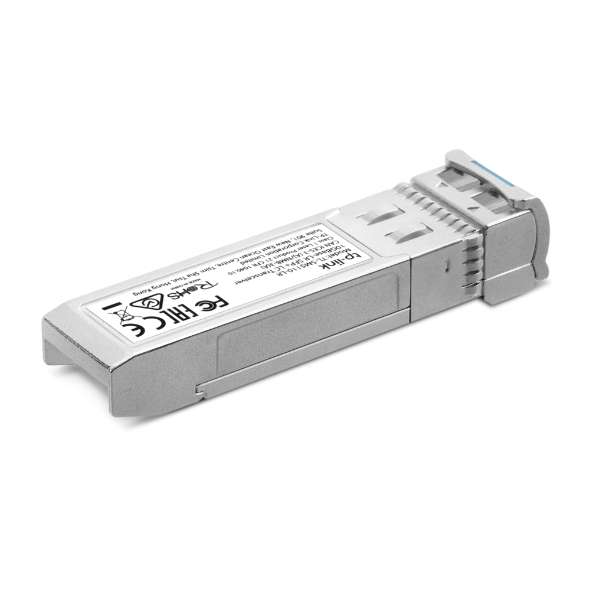

TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver

TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver

The TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver is a high-performance optical module that extends 10 Gigabit Ethernet connections over single-mode fibre. It is designed for compatible switches with 10G SFP+ ports and provides stable, full-duplex communication over long distances. As a result, it is an excellent choice for enterprise networks, data centres, campus networks, and fibre backbone deployments that require dependable 10 Gbps connectivity.

Product Overview

The TP-Link SM5110-LR operates at a wavelength of 1310 nm and supports 10GBASE-LR Ethernet over single-mode fibre. Therefore, it enables high-speed data transmission for network environments that require long-distance fibre connections.

In addition, the transceiver supports transmission distances of up to 10 kilometres using 9/125 μm single-mode fibre. It also supports full-duplex communication, allowing data to travel in both directions at the same time. Consequently, it helps maintain reliable network performance across extended fibre links.

Furthermore, the module supports Digital Diagnostic Monitoring (DDM), making it easier to monitor operating information during normal operation. Moreover, its hot-pluggable design allows installation or replacement without shutting down compatible networking equipment.

Key Features

• Supports 10GBASE-LR Ethernet, delivering reliable 10 Gbps fibre connectivity.
• Uses single-mode fibre with LC connectors, providing dependable long-distance optical communication.
• Operates at a 1310 nm wavelength, supporting stable data transmission.
• Supports full-duplex communication, allowing simultaneous sending and receiving of data.
• Reaches up to 10 kilometres using 9/125 μm single-mode fibre.
• Features a hot-pluggable design, allowing installation or replacement without interrupting network operation.
• Supports Digital Diagnostic Monitoring (DDM), helping administrators monitor operating information.
• Complies with the 10G Small Form-Factor Pluggable Multi-Source Agreement (SFP+ MSA) for broad compatibility.
• Works with compatible TP-Link switches featuring 10G SFP+ ports, including JetStream TL-SG3428X, TL-SG3428XMP, and other supported models.

Technical Specifications

• Brand: TP-Link
• Model: TL-SM5110-LR
• Product Type: 10GBASE-LR SFP+ LC Transceiver
• Transceiver Type: Single-Mode SFP+
• Connector: LC
• Ethernet Standard: 10GBASE-LR
• Data Rate: 10 Gbps
• Operating Wavelength: 1310 nm
• Supported Fibre: 9/125 μm Single-Mode Fibre
• Transmission Distance: Up to 10 km
• Communication Mode: Full Duplex
• Monitoring: Digital Diagnostic Monitoring (DDM)
• Compliance: 10G Small Form-Factor Pluggable Multi-Source Agreement (SFP+ MSA)
• Installation: Hot-Pluggable
• Compatibility: Compatible with TP-Link switches with 10G SFP+ ports

Common Applications

The SM5110-LR is suitable for enterprise offices, campus networks, data centres, and business environments that require long-distance fibre connections. It also works well for connecting core switches, aggregation switches, and remote network cabinets. In addition, it helps extend 10 Gigabit Ethernet links between buildings or across large facilities using single-mode fibre.

Why Choose This Product?

The TP-Link SM5110-LR provides dependable long-distance 10 Gigabit fibre connectivity while keeping installation simple. Moreover, the hot-pluggable design reduces maintenance time because the module can be replaced without shutting down compatible equipment. Digital Diagnostic Monitoring also helps simplify network maintenance. As a result, the transceiver offers a practical solution for expanding high-speed fibre infrastructure.

FAQs

1. What is the TP-Link SM5110-LR used for?

It provides 10 Gigabit Ethernet connectivity over single-mode fibre for compatible switches and other networking equipment with 10G SFP+ ports.

2. What type of fibre does it support?

It supports 9/125 μm single-mode fibre with LC connectors. Therefore, it is suitable for long-distance 10 Gigabit fibre connections.

3. What is the maximum transmission distance?

The transceiver supports transmission distances of up to 10 kilometres over compatible 9/125 μm single-mode fibre.

4. Does it support Digital Diagnostic Monitoring?

Yes. It supports Digital Diagnostic Monitoring (DDM). As a result, administrators can monitor operating information during normal operation.

5. Can the module be installed while the switch is powered on?

Yes. The hot-pluggable design allows installation or replacement without powering down compatible networking equipment.
