TP-Link IES210GPP Industrial Switch 10-Port PoE

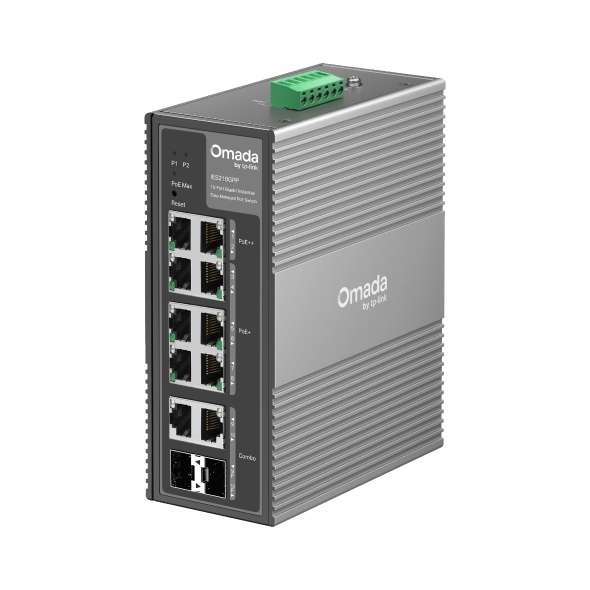

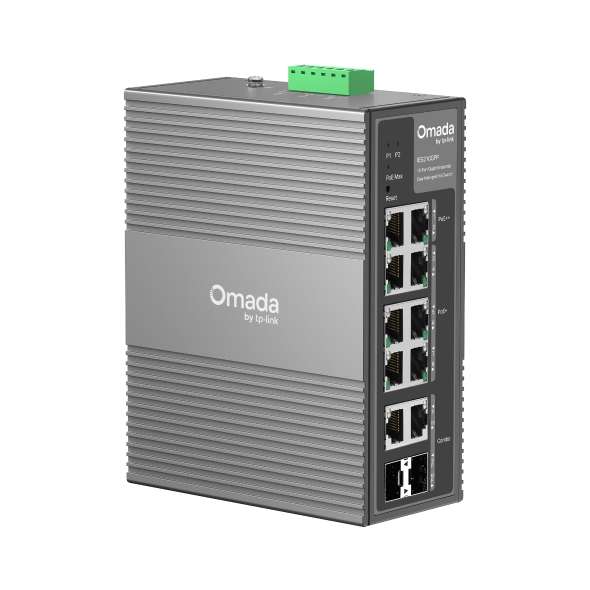

TP-Link IES210GPP Omada 10-Port Gigabit Industrial Managed PoE Switch

The TP-Link IES210GPP Omada 10-Port Gigabit Industrial Managed PoE Switch is built for industrial networking environments that require reliable Gigabit connectivity, Power over Ethernet, and dependable operation under demanding conditions. It combines industrial-grade durability, advanced network management, and high-power PoE capabilities, making it suitable for factories, transportation systems, surveillance networks, and outdoor industrial installations.

Product Overview

The TP-Link IES210GPP provides eight Gigabit RJ45 ports, including two PoE++ ports and six PoE+ ports, together with two Gigabit Combo RJ45/SFP slots for flexible copper or fibre uplink connectivity. With a total PoE power budget of 240 W and up to 60 W available on each PoE++ port, it can power a wide range of compatible network devices while maintaining stable Gigabit performance.

Additionally, the switch is engineered for industrial environments with an operating temperature range of -40°C to 75°C, 6 kV lightning protection, and a 1+1 redundant power input for improved reliability. It also integrates with the Omada platform, allowing centralized cloud management through the web interface or the Omada app.

Key Features

• Provides eight Gigabit RJ45 ports, delivering reliable high-speed connectivity for industrial networks.
• Includes two IEEE 802.3-compatible PoE++ ports and six PoE+ ports, allowing compatible devices to receive both power and data through a single Ethernet cable.
• Features two Gigabit Combo RJ45/SFP slots, offering flexible copper or fibre uplink connections.
• Supports a 240 W PoE power budget, with up to 60 W available on each PoE++ port for high-power compatible devices.
• Operates in temperatures from -40°C to 75°C, making it suitable for demanding industrial environments.
• Provides 6 kV lightning protection to help safeguard connected equipment.
• Supports 1+1 redundant power input, improving system reliability in critical applications.
• Includes VLAN, Quality of Service (QoS), STP, and RSTP, helping optimise traffic management and network resilience.
• Supports PoE transmission up to 250 metres, making it suitable for compatible long-distance deployments.
• Enables centralized cloud management through the Omada web interface and Omada app.
• Uses a durable IP40-rated aluminium enclosure with DIN-rail and wall-mount installation options.

Technical Specifications

• Brand: TP-Link
• Series: Omada
• Model: IES210GPP
• Product Type: Industrial Easy Managed Gigabit PoE Switch
• RJ45 Ports: 8 × Gigabit RJ45
• PoE Configuration:
  • 2 × PoE++
  • 6 × PoE+
• Combo Ports: 2 × Gigabit RJ45/SFP Combo Slots
• PoE Power Budget: 240 W
• Maximum PoE++ Output: Up to 60 W per PoE++ Port
• Extended PoE Distance: Up to 250 m
• Management: Centralized Cloud Management via Web and Omada App
• Network Features:
  • VLAN
  • Quality of Service (QoS)
  • STP
  • RSTP
• Operating Temperature: -40°C to 75°C
• Lightning Protection: 6 kV
• Power Input: 1+1 Redundant Power Input
• Enclosure: IP40 Aluminium Casing
• Mounting Options: DIN-rail and Wall Mount

Common Applications

The IES210GPP is suitable for factories, manufacturing plants, transportation infrastructure, industrial automation, warehouse operations, utility facilities, and industrial surveillance systems. It is designed to power compatible IP cameras, wireless access points, industrial controllers, and other PoE devices while maintaining reliable network performance in harsh operating environments.

Why Choose This Product?

The TP-Link IES210GPP combines industrial durability with advanced networking and high-power PoE capabilities. Its rugged construction, wide operating temperature range, redundant power input, and lightning protection help maintain reliable operation in challenging environments. Furthermore, Omada cloud management and flexible uplink options simplify network administration while supporting future expansion.

FAQs

1. How many PoE ports does the TP-Link IES210GPP provide?

The switch includes eight PoE-capable ports, consisting of two PoE++ ports and six PoE+ ports for powering compatible network devices.

2. What is the total PoE power budget?

The IES210GPP provides a total PoE power budget of 240 W, with each PoE++ port supporting up to 60 W for compatible powered devices.

3. Is the switch designed for industrial environments?

Yes. It features an operating temperature range of -40°C to 75°C, an IP40 aluminium enclosure, 6 kV lightning protection, and redundant power input for industrial deployments.

4. Does the switch support cloud management?

Yes. It integrates with the Omada platform and supports centralized cloud management through the web interface and the Omada app.

5. What uplink options are available?

The switch includes two Gigabit Combo RJ45/SFP slots, allowing flexible copper or fibre uplink connections depending on network requirements.
