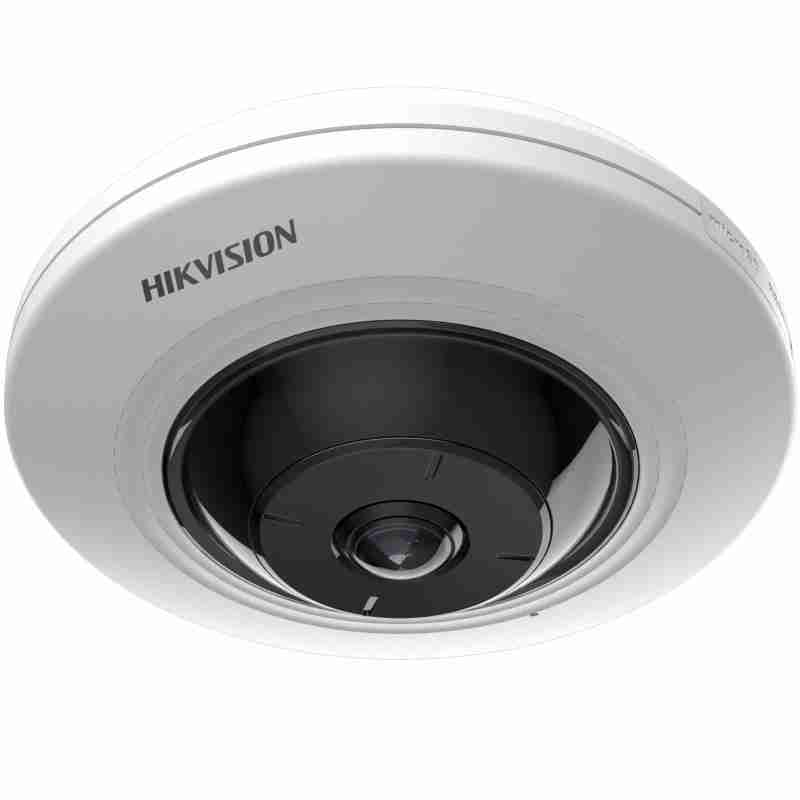

Hikvision DS-2CD2955G0-IS(U) 5MP Fixed Fisheye Network Camera

• Camera
• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution2560 × 1920
• Min. IlluminationColor: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter

• Lens
• Lens TypeFixed focal lens, 1.05 mm
• Focal Length & FOV1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
• FocusFixed
• Lens MountM12
• Iris TypeFixed
• ApertureF2.25
• Depth of Field0.1 m to ∞

• DORI
• DORID: 21 m, O: 8 m, R: 4 m, I: 2 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 8 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

  60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

• Sub-Stream

  50 Hz: 25 fps (640 × 480)

  60 Hz: 30 fps (640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Region of Interest (ROI)1 fixed region for main stream

• Fisheye Display
• Mount TypeSupport wall/table/ceiling mounting
• Display Mode

  Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

• Audio
• Audio TypeMono sound
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect,Hik-Central
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Web Browser

  Plug-in required live view: IE 10+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Network StorageNAS (NFS, SMB/CIFS)

• Image
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,3D DNR
• Wide Dynamic Range (WDR)120 dB

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

• Built-in Microphone-U: Yes
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 12 VDC, 30 A)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA

• Event
• Basic EventMotion detection, video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output

• General
• Power

  12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 7.5 W

• MaterialADC12
• DimensionØ119.9 mm × 41.2 mm (Ø4.7″ × 1.6″)
• Package Dimension150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″)
• WeightApprox. 320 g (0.7 lb.)
• With Package WeightApprox. 500 g (1.1 lb.)
• Language13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
• Storage Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,anti-banding,mirror,password protection

• Approval
• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• EnvironmentCE-RoHS: 2011/65/EU
