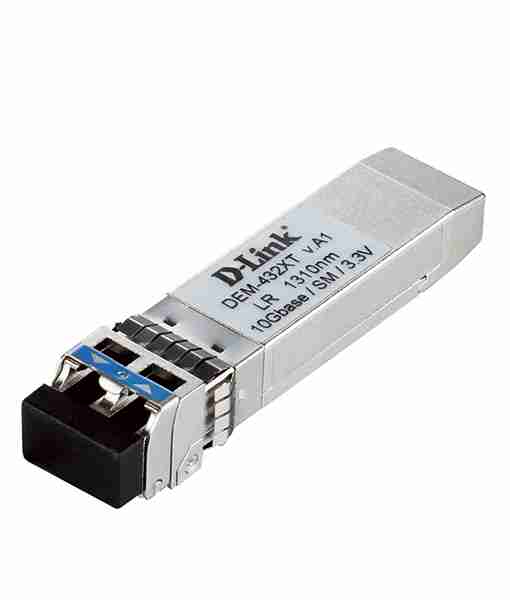

D-Link DEM-432XT-DD 10GBASE-LR SFP+ Transceiver (with DDM), 10km Single Mode

The D-Link DEM-432XT-DD is a high-performance 10GBASE-LR SFP+ transceiver designed to provide robust 10Gbps Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications. Featuring a 1310nm Single-Mode transceiver and Digital Diagnostics Monitoring (DDM) support, this module ensures reliable data transmission over distances up to 10km.

Key Features:

• 10Gbps Ethernet Connectivity: Supports full duplex 10Gigabit speeds on Single-Mode fiber for seamless and fast data transmissions.
• Digital Diagnostics Monitoring (DDM): Real-time monitoring of critical parameters such as bias current, transmit & receive power, temperature, and voltage.
• Enhanced SFP+ Form Factor: Smaller, cost-effective, and lower power dissipation compared to other form factors like Xenpak, X2, and 10G XFP.
• Hot Pluggable: Can be connected or disconnected without powering down the system, ensuring uninterrupted network operations.
• Duplex LC Connector: Ensures reliable and efficient connections.

Technical Specifications:

• Standard Compliance: IEEE-802.3ae, 10GBASE-LR
• Form Factor Type: SFP+
• Fiber Media Support: Single-Mode
• Distance Capacity: 10 km
• Connector: Duplex LC Connector
• Wavelength: 1310nm
• Output Optical Power (TX): Max: 0.5 dBm, Min: -8.2 dBm
• Input Optical Power (RX): Max: 0.5 dBm, Min: -12.6 dBm
• Sensitivity: -12.6 dBm
• Cable Type: Single-mode 9/125 μm fiber
• Power: 3.3 V, Maximum Input Current: 285 mA
• Power Budget: Min: 4.4 dB, Max: 17.6 dB
• Heat Generated: 3.4 kJ/h
• MTBF (Hours): 3,390,000
• Operating Temperature: -5 to 70 °C
• Storage Temperature: -40 to 85 °C
• Operating Humidity: 0 to 85%
• Storage Humidity: 0 to 85%
• Weight: 0.05 lbs (22g)
• Dimensions (W x D x H): 0.58 x 2.22 x 0.47 inches (14.8 x 56.5 x 11.85 mm)
• Bail Latch Color: Blue

Certifications:

• EMI: CE, FCC, VCCI
• Safety: CSA, TUV, CDRH
• Compliance: RoHS, MSA

Applications: Ideal for high-speed data transfer in data centers, enterprise networks, and service provider environments, the DEM-432XT-DD ensures reliable, high-density network connectivity.

Support and Warranty: Backed by a standard 2-year product warranty and free technical support, D-Link’s 10G SFP+ transceivers offer peace of mind and reliable performance for your critical networking needs.

Download the datasheet for more detailed information.

Enhance your network with the reliable and efficient D-Link DEM-432XT-DD 10GBASE-LR SFP+ Transceiver, available from Almiria Limited
