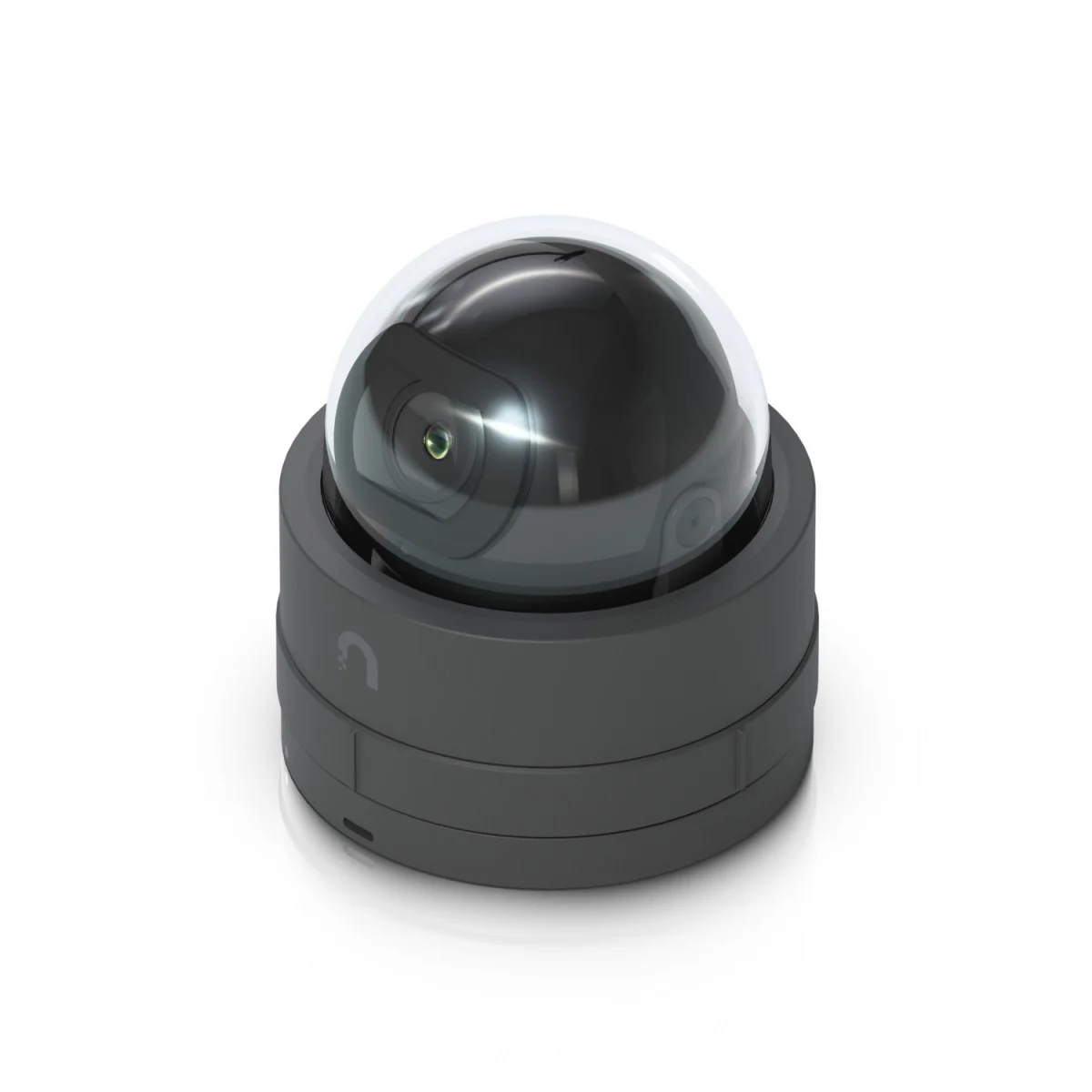

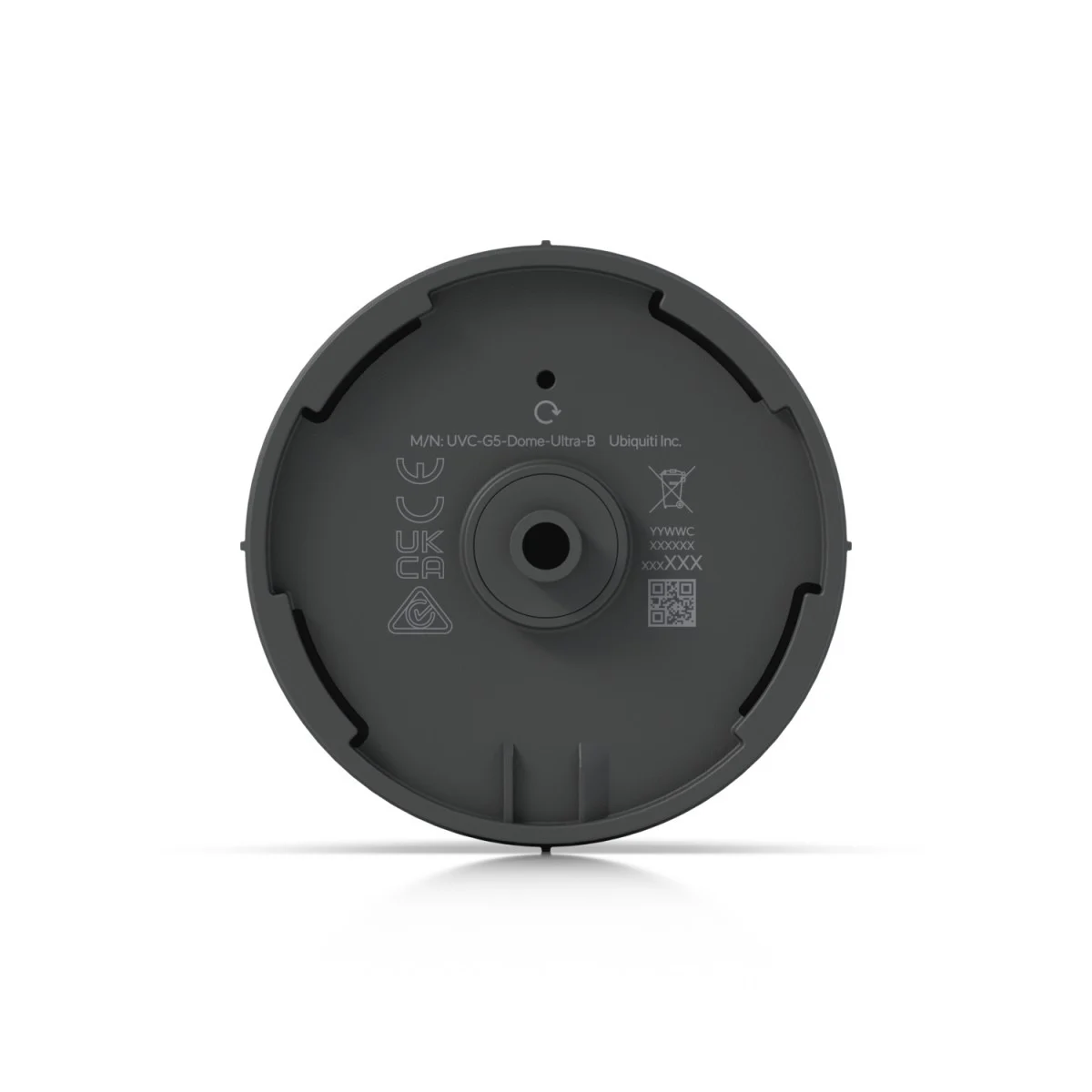

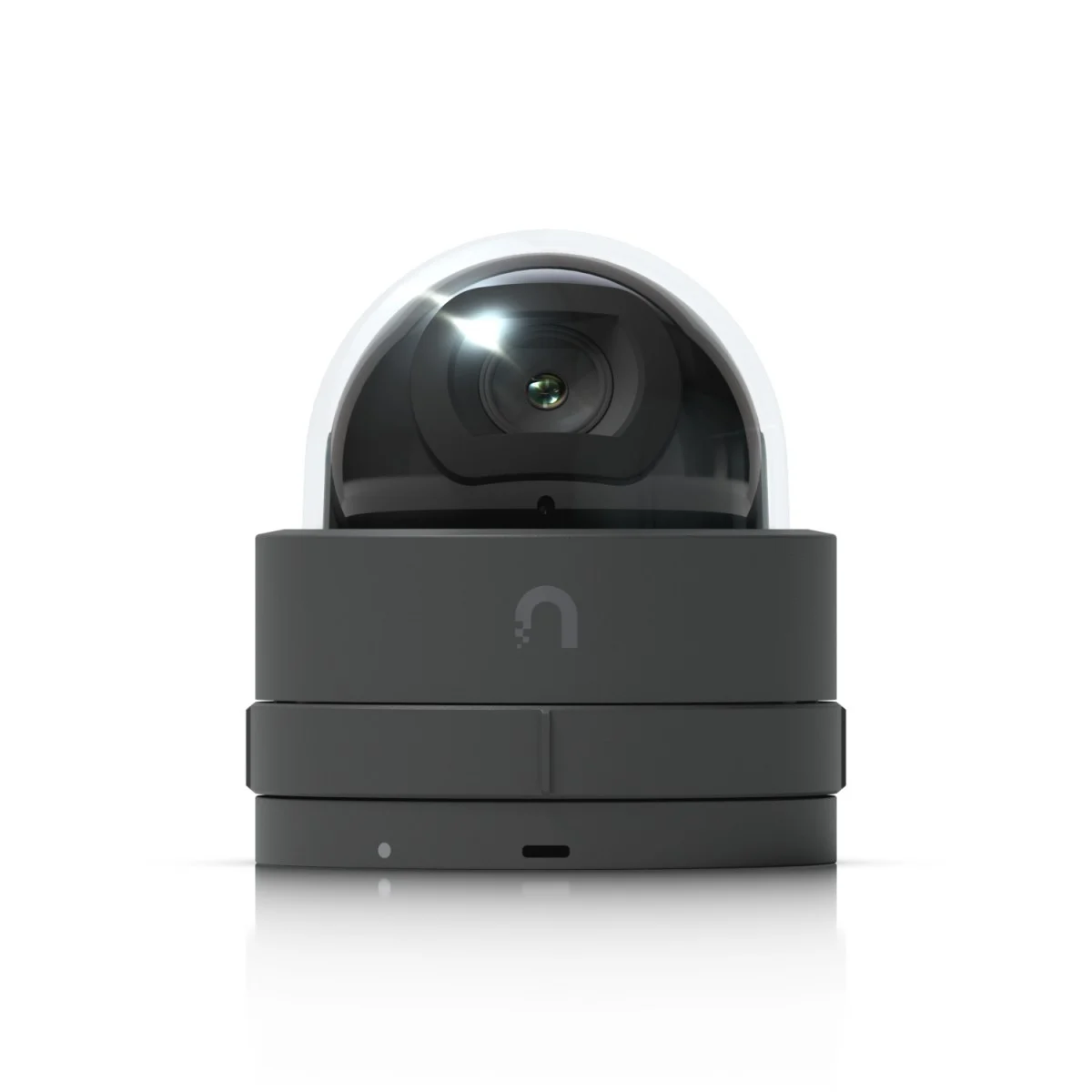

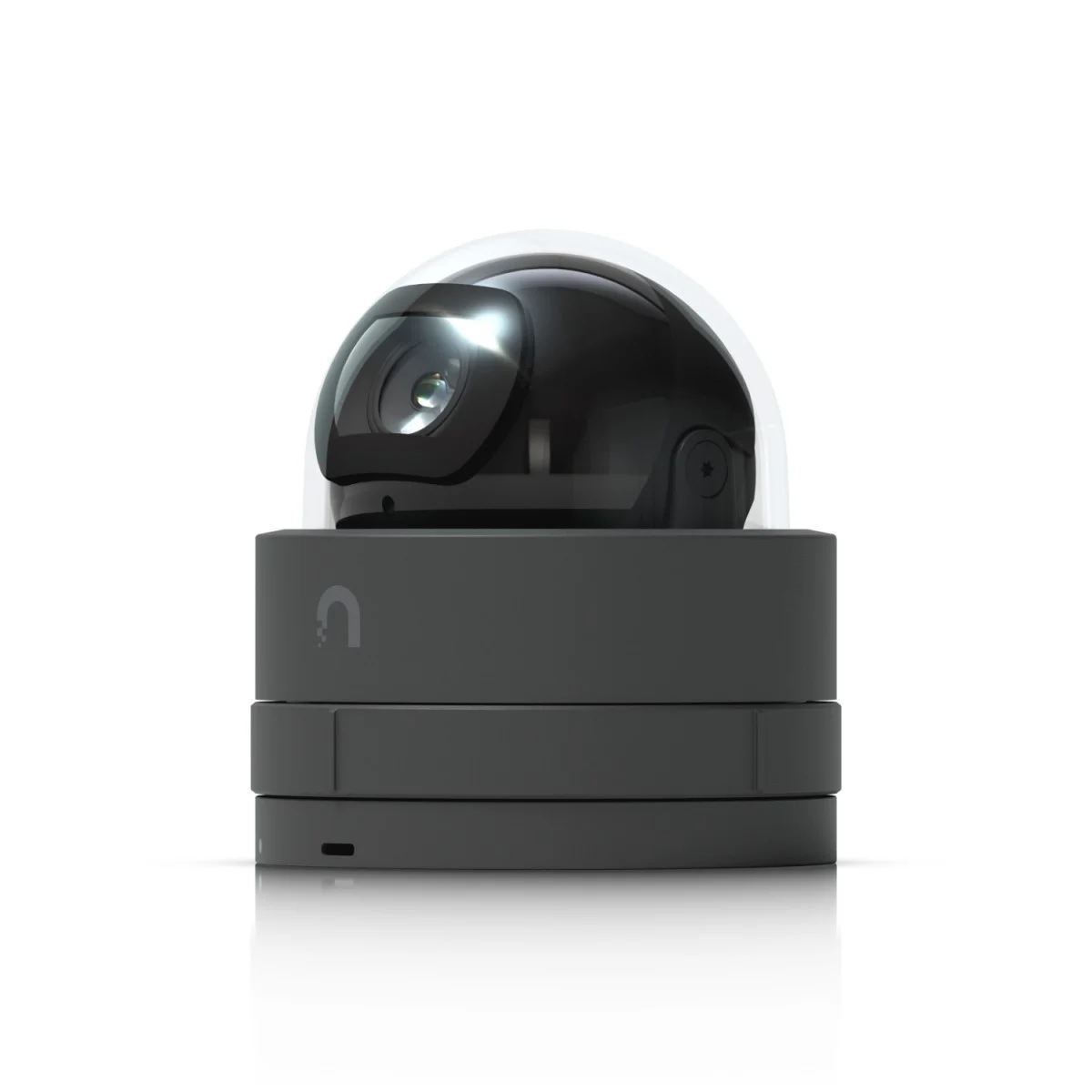

Ubiquiti UVC-G5-Dome-Ultra-B Camera

Ubiquiti UVC-G5-Dome-Ultra-B Camera G5 Dome Ultra Black

The Ubiquiti UVC-G5-Dome-Ultra-B Camera is an ultra-compact 2K Power over Ethernet dome camera for low-profile indoor security. Its black housing blends into dark ceilings and modern interiors. Moreover, the camera combines a wide viewing angle, infrared night vision, smart detections, and an IK06 tamper-resistant design. It suits offices, shops, hotels, reception areas, and other managed indoor spaces.

Product Overview

The G5 Dome Ultra records 4MP video at up to 30 frames per second. Therefore, it captures clear footage for live monitoring and recorded review. Its fixed lens provides a 102.4-degree horizontal view, while the diagonal field of view reaches 120.6 degrees.

Built-in infrared illumination provides night vision up to 20 metres. In addition, smart detection supports people, vehicles, and animals. The camera runs through UniFi Protect, which provides central management for live feeds, recordings, alerts, and device settings.

Power over Ethernet supplies power and network data through one cable. Consequently, installers can reduce cable clutter and simplify deployment. The camera includes a standard surface mount. However, optional accessories support junction box and flush-mounted installations.

Key Features

• 2K video resolution: Captures 4MP video at 2688 × 1512 pixels, providing useful detail for indoor monitoring.
• Wide viewing angle: Offers a 102.4-degree horizontal view, helping one camera cover a broad area.
• Infrared night vision: Provides visibility up to 20 metres in dark indoor environments.
• Smart detections: Identifies people, vehicles, and animals to support more relevant event alerts.
• Power over Ethernet: Carries power and data through one Ethernet cable for a cleaner installation.
• IK06 tamper resistance: The compact housing withstands moderate physical impact in accessible locations.
• Low power use: Consumes up to 4.2W, making it suitable for efficient multi-camera installations.
• Flexible mounting: Supports the included surface mount plus optional junction box and Ultra Flush Mount accessories.
• Compact black housing: Fits discreetly into dark ceilings, walls, and modern commercial interiors.

Technical Specifications

• Brand: Ubiquiti
• Model: UVC-G5-Dome-Ultra-B
• Product name: G5 Dome Ultra Black
• Product type: Indoor Power over Ethernet dome camera
• Resolution: 4MP, 2688 × 1512 pixels
• Video format: 16:9
• Maximum frame rate: 30 frames per second
• Image sensor: 1/2.4-inch CMOS
• Lens: Fixed focal length
• Horizontal field of view: 102.4 degrees
• Vertical field of view: 54.9 degrees
• Diagonal field of view: 120.6 degrees
• Night vision: Built-in infrared LED and infrared cut filter
• Infrared distance: 20m
• Smart detections: People, vehicles, and animals
• Network interface: 10/100 MbE RJ45 port
• Power method: Power over Ethernet
• Supported voltage: 37–57V DC
• Maximum power consumption: 4.2W
• Processor: Dual-core Arm Cortex-A7-based chip
• Dimensions: 63.6mm diameter × 68.2mm
• Weight: 175g
• Enclosure material: Aluminium alloy and polycarbonate
• Mount material: Stainless steel
• Tamper resistance: IK06
• Included mounting method: Surface mounting
• Optional mounting: Junction box and Ultra Flush Mount
• Operating temperature: -20°C to 40°C
• Operating humidity: 10% to 90% non-condensing
• Management application: UniFi Protect
• Compliance: NDAA compliant
• Certifications: CE, FCC, and IC
• Colour: Black

Common Applications

The camera suits offices, shops, hotels, schools, apartment common areas, reception desks, and indoor corridors. Its wide view also works well in meeting rooms and customer service areas. Furthermore, the small housing supports discreet placement where a large camera may affect the room’s appearance.

The Ubiquiti UVC-G5-Dome-Ultra-B Camera works especially well in managed UniFi Protect systems. However, installers should confirm recorder capacity, network design, PoE availability, camera position, and storage needs before deployment.

Why Choose This Product?

The G5 Dome Ultra combines clear 2K video with a small, tamper-resistant enclosure. As a result, it provides useful indoor coverage without creating a bulky appearance. Its wide lens can also reduce blind areas when installers position the camera correctly.

Moreover, PoE simplifies cabling, while the 4.2W maximum power use supports efficient installations. Smart detections help administrators focus on useful events. Therefore, the Ubiquiti UVC-G5-Dome-Ultra-B Camera offers a practical solution for professional indoor video security.

Frequently Asked Questions

What video resolution does the camera support?

The camera records 4MP video at 2688 × 1512 pixels in a 16:9 format. It supports up to 30 frames per second. Therefore, it provides smooth 2K footage for live monitoring and recorded review.

Does the G5 Dome Ultra support night vision?

Yes. It includes an infrared LED and an infrared cut filter. These features provide night vision up to 20 metres, although walls, reflective surfaces, camera placement, and environmental conditions can affect the visible result.

Is this camera suitable for outdoor installation?

The manufacturer describes this model as an indoor security camera. Therefore, use it in protected indoor locations within its specified temperature and humidity limits. Choose a model with an official weather-resistance rating for exposed outdoor areas.

How does the camera receive power?

The camera uses Power over Ethernet and supports an input range of 37–57V DC. Consequently, one Ethernet cable carries both network data and electrical power from compatible PoE equipment.

Does it support smart detection?

Yes. The camera supports smart detection for people, vehicles, and animals through UniFi Protect. This feature helps administrators identify relevant events and manage alerts more effectively.

Can installers mount it inside a ceiling?

The included accessory supports surface mounting. However, an optional Ultra Flush Mount allows a lower-profile ceiling installation. An optional junction box accessory is also available for suitable installations.

Which software manages the camera?

UniFi Protect manages the camera, live video, recordings, detection events, and device settings. Therefore, the installation requires a compatible UniFi Protect console or network video recorder.
