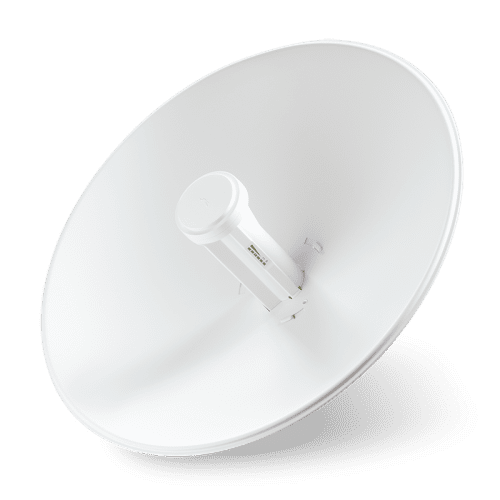

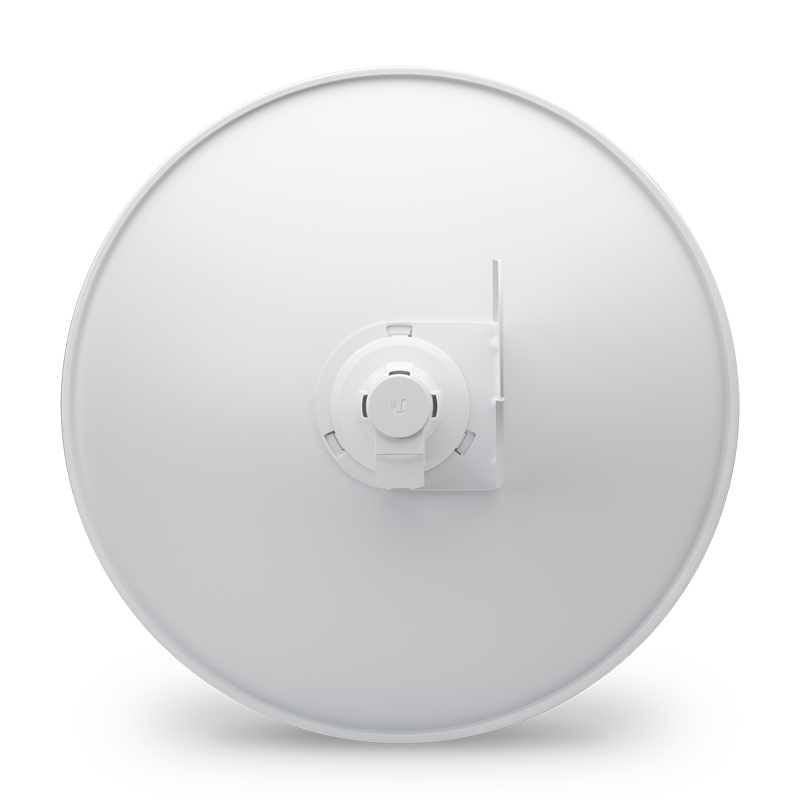

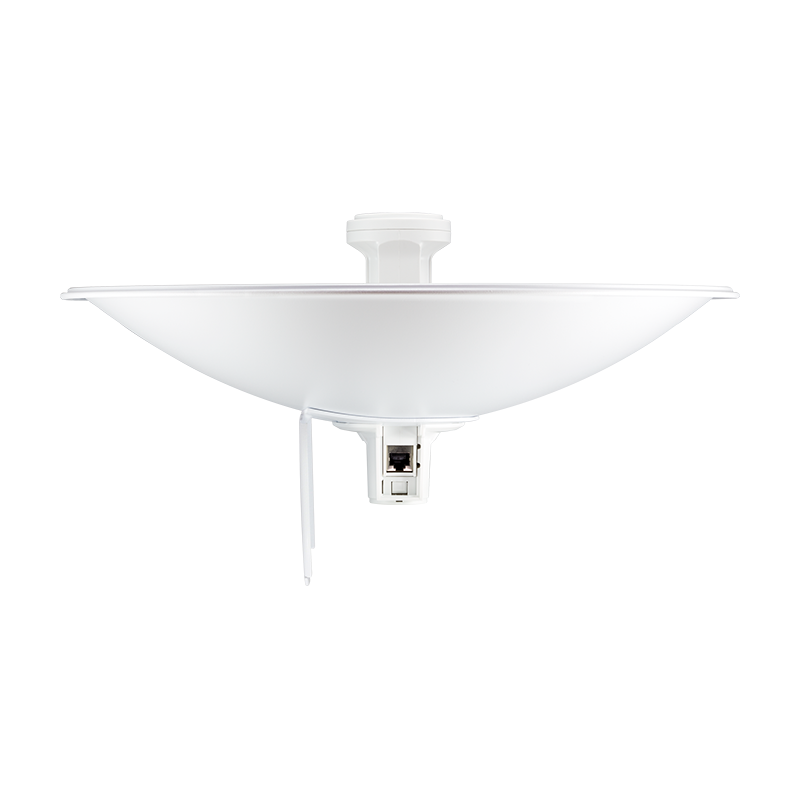

The Ubiquiti PowerBeam M5 400 (PBE-M5-400) airMAX Bridge, presented by Almiria Limited, is a testament to advanced engineering and design, setting a new benchmark for outdoor wireless network performance. This airMAX® PowerBeam bridge is engineered for long-range connectivity, delivering unparalleled performance for high-capacity networks.

With its robust design and superior technology, the PBE-M5-400 emerges as the ideal solution for outdoor wireless required by ISPs, enterprises, and surveillance applications.

Features of Ubiquiti PowerBeam M5 400 PBE-M5-400

• Exceptional Long-Range Link: With a 25+ km link range and 25 dBi gain, the PowerBeam M5 400 ensures reliable connectivity even in the most demanding environments, making it perfect for connecting remote locations.
• High Throughput: Achieve 150+ Mbps real TCP/IP throughput, facilitating high-speed internet access, video streaming, and data transfer over long distances.
• Improved Mounting and Installation: The device comes with an all-in-one design and an improved mounting kit, simplifying the installation process and making it more user-friendly.
• Superior Noise Immunity: Featuring Ubiquiti’s advanced airMAX technology and inner feed design, the PowerBeam M5 400 significantly reduces noise interference, ensuring clear and reliable wireless signals.
• Integrated airMAX Technology: Benefit from intelligent QoS, scalability, and network management, allowing for efficient allocation of bandwidth to multiple clients and enhancing network performance.

Technical Specifications:

The Ubiquiti PowerBeam M5 400 PBE-M5-400 comes with below specifications

• Dimensions and Build: The device measures 420 x 420 x 275 mm, crafted from UV-stabilized plastic to withstand harsh outdoor conditions. It weighs 1.8 kg, designed for easy deployment.
• Powerful Hardware: Includes a Gigabit Ethernet port, Atheros MIPS 74KC processor at 560 MHz, and is equipped with 64 MB DDR2 memory and 8 MB flash storage.
• Energy Efficient: Comes with a 24V, 0.5A gigabit PoE adapter, supporting passive PoE power supply while maintaining a maximum power consumption of only 8W.
• Robust Environmental Resistance: Certified to operate in temperatures ranging from -40 to 70° C and up to 95% non-condensing humidity, ensuring reliability in diverse weather conditions.
• Comprehensive Protection: Features air and contact ESD/EMP protection up to ± 24 kV, along with certifications for wind survivability up to 200 km/h and rigorous salt fog, vibration, temperature shock, and UV tests.

Advantages:

• Plug and Play Installation: Simplifies the setup process with its integrated design, eliminating the need for complex cabling and allowing for a quick and secure deployment.
• Customizable Signal Strength: Signal strength LEDs are software-adjustable, providing custom RSSI levels for precise signal monitoring and optimization.
• Enhanced Connectivity: Supports a wide range of operating frequencies, offering flexibility for various network configurations and compliance with global standards.

Elevate Your Connectivity

The Ubiquiti PowerBeam M5 400 PBE-M5-400 is more than just a bridge; it’s a comprehensive solution designed to enhance your network’s reach, reliability, and performance. Whether you’re extending internet access to remote locations, setting up a surveillance network, or building a high-capacity outdoor wireless network, the PBE-M5-400 stands ready to meet your challenges head-on.

Experience the difference in outdoor wireless networking with Ubiquiti’s PowerBeam M5 400 – where innovation meets performance.

Ideal Applications in Kenya

• 🌐 Rural Internet Service Provision (ISP backhaul)

• 🎥 Long-range IP surveillance links

• 🏢 Enterprise building-to-building bridge

• 🛰️ Remote location connectivity for agriculture, mining, or research stations

FAQs – Ubiquiti PBE-M5-400 airMAX Bridge

Q: What is the maximum range of the PBE-M5-400?
✅ Up to 25+ km with proper line-of-sight and alignment.

Q: Does it support plug-and-play installation?
✅ Yes, with built-in alignment tools and software-configurable LEDs.

Q: Can I use it in harsh environments?
✅ Absolutely. It’s built to withstand wind speeds up to 200 km/h and temperatures from -40°C to 70°C.
