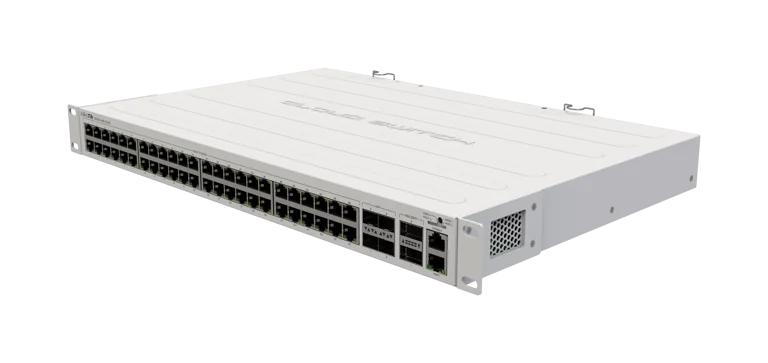

MikroTik CRS354-48G-4S+2Q+RM Network Switch

MikroTik CRS354-48G-4S+2Q+RM Network Switch L2 Gigabit Ethernet.

The MikroTik CRS354-48G-4S+2Q+RM Network Switch is a high-density Layer 2 managed switch designed for enterprise networks, data centers, internet service providers, and large-scale business environments. Equipped with 48 Gigabit Ethernet ports, four 10G SFP+ uplinks, and two 40G QSFP+ ports, it delivers exceptional flexibility and performance. Therefore, organizations can build scalable network infrastructures while maintaining excellent value and long-term investment protection.

Product Overview

As network demands continue to increase, businesses require switching solutions that can support higher bandwidth and more connected devices. The MikroTik CRS354-48G-4S+2Q+RM Network Switch addresses these requirements by combining extensive port density with high-speed uplink options in a single rackmount platform.

In addition, this managed switch provides a cost-effective way to introduce 10G and 40G connectivity into existing network environments. Consequently, administrators can upgrade network capacity without replacing their entire infrastructure.

The switch runs MikroTik RouterOS with License Level 5, offering advanced management and monitoring capabilities. Moreover, it supports efficient traffic handling for demanding enterprise applications, cloud services, virtualization environments, and storage networks.

With a non-blocking throughput of 168 Gbps and a switching capacity of 336 Gbps, this networking solution is engineered to handle large amounts of traffic without compromising performance. As a result, users benefit from stable and reliable connectivity even during peak operating periods.

Key Features

• 48 Gigabit Ethernet ports for high-density network connectivity.
• 4 dedicated 10G SFP+ ports for high-speed fiber uplinks.
• 2 QSFP+ 40G ports for backbone and aggregation connections.
• Layer 2 managed switching for enhanced network control.
• 336 Gbps switching capacity for demanding enterprise workloads.
• 168 Gbps non-blocking throughput to reduce congestion.
• 235 Mpps forwarding rate for efficient packet processing.
• RouterOS License Level 5 for advanced management features.
• Rackmount form factor for professional deployments.
• Support for fiber and copper networking environments.

Technical Specifications

• Brand: MikroTik
• Model: CRS354-48G-4S+2Q+RM
• Product Type: Managed Layer 2 Switch
• Operating System: RouterOS License Level 5
• RJ45 Gigabit Ports: 48 × 10/100/1000 Ethernet
• SFP+ Ports: 4 × 10G SFP+
• QSFP+ Ports: 2 × 40G QSFP+
• Console Port: RJ45
• Processor Frequency: 650 MHz
• Memory: 64 MB RAM
• Flash Memory: 16 MB
• Switching Capacity: 336 Gbps
• Forwarding Rate: 235 Mpps
• Non-Blocking Throughput: 168 Gbps
• Power Consumption: Maximum 60W
• Input Voltage: 100–240V AC
• Rack Mountable: Yes
• Color: Grey
• Certifications: CE/RED, EAC, RoHS
• Protection Rating: IPX0
• Operating Temperature: -20°C to 60°C
• Dimensions: 443 × 297 × 44 mm
• Included Accessories: Rack Mount Kit and AC Power Cable

Why Choose the MikroTik CRS354-48G-4S+2Q+RM Network Switch?

The MikroTik CRS354-48G-4S+2Q+RM Network Switch is designed for organizations that need extensive connectivity and high-speed uplinks within a single device. Therefore, it is an excellent solution for growing businesses, service providers, and enterprise environments.

In addition, the combination of 48 Gigabit ports, four 10G SFP+ interfaces, and two 40G QSFP+ ports provides exceptional deployment flexibility. Moreover, the advanced switching architecture ensures reliable performance when handling large amounts of network traffic.

The rackmount design simplifies installation in data centers and communications rooms. As a result, administrators can efficiently organize network infrastructure while maintaining easy access for maintenance and future upgrades.

Furthermore, RouterOS management features provide enhanced visibility and control across the network. Consequently, organizations can optimize traffic flow, improve reliability, and support future expansion with confidence.

The CRS354 series represents an outstanding balance between performance, scalability, and cost efficiency. Therefore, it remains one of the most attractive high-density switching solutions for modern enterprise and service provider networks.
