LW-PT-LCA-MM – FIBER PIGTAIL, LC APC, MM, 2M

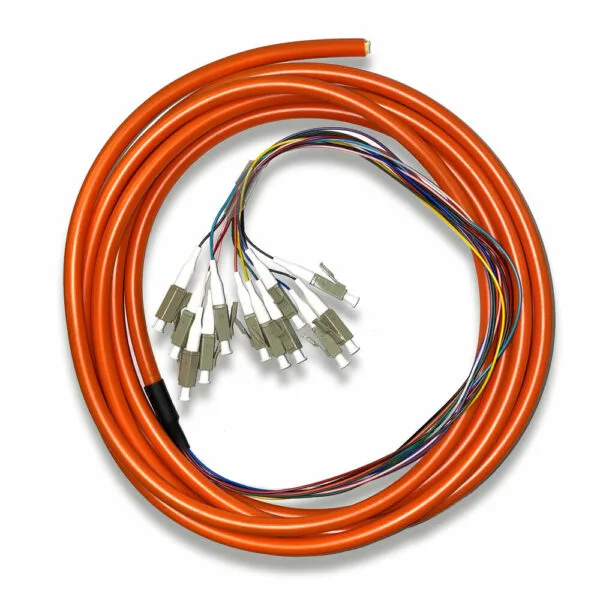

LW-PT-LCA-MM Fiber Pigtail

The LW-PT-LCA-MM Fiber Pigtail is a reliable multimode fiber termination solution designed for data centers, enterprise networks, campus environments, and structured cabling installations. Featuring an LC APC connector and a 2-meter cable length, it supports efficient fiber splicing and dependable signal transmission. Moreover, its compact construction and low-loss performance make it suitable for professional networking projects that require stable optical connectivity.

Product Overview

Designed for multimode fiber applications, this LC APC fiber pigtail helps create secure optical connections for high-speed network environments. As a result, it supports consistent data transmission across enterprise LANs, data centers, and campus network infrastructures. Its precision connector design helps maintain signal quality while reducing unwanted reflections.

In addition, the multimode fiber pigtail is manufactured using OM3 50/125μm fiber, making it suitable for high-bandwidth communication systems. Therefore, it supports modern networking applications that depend on reliable and efficient data transfer. The 2-meter cable length provides flexibility during installation while simplifying routing within fiber management systems.

The LSZH jacket enhances safety by reducing smoke and halogen emissions in enclosed environments. Furthermore, the durable construction helps ensure long-term performance in professional installations. Consequently, technicians can deploy the pigtail confidently across a wide range of networking projects.

Key Features

The main benefits of this fiber pigtail include:

• LC APC connector helps minimize signal reflections
• OM3 multimode fiber supports high-speed data transmission
• 2-meter cable length allows flexible installation options
• Low insertion loss below 0.2 dB supports signal efficiency
• Return loss greater than 35 dB improves optical performance
• LSZH jacket enhances safety for indoor deployments
• Ceramic ferrule provides precise fiber alignment
• Compatible with fusion splicing applications
• Supports operation at 850nm and 1300nm wavelengths
• Suitable for data centers, enterprise LANs, and campus networks
• Color-coded design simplifies fiber identification

Technical Specifications

• Brand: Lightwave
• Model: LW-PT-LCA-MM
• Product Type: Fiber Pigtail
• Connector Type: LC APC
• Fiber Type: OM3 Multimode 50/125μm
• Cable Length: 2 Meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fiber Diameter: 0.9mm
• Insertion Loss: <0.2 dB
• Return Loss: >35 dB
• Supported Wavelengths: 850nm / 1300nm
• Modal Bandwidth: 2000 MHz·km at 850nm
• Tensile Strength: Up to 7kg
• Minimum Bend Radius: 15mm
• Operating Temperature: -40°C to +75°C
• Humidity Tolerance: Up to 95%
• Compliance Standards: IEC 61754-20, RoHS
• Mating Cycles: 500
• Focus Product: LW-PT-LCA-MM Fiber Pigtail
• Warranty: 2-Year Manufacturer Warranty

Why Choose This Fiber Pigtail?

Reliable fiber terminations help maintain network efficiency and performance. Therefore, selecting a quality multimode pigtail is important for achieving stable optical connections. The LW-PT-LCA-MM Fiber Pigtail combines dependable construction, precision connectivity, and installation flexibility in a compact design.

Moreover, the multimode optical pigtail supports low-loss splicing for enterprise networking, campus connectivity, and data center applications. In addition, its LC APC connector helps improve signal quality while the LSZH jacket supports safer indoor installations. As a result, organizations benefit from reliable connectivity and easier fiber management.

Key Advantages

• Supports high-speed multimode networking
• Helps reduce optical signal loss
• Simplifies fiber splicing and deployment
• Compatible with patch panels and distribution frames
• Suitable for enterprise and campus environments
• Built for long-term professional use

Final Recap & Call-to-Action

The LW-PT-LCA-MM Fiber Pigtail delivers dependable multimode connectivity, low insertion loss, and professional-grade construction for modern fiber networks. Furthermore, its LC APC connector and OM3 fiber design support efficient data transmission in demanding environments. Contact us for additional information or add this fiber pigtail to your cart today.
