LBE-5AC-Gen2 – Ubiquiti airMAX LiteBeam Gen 2 5AC 5GHz 23dBi CPE

The LBE-5AC-Gen2 – Ubiquiti airMAX LiteBeam Gen 2 5AC 5GHz 23dBi CPE is part of the Ubiquiti Networks airMAX category of products. Featuring instant accessibility to airOS interface via the UMobile app.

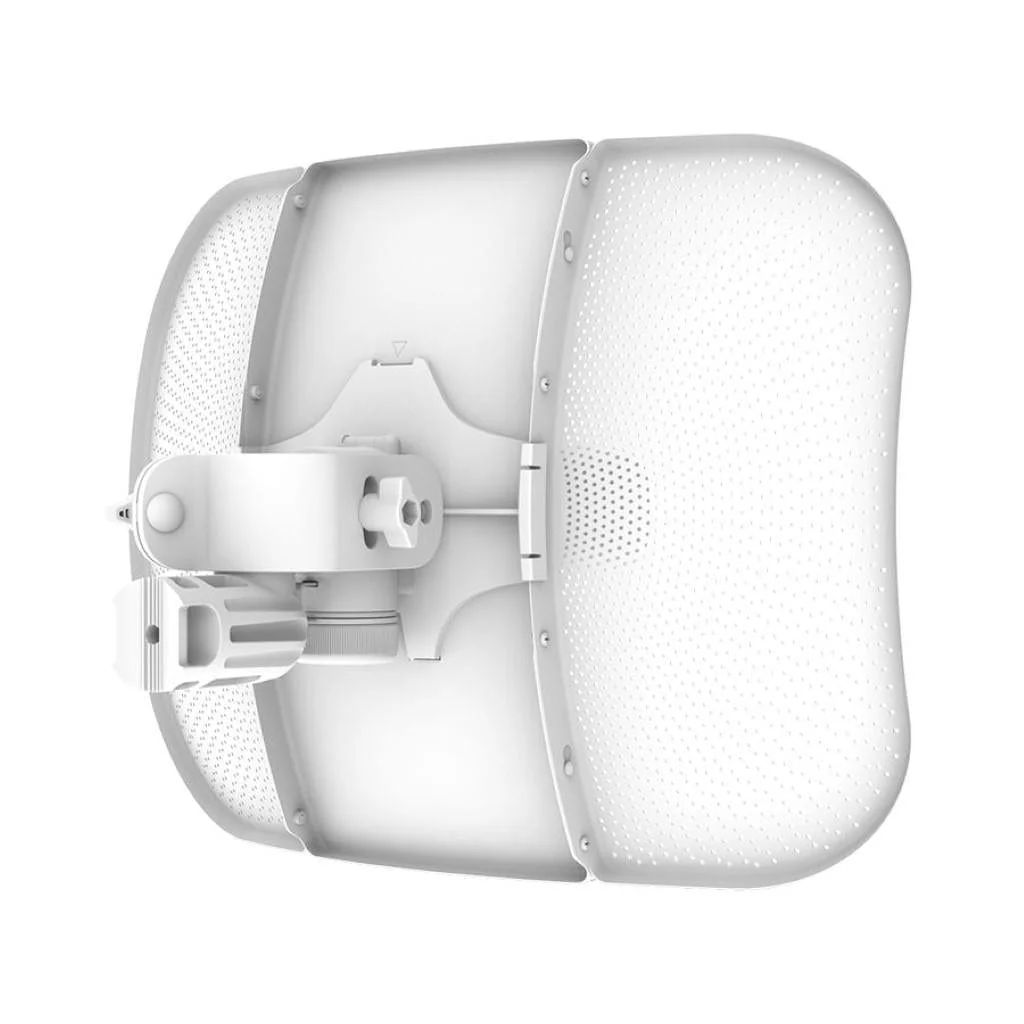

LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment.

Product Specifications
• Dimensions: 358 x 271.95 x 272.5mm (14.09 x 10.71 x 10.73″)
• Weight:
Without Mount: 800g (1.76lbs)
With Mount: 980g (2.16lbs)
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)
• Max. Power Consumption: 7W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 24V±10%
• Operating Frequency: 2412 – 2462MHz / 5150 – 5875MHz
• Gain: 23dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64 MB DDR2
• LEDs: Power, Ethernet
• Channel Sizes:
PtP Mode: 10/20/30/40/50/60/80MHz
PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
• Mounting: Pole-Mounting Kit (Included)
• Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: ±24kV Contact / Air
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

Product Includes:
• (1) Antenna Feed
• (1) Central Reflector Panel
• (2) Side Reflector Panels
• (1) Feed Receiver
• (1) Azimuth Mount
• (1) Elevation Mount
• (1) Metal Strap
• (1) Knob Kit
• (1) Gigabit PoE (24V, 0.3A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
