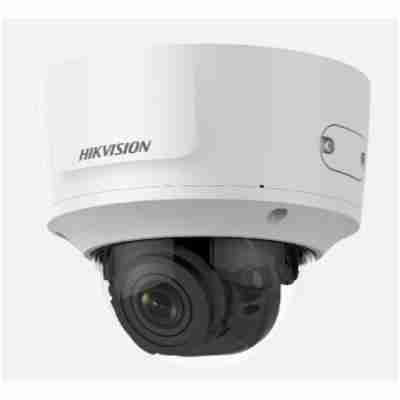

Hikvision DS-2CD3D46G2T-IZHS (8-32mm) IP dome camera

The Hikvision DS-2CD3D46G2T-IZHS (8-32mm) IP dome camera is a high-end surveillance camera designed for outdoor use. It features a 4K resolution sensor, which allows it to capture high-quality video footage with excellent detail and clarity.

One of the key features of this camera is its adjustable focal length lens, which ranges from 8mm to 32mm, allowing users to adjust the zoom to capture images of varying distances. It also features a motorized zoom and focus function, which can be remotely controlled via the camera’s web interface or Hikvision’s software.

The camera is also equipped with a range of advanced features, including high dynamic range (HDR) technology, 3D digital noise reduction, and smart video content analysis. These features help to enhance the camera’s performance in challenging lighting conditions and improve its ability to detect and capture relevant events.

Other features of the Hikvision DS-2CD3D46G2T-IZHS (8-32mm) IP dome camera include a built-in microSD card slot for local storage, support for H.265+ video compression to reduce bandwidth usage and storage requirements, and compatibility with Hikvision’s range of NVRs and other surveillance products.

Overall, this camera is an excellent choice for anyone looking for a high-quality, versatile surveillance camera that can be used in a wide range of outdoor environments. Its advanced features and adjustable focal length lens make it a great choice for applications such as perimeter security, parking lot surveillance, and general outdoor monitoring.

Specifications

Camera:

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Minimum Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Lens: 8mm to 32mm focal length, motorized zoom and focus
• Field of View: Horizontal field of view: 47° to 114°, vertical field of view: 26.5° to 64°, diagonal field of view: 55.5° to 141°
• Day/Night: IR cut filter with auto switch
• Digital Noise Reduction: 3D DNR
• WDR: 120 dB
• Smart Feature-set: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Video:

• Max. Resolution: 3840 × 2160
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Smart Codec: Support H.265+/H.265/H.264+/H.264/MJPEG
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Network:

• Network Storage: NAS (NFS, SMB/CIFS), ANR
• Alarm Trigger: Motion detection, video tampering alarm, illegal login
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Security: User authentication, watermark, IP address filtering
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Operating Conditions: -40°C to 60°C (-40°F to 140°F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 20%, PoE (802.3at, class 4)
• Power Consumption: Max. 13.5 W
• Protection Level: IP67, IK10
• Dimensions: Φ164.7 × 301.2 mm (Φ6.48″ × 11.86″)
• Weight: Approx. 4.5 kg (9.92 lb)
