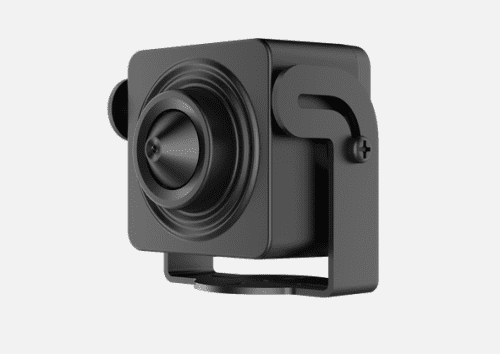

Hikvision DS-2CD2D25G1-D/NF (3.7mm) Covert Network Camera

The Hikvision DS-2CD2D25G1-D/NF (3.7mm) Covert Network Camera is a surveillance camera that is designed to be discreet and blend in with its surroundings. It features a 3.7mm fixed lens and is capable of capturing high-resolution video in both daylight and low-light conditions.

This camera is a part of Hikvision’s EasyIP 4.0 product line and is equipped with advanced features such as smart analytics, intrusion detection, and line crossing detection. It also supports H.265+ video compression technology, which helps to reduce bandwidth and storage requirements without compromising on image quality.

The DS-2CD2D25G1-D/NF is designed for indoor use and is ideal for use in retail stores, banks, and other locations where discreet surveillance is required. It can be mounted on walls or ceilings and is compatible with Hikvision’s range of NVRs (Network Video Recorders) and VMS (Video Management Software) platforms.

Specifications:

• Image sensor: 1/2.7″ Progressive Scan CMOS
• Resolution: 1920 x 1080
• Lens: 3.7mm fixed focal length lens
• Field of view: 80.9° (horizontal), 44.3° (vertical), 92.8° (diagonal)
• Minimum illumination: Color: 0.005 Lux @(F1.2, AGC ON), B/W: 0.0005 Lux @(F1.2, AGC ON)
• Day/Night switch: IR cut filter with auto switch
• Shutter time: 1/3 s to 1/100,000 s
• Frame rate: 25fps/30fps (1080p)
• Video compression: H.264+/H.264/MJPEG
• Audio compression: G.711/G.722.1/G.726/MP2L2
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Storage: MicroSD/SDHC/SDXC card slot, up to 128GB
• Power supply: 12V DC ± 25%, PoE (802.3af Class3)
• Power consumption: Max. 4.8W
• Operating conditions: -30°C to 60°C (-22°F to 140°F), Humidity 95% or less (non-condensing)
• Ingress protection: IP67
• Dimensions: Camera: Ø 80mm × 29.1mm (3.15″ × 1.15″), Base: Ø 61.6mm × 22mm (2.43″ × 0.87″)
• Weight: Camera: Approx. 0.35 kg (0.77 lb.), Base: Approx. 0.05 kg (0.11 lb.)

This camera also supports various advanced features, such as WDR (Wide Dynamic Range), 3D DNR (Digital Noise Reduction), BLC (Backlight Compensation), and HLC (Highlight Compensation), to provide clear and high-quality images even in challenging lighting conditions. Additionally, it has built-in IR LEDs with a range of up to 10 meters (33 feet) for night vision.
