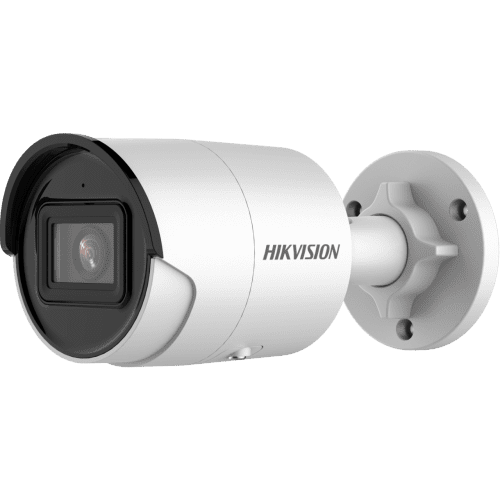

Hikvision DS-2CD2026G2-I 2MP AcuSense Fixed Mini Bullet Camera

DS-2CD2026G2-I (4mm) is a model of a high-definition network camera manufactured by Hikvision, a company that specializes in video surveillance products and solutions.

The camera features a 4mm lens and has a maximum resolution of 1920×1080 (2 megapixels). It is designed for outdoor use with its IP67-rated weatherproof housing, and has infrared (IR) LEDs for night vision with a range of up to 100 feet (30 meters).

Some of the other key features of the DS-2CD2026G2-I (4mm) include:

• H.265+ video compression for efficient storage and bandwidth usage
• Built-in microSD/SDHC/SDXC card slot for on-board storage
• Two-way audio with a built-in microphone and speaker
• Power over Ethernet (PoE) for easy installation and setup
• Smart detection features such as intrusion detection, line crossing detection, and face detection
• Compatibility with Hikvision’s iVMS-4200 video management software and the Hik-Connect mobile app for remote viewing and control.

Overall, the DS-2CD2026G2-I (4mm) is a high-performance network camera that is well-suited for a range of outdoor surveillance applications.

Specifications

Camera:

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Minimum Illumination: Color: 0.008 Lux @ (F1.6, AGC ON), 0.014 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Lens: 4 mm, horizontal field of view: 83°, vertical field of view: 45°, diagonal field of view: 98°
• Lens Mount: M12
• Day & Night: IR cut filter
• DNR: 3D DNR
• WDR: 120 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Compression Standard: H.265+/H.265/H.264+/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• Audio: Built-in microphone and speaker; supports two-way audio with echo cancellation
• Alarm Trigger: Motion detection, video tampering detection, intrusion detection, line crossing detection, face detection
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• On-board Storage: Built-in microSD/SDHC/SDXC card slot, up to 256 GB
• Operating Conditions: -30°C to 60°C (-22°F to 140°F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption and Current: 12 VDC, 0.6 A, max. 7.2 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.7 W
• IR Range: Up to 30 m (98 ft)
• Protection Level: IP67
• Material: Metal
• Dimensions: Camera: Ø 70 mm × 155.03 mm (Ø 2.76″ × 6.1″), package: 216 mm × 121 mm × 118 mm (8.5″ × 4.76″ × 4.65″)
• Weight: Camera: approx. 530 g (1.17 lb.), package: approx. 760 g (1.67 lb.)

The AcuSense technology in this camera enables it to accurately distinguish between people and vehicles, reducing false alarms and improving efficiency in detecting potential threats. It also features a variety of intelligent detection functions and is compatible with Hikvision’s video management software and mobile app for remote viewing and control.
