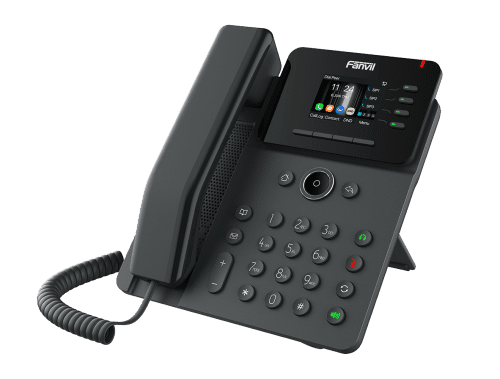

Fanvil V61W Wireless Prime Business Phone

Specifications

General Features:

• Display: 2.4-inch (320×240) color screen

• SIP Lines: 4

• HD Voice: Yes

• Ports: Dual Gigabit, PoE enabled

• Modes: Handset, hands-free, headset

• Mounting: Desktop stand / Wall-mounted (optional)

• Power: Optional external power supply, PoE

• Security: Handset with Hall-effect Sensor Switch

Phone Features:

• Phonebook: Local (1000 entries), Remote (XML/LDAP)

• Call Logs: 1000 entries (In/out/missed)

• Lists: Blocked List/Allowed List

• Connectivity: Built-in Wi-Fi 6 (2.4GHz/5GHz), Bluetooth 5.4

• Headset Support: Poly (APD-80 EHS Cable), Jabra (EHS20 EHS Cable)

• Additional Features: Voice Message Waiting Indication, DSS/Soft keys, Action URL/Active URI, SIP Hotspot, Dial Plan, Multicast, 6-way Audio Conference

Call Features:

• Call Out / Answer / Reject / Hold / Resume

• Call Waiting, Caller ID Display, Speed Dial

• Call Forwarding (Always/Busy/No Answer)

• Call Transfer (Attended/Unattended), BLF

• Call Parking/Pick-up (Server dependent), Do-Not-Disturb

• Auto-Answering, Voice Message (With server), Hot Line

• Hot Desking, Call Back, IP Direct Dial

Audio Specifications:

• Microphone/Speaker: HD Voice, 0 ~ 7KHz Frequency Response

• Codec Support:

  • Narrowband: G.711a/u, G.723.1, G.726, G.729 (A, B, AB), iLBC

  • Wideband: G.722, Opus

• Noise Control: Echo Canceller (AEC), VAD, CNG, BNE, NR, AGC

• Packet Loss Concealment: Supported

• DTMF Support: In-band, Out-of-Band (RFC2833/SIP INFO)

Network & Protocols:

• Ethernet: 10/100/1000 Mbps, Dual bridged port for PC bypass

• IP Mode: IPv4/IPv6

• Security: VPN (L2TP/OpenVPN), VLAN, 802.1x, QoS

• Wi-Fi Security: WPA/WPA2-PSK/802.X EAP

• Protocols: SIP 2.0, RTP/RTCP/SRTP, STUN, DHCP, HTTP/HTTPS, TR-069, AES128 & AES256

Deployment & Management:

• Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

• Management: Web Management Portal, Web-based Packet Dump, Syslog

Physical Specifications:

• Keypad: 35 keys (DSS keys, function keys, soft-keys, navigation keys, volume control, hands-free key)

• Ports:

  • RJ9 x2 (Handset, Headset)

  • RJ45 x2 (Network, PC Bridged)

  • Security Slot

• Power: DC 5V/1A or PoE

• Power Consumption:

  • Adapter: 1.3 ~ 4.36 W

  • PoE: 2.1 ~ 6.7 W

• Installation: Desktop Stand (40°/45°) / Wall-mounted

• Dimensions:

  • Desktop Stand (40°): 191.8 x 164.5 x 174.2 mm

  • Desktop Stand (45°): 191.8 x 154.5 x 181.9 mm

  • Wall-mounted: 191.8 x 91.6 x 215.6 mm

• Weight (CTN of 10 pcs):

  • Net: 9.60 kg

  • Gross: 10.35 kg

For more details, visit: Fanvil Official Website
