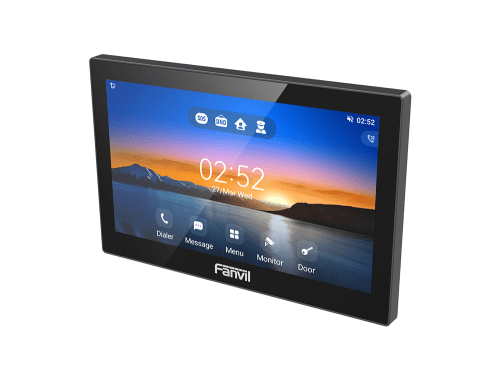

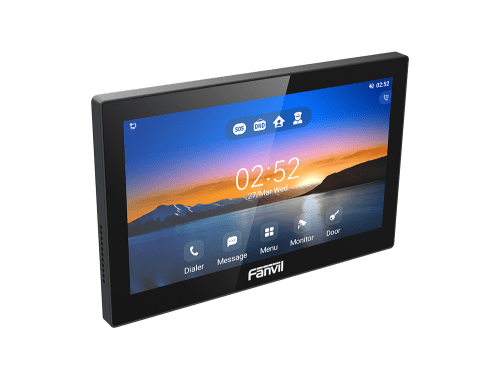

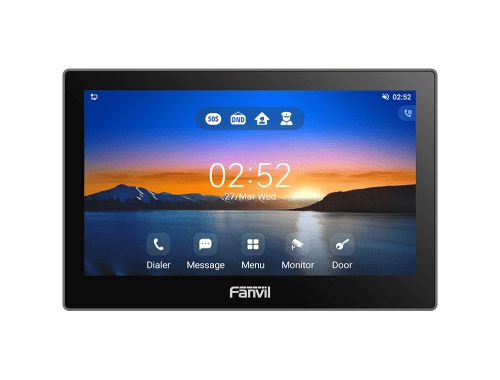

Fanvil i505W Android SIP Indoor Station

Fanvil i505W Android SIP Indoor Station

The Fanvil i505W Android SIP Indoor Station is a sleek wall-mounted touchscreen unit that brings together video intercom, access control, and smart home integration on one Android-powered device. With a 7-inch color capacitive touch screen (1024×600), it gives residents and staff an intuitive interface for viewing visitors, answering door calls, and controlling entry—all from a single indoor station.

Running on Android 9.0, the i505WS integrates smoothly with third-party apps and building systems, making it ideal for residential communities, villas, office buildings, and commercial spaces. It supports SIP-based two-way intercom, real-time video from door phones and IP cameras, and one-touch remote door opening, turning the station into a central hub for daily security and communication.

With built-in dual-band Wi-Fi (2.4/5GHz), PoE support, and a 10/100 Mbps Ethernet port, the i505WS offers flexible installation without extra wiring. Multiple alarm inputs, a relay output, and doorbell input allow connection to sensors and access devices, enabling features like intrusion alarms, panic buttons, and secure door release. HD audio with wideband codecs and a 2W speaker ensures clear conversations during intercom calls.

Supporting up to 2 SIP lines and advanced audio/video codecs including G.722, Opus, H.264 and optional H.265, this indoor station integrates with leading IP PBXs and intercom platforms for reliable, standards-based deployments. Whether you’re upgrading an apartment block, securing a gated villa, or modernizing an office reception, the i505WS delivers a professional, user-friendly experience that improves both safety and convenience.

Key Features

• 7-inch color capacitive touch screen (1024×600) for clear live video and easy navigation.

• Android 9.0 OS with support for third-party apps and customization of industry applications.

• SIP 2.0 support (up to 2 SIP lines) for standards-based VoIP intercom and integration with common IP PBXs.

• Two-way audio and video intercom with remote door unlocking for secure visitor management.

• Built-in dual-band Wi-Fi (2.4/5GHz) and PoE for flexible network connectivity and simple installations.

• 8 alarm inputs, relay output, and doorbell input for connecting sensors, alarms, and door strikes.

• HD audio with G.722 and Opus plus 2W speaker and AEC for clear, full-duplex conversations

• Video decoding up to 1080p with H.264/H.265 (optional) for sharp, smooth video from door phones and cameras.

• Wall-mount design with compact ABS body, ideal for apartments, corridors, lobbies, and offices.

Technical Highlights

• Display: 7″ color touchscreen, 1024×600 resolution.

• Operating System: Android 9.0.

• Network: 1 × 10/100 Mbps Ethernet with PoE 802.3af.

• Wi-Fi: 2.4 GHz / 5 GHz dual-band wireless

• Audio Codecs: G.711A/U, G.729AB, iLBC, G.722, Opus; full-duplex hands-free with AEC

• Video: H.264 and optional H.265 decoding; up to 1080p video call resolution.

• Interfaces: 8 alarm inputs, 1 short-circuit output, 1 doorbell input, 1 RS-485 (reserved), 1 embedded relay.

• Power: 12V/1A DC or PoE; low power consumption design.

• Environment: Operating –10°C to 45/50°C; humidity 10–90% non-condensing.
