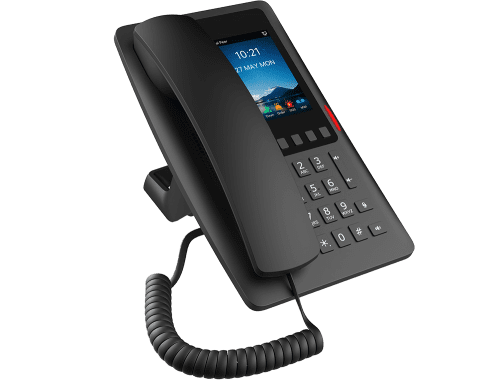

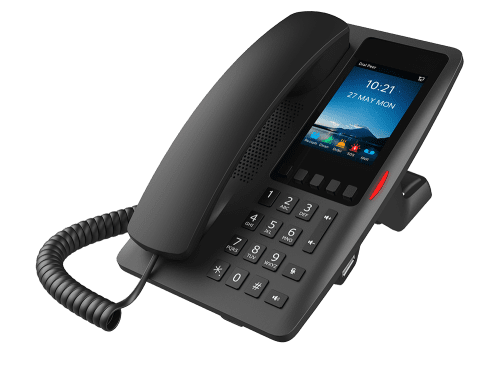

Fanvil H6W Hotel Wireless IP Phone Black

Fanvil H6W Hotel Wireless IP Phone Black

The Fanvil H6W Hotel Wireless IP Phone Black provides enhanced communication capabilities and a modern design, making it perfect for hotels aiming to incorporate advanced features and reliable connectivity into their guest services. Fanvil H6W is a cost-effective Wi-Fi IP phone with multiple functions and an elegant appearance. It is equipped with 5 programmable soft keys for the services hotline, catering to diverse hotel scenarios. H6W has built-in dual-band 2.4GHz & 5GHz Wi-Fi (Wi-Fi 6), ensuring seamless connectivity. Additionally, it features HD voice, 10/100Mbps Ethernet, and PoE, enhancing the overall user experience while reducing hotel deployment costs. Beyond hotel settings, the H6W is also suitable for use in shopping malls, hospitals, supermarkets, and other environments.

Fanvil H6W Hotel Wireless IP Phone (Black) – Specifications

General Features

• SIP Lines: 2

• Voice Quality: HD Voice

• Power Options: PoE (Power over Ethernet) / Optional External Power Supply

• Connectivity: Built-in dual-band Wi-Fi (2.4GHz & 5GHz, Wi-Fi 6)

• Operating Modes: Handset / Hands-free mode

• Programmable Keys: DSS Keys (Speed Dial)

• Installation: Desktop Stand

• Color Options: Black / White

Phone Functions

• Programmable DSS/Soft Keys

• Action URL / Active URI Support

• Wi-Fi Support:

  • 2.4GHz: 802.11 b/g/n

  • 5GHz: 802.11 a/n/ac/ax

• Additional Features:

  • Web Dial

  • Dial Plan

  • SIP Hotspot

  • Distinctive Ring

  • Multicast

Call Functions

• Call Out / Answer

• Mute / Unmute

• Call Hold / Resume

• Speed Dial

• Redial

• Hot Line

• Voice Message

Audio Features

• Wideband & Narrowband Codec Support:

  • Narrowband: G.711A/U, G.729AB, G.723.1, G.726, iLBC

  • Wideband: G.722, Opus

• Full-duplex hands-free speakerphone with AEC

• Noise & Audio Enhancements:

  • Voice Activity Detection (VAD)

  • Comfort Noise Generation (CNG)

  • Background Noise Estimation (BNE)

  • Noise Reduction (NR)

  • Automatic Gain Control (AGC)

  • Packet Loss Concealment (PLC)

  • Dynamic Adaptive Jitter Buffer

• DTMF Support: In-band, Out-of-Band (RFC2833), SIP INFO

• VQM (Voice Quality Monitoring)

Network & Security

• Ethernet: 10/100 Mbps

• IP Modes: IPv4 / IPv6 / IPv4&IPv6

• IP Configuration: Static / DHCP / PPPoE

• Wi-Fi Encryption: WPA / WPA2-PSK / 802.X EAP

• Network Access Control: 802.1x

• VPN Support: L2TP / OpenVPN

• VLAN Support: 802.1P/Q

• QoS & Network Optimization: LLDP, RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Display & Usability

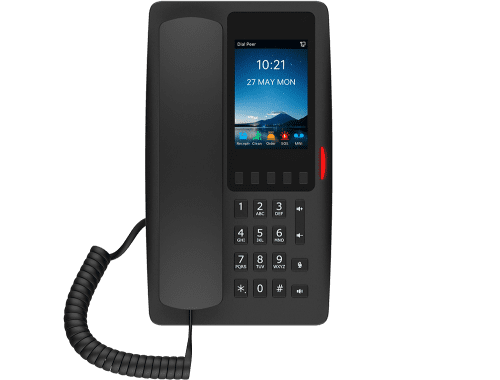

• Screen: 3.5-inch 320×480 IPS, customizable background image

• Screensaver Mode: Supports image slideshow

• Programmable Keys: 5 softkeys for hotel services, customizable icons

• Energy-Saving Mode: Sleep mode to reduce power consumption

Protocols Supported

• SIP: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS

• Others: RTP/RTCP/SRTP, STUN, DHCP, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069

Management & Deployment

• Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

• Remote Management: Web portal, Configuration Import/Export, Firmware Upgrade, Syslog

Physical Specifications

• LCD: 3.5-inch IPS display

• Keypad: 21 keys

  • 12 Standard Phone Digits

  • 5 DSS Keys

  • 3 Function Keys (Up/Down/Mute)

  • 1 Hands-free Key

• Indicators: Message Indicator LED (Red)

• Ports:

  • Handset Port: RJ9 x1

  • Ethernet Port: RJ45 x1 (Network)

  • USB-A Port: 1 (for charging, no additional converter needed)

• Power Supply:

  • PoE Consumption: 1.56~8.29 W

  • Adapter Consumption: 0.97~6.08 W (DC 5V 2A)

• Environmental Conditions:

  • Operating Temperature: 0~45℃

  • Operating Humidity: 10~95%

• Dimensions:

  • Device (Desktop Stand 30°): 221×127.5×70.5 mm

  • Gift Box: 190x228x95 mm

  • Outer Carton (10 pcs): 495x476x210 mm

• Weight:

  • Net Weight per Carton (10 pcs): 8.15 kg

  • Gross Weight per Carton (10 pcs): 9.10 kg

Additional Information

• The Fanvil H6W Hotel Wireless IP Phone Black is designed for hotel environments but is versatile enough for shopping malls, hospitals, and supermarkets.

• It provides seamless connectivity with Wi-Fi 6 and HD Voice while reducing installation costs.

• The customizable softkeys and hotel service integration make it an ideal solution for hospitality applications.
