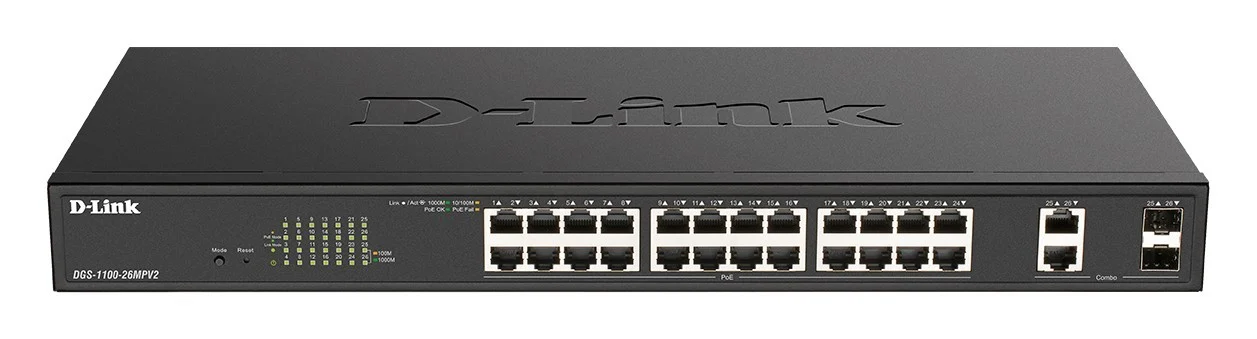

DGS-1100-26MPV2 24-Port PoE Smart Managed Switch

DGS-1100-26MPV2 24-Port PoE Smart Managed Switch

The DGS-1100-26MPV2 24-Port PoE Smart Managed Switch provides powered Gigabit connectivity and practical Layer 2 control for growing networks. It suits offices, schools, hotels, retail environments, and professional security systems. Its 24 PoE ports deliver data and power through Ethernet cabling. Moreover, two Gigabit combo uplinks support flexible copper or fibre connections to other network equipment.

Product Overview

The DGS-1100-26MPV2 24-Port PoE Smart Managed Switch supports 24 Gigabit Ethernet downlink ports. Each port supports IEEE 802.3af and IEEE 802.3at power delivery. Therefore, compatible access points, Internet Protocol cameras, and phones can operate without separate power adapters nearby.

The switch offers a shared 370W PoE budget and up to 30W per powered port. In addition, two Gigabit RJ45/SFP combo uplinks provide copper or fibre connectivity. Administrators can use the web-based interface to configure Virtual Local Area Networks, traffic controls, link aggregation, and other Layer 2 functions.

Key Features

• Provides 24 Gigabit PoE ports, supporting high-speed data and centralised power delivery.
• Offers a 370W PoE budget, allowing several compatible devices to share the available power.
• Delivers up to 30W per PoE port, supporting IEEE 802.3af and IEEE 802.3at equipment.
• Includes two Gigabit combo uplinks, providing RJ45 copper or SFP fibre connection options.
• Supports IEEE 802.1Q VLANs, helping administrators separate traffic into logical network groups.
• Provides IEEE 802.3ad link aggregation, allowing suitable ports to form a combined logical link.
• Supports STP and RSTP, helping prevent network loops and maintain stable connectivity.
• Uses storm control to manage excessive broadcast, multicast, and unknown unicast traffic.
• Includes cable diagnostics and loopback detection, making network faults easier to identify.
• Uses two smart fans to provide active cooling based on the switch’s operating requirements.

Technical Specifications

• Brand: D-Link
• Model: DGS-1100-26MPV2
• Product type: Layer 2 smart managed PoE switch
• Downlink ports: 24 × Gigabit Ethernet PoE
• Uplink ports: 2 × Gigabit RJ45/SFP combo
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Total PoE budget: 370W
• Maximum PoE output per port: 30W
• Switching capacity: 52 Gbps
• Maximum forwarding rate: 38.69 Mpps
• Maximum power consumption: 454.1W with PoE active
• Dimensions: 440 × 208 × 44 mm
• Weight: 2.8 kg
• Cooling: Two smart fans
• Power supply: Internal
• Operating temperature: -5°C to 50°C
• Operating humidity: 0% to 95% non-condensing

Common Applications

This switch suits business networks, schools, hotels, shops, and professional surveillance systems. For example, it can power compatible cameras, wireless access points, and Voice over Internet Protocol phones. Its managed features also help administrators separate and prioritise different traffic types.

Why Choose This Product?

The DGS-1100-26MPV2 24-Port PoE Smart Managed Switch combines a high PoE budget with useful Layer 2 controls. Consequently, organisations can power many devices while managing traffic from one interface. The combo uplinks also support copper or fibre expansion. Furthermore, diagnostic tools make routine troubleshooting easier.

Frequently Asked Questions

How much power can one PoE port deliver?

Each powered port can provide up to 30W to a compatible IEEE 802.3af or IEEE 802.3at device.

How do the two combo uplink ports work?

Each combo uplink offers RJ45 and SFP interfaces that share one logical Gigabit connection.

Does the switch require command-line configuration?

A web-based interface provides access to its Layer 2 management and monitoring functions.

Why does the switch have two smart fans?

The two smart fans provide active cooling for the high-capacity PoE power system.
