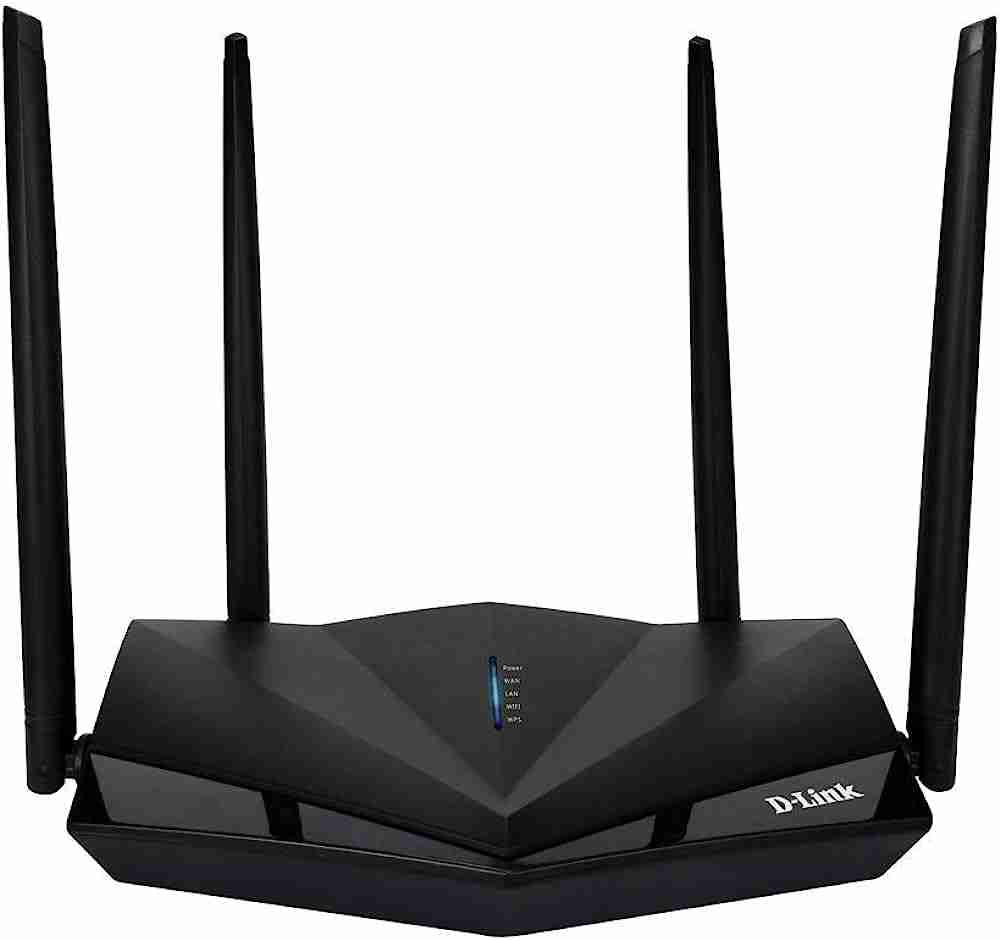

D-link Router DIR-650IN/BNA Wireless 300MBPS

The DIR-650IN Wireless N300 Router is an attractive, high-performance router that makes it easy to share your broadband Internet connection with all your devices. Simply connect it to your broadband modem, then use the web-based Setup Wizard that guides you step by step through the configuration process. Whether you’re surfing the web on your desktop or relaxing on the couch with your laptop, the DIR-650IN keeps you connected wherever you are in your home.

The D-Link DIR-650IN/ENA Wireless N300 Router is a high-performance networking solution designed to provide stable and reliable internet connectivity for your home or small office. This router offers a combination of advanced security features, multiple operating modes, and easy setup, making it a versatile choice for a variety of networking needs.

Key Features:

• High-Speed Wireless Connectivity: With the latest Wireless N technology, the DIR-650IN delivers wireless speeds up to 300 Mbps, ideal for web browsing, streaming HD video, and file sharing across your network.
• Enhanced Coverage: Four external 5dBi antennas ensure improved Wi-Fi reception and transmission, providing extensive coverage to eliminate dead zones in your home or office.
• Flexible Connectivity: Equipped with three 10/100 LAN ports and one 10/100 WAN port, the router facilitates high-speed wired connections for devices such as desktop computers, gaming consoles, and smart TVs.
• Multiple Operating Modes: The DIR-650IN can be configured as a Router, Access Point, Repeater, Client, or WISP client/Repeater, offering flexibility to adapt to various networking requirements.
• Advanced Security: Includes WPA and WPA2 encryption standards, a NAT Firewall, and Wi-Fi Protected Setup (WPS) to secure your network against unauthorized access and threats.
• Easy Setup and Management: A user-friendly web interface and setup wizard guide you through the configuration process, making it simple to get your network up and running without complex procedures.

Specifications for D-Link DIR-650IN/ENA 300Mbps Wireless Router

Product Overview:

• Model: DIR-650IN/ENA
• Product Description: Wireless N300 Router

Hardware Specifications:

• Interfaces:
  • 3 x 10/100 LAN ports
  • 1 x 10/100 WAN (Internet) port
• Antenna: 4 x 5dBi External Antennas
• LED Indicators: Power, Internet, LAN, Wi-Fi, WPS
• Buttons:
  • POWER button to power on/off
  • WIFI button to enable/disable wireless network
  • WPS button to set up a wireless connection
  • RESET button to restore factory default settings
• Power Connector: Power input connector (DC)

Wireless and Network Features:

• Wireless Standards: IEEE 802.11n/g/b
• Security:
  • WPA & WPA2 (Wi-Fi Protected Access)
  • Wi-Fi Protected Setup (WPS)
  • WEP 64/128 bit data encryption
• Operating Modes: Router | AP | Repeater | Client | WISP client/Repeater
• Advanced Networking Features:
  • NAT Firewall
  • Stateful Packet Inspection (SPI)
  • MAC Address filtering
  • QoS (bandwidth limitation)
  • Port forwarding & DMZ
  • Routing: Static, Dynamic (RIP1 / RIP2)
  • VPN Pass-through
  • Internet Block / IP filter
  • IPv6 support
  • TR-069
  • Wireless scheduling (Green AP)
  • VLAN support

Physical and Environmental:

• Dimensions: 255.9 x 168 x 41.2 mm
• Weight: 294 grams
• Power Supply:
  • Input: 100 to 240 V AC, 50/60 Hz
  • Consumption: 5 V / 1 A
• Temperature:
  • Operating: 0 to 40 °C
  • Storage: -40 to 70 °C
• Humidity:
  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Additional Features:

• Setup and Configuration: Web browser-based setup and configuration
• Ease of Use: Setup wizard guides through the configuration process

This detailed specification provides a comprehensive overview of the D-Link DIR-650IN/ENA Wireless N300 Router, showcasing its capabilities in providing a secure, high-speed wireless network for both home and small office environments.
