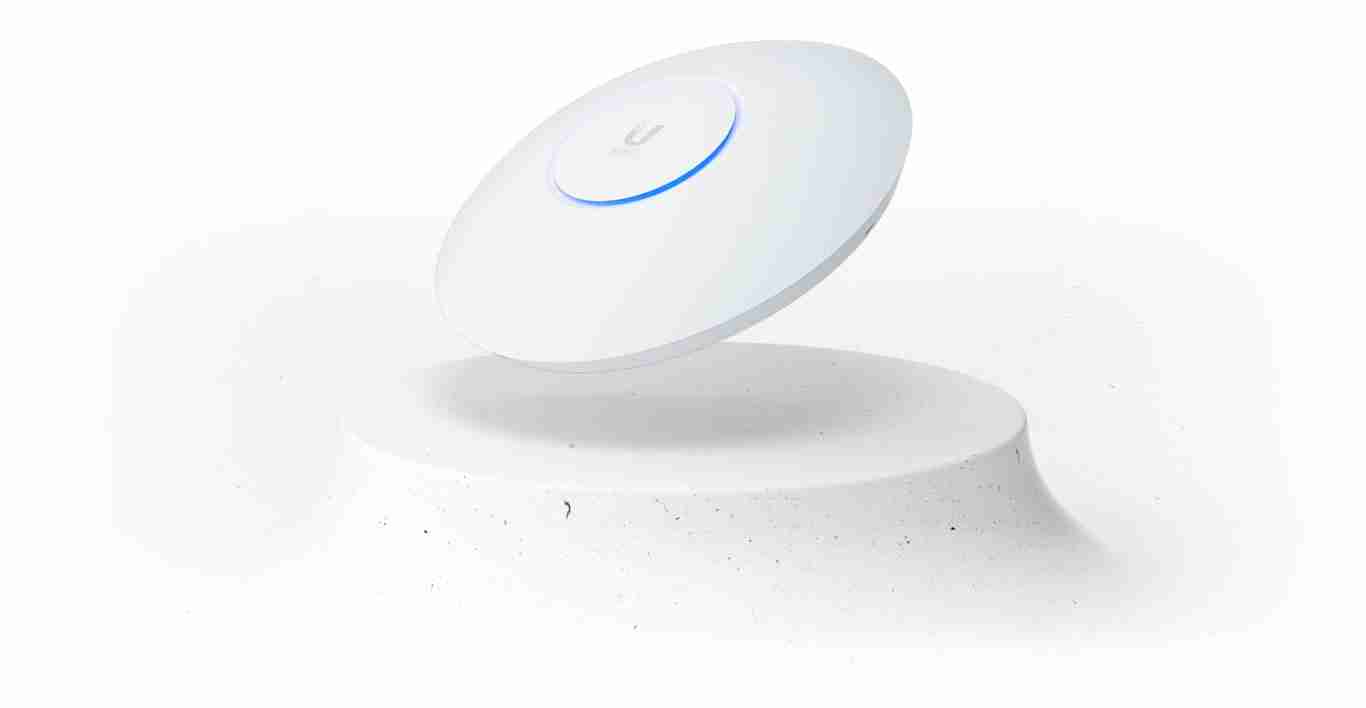

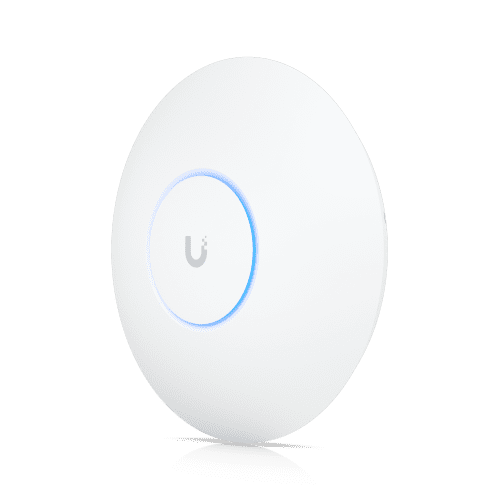

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz 4×4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Ubiquiti UniFi U6-LR Long-Range WiFi Access Point is a high-performance wireless access point that is designed for indoor use. It features advanced Wi-Fi 6 technology, including a 1.3 GHz dual-core processor and four-stream high-efficiency Wi-Fi 6 technology, allowing for faster speeds, higher capacity, and improved efficiency compared to previous Wi-Fi standards.

The access point supports dual-band connectivity, allowing clients to connect to either the 2.4 GHz or 5 GHz band, depending on their device and network conditions. The 5 GHz band supports 4×4 MU-MIMO and OFDMA technology, with a radio rate of up to 2.4 Gbps, while the 2.4 GHz band supports 4×4 MIMO technology, with a radio rate of up to 600 Mbps.

The U6-LR access point is powered by 802.3at PoE, allowing for easy installation and setup. However, a PoE injector is not included with the access point and must be purchased separately.

One of the key features of the U6-LR is its long-range capabilities, which make it an ideal choice for large indoor spaces. The access point includes an advanced antenna system with multiple internal and external antennas, providing improved coverage and performance compared to previous UniFi access points. This ensures that clients are able to connect to the access point from a wider range of locations and receive a stronger signal.

The U6-LR also includes advanced security features such as WPA3 encryption and TLS 1.3 support, providing enhanced protection for wireless networks. This ensures that sensitive data is protected from unauthorized access and helps to prevent cyber attacks.

The access point is easily managed using the UniFi Network Controller software, which provides a centralized platform for managing and monitoring UniFi devices. This makes it easy to deploy and manage a wireless network infrastructure using multiple UniFi devices.

Ubiquiti UniFi U6-LR Long-Range WiFi Access Point has several features, including:

• 1.3 GHz dual-core processor: The access point is equipped with a powerful dual-core processor that has been upgraded to support full-duplex 1 Gbps TCP/IP performance.
• Four-stream high-efficiency Wi-Fi 6 technology: The access point features advanced Wi-Fi 6 technology, allowing for faster speeds, higher capacity, and improved efficiency compared to previous Wi-Fi standards.
• 5 GHz band 4×4 MU-MIMO and OFDMA: The 5 GHz band supports 4×4 MU-MIMO and OFDMA technology, with a radio rate of up to 2.4 Gbps. This allows multiple clients to connect simultaneously and improves the efficiency of the wireless network.
• 2.4 GHz band 4×4 MIMO: The 2.4 GHz band supports 4×4 MIMO technology, with a radio rate of up to 600 Mbps. This provides reliable connectivity for devices that only support the 2.4 GHz band.
• Powered with 802.3at PoE: The access point is powered with 802.3at PoE, which allows for easy installation and setup. However, a PoE injector is not included with the access point and must be purchased separately.
• Long-range capabilities: The U6-LR access point includes an advanced antenna system with multiple internal and external antennas, providing improved coverage and performance compared to previous UniFi access points. This ensures that clients are able to connect to the access point from a wider range of locations and receive a stronger signal.
• Advanced security features: The access point includes advanced security features such as WPA3 encryption and TLS 1.3 support, providing enhanced protection for wireless networks.
• UniFi Network Controller software: The access point is easily managed using the UniFi Network Controller software, which provides a centralized platform for managing and monitoring UniFi devices. This makes it easy to deploy and manage a wireless network infrastructure using multiple UniFi devices.

Specifications for the Ubiquiti UniFi U6-LR Long-Range Wifi Access Point:

• Processor: 1.3 GHz dual-core
• Memory: 256 MB DDR4
• Antennas: (1) 2.4 GHz, 4 dBi and (1) 5 GHz, 5 dBi
• Wi-Fi Standards: 802.11a/b/g/n/ac/ax
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
• Radio Rates:
  • 5 GHz: 4×4 MU-MIMO and OFDMA with up to 2.4 Gbps
  • 2.4 GHz: 4×4 MIMO with up to 600 Mbps
• Max. TX Power:
  • 2.4 GHz: 23 dBm
  • 5 GHz: 26 dBm
• Power Method: 802.3at PoE
• Power Supply: UniFi PoE Switch or 802.3at PoE+ Gigabit Ethernet Adapter (not included)
• Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89″)
• Weight: 783 g (1.73 lbs)
