Ubiquiti ER-6P PoE EdgeRouter for Business Networks

Ubiquiti ER-6P PoE EdgeRouter for Business Networks

If you need a compact router that can also power compatible devices, the Ubiquiti ER-6P PoE EdgeRouter is built for small offices, retail sites, labs, and managed network deployments. It combines Gigabit routing interfaces with 24V passive PoE on five ports, so you can simplify cable runs and keep installs tidy. Moreover, its metal enclosure and practical mounting options make it a solid fit for professional, lawful network builds.

Product Overview

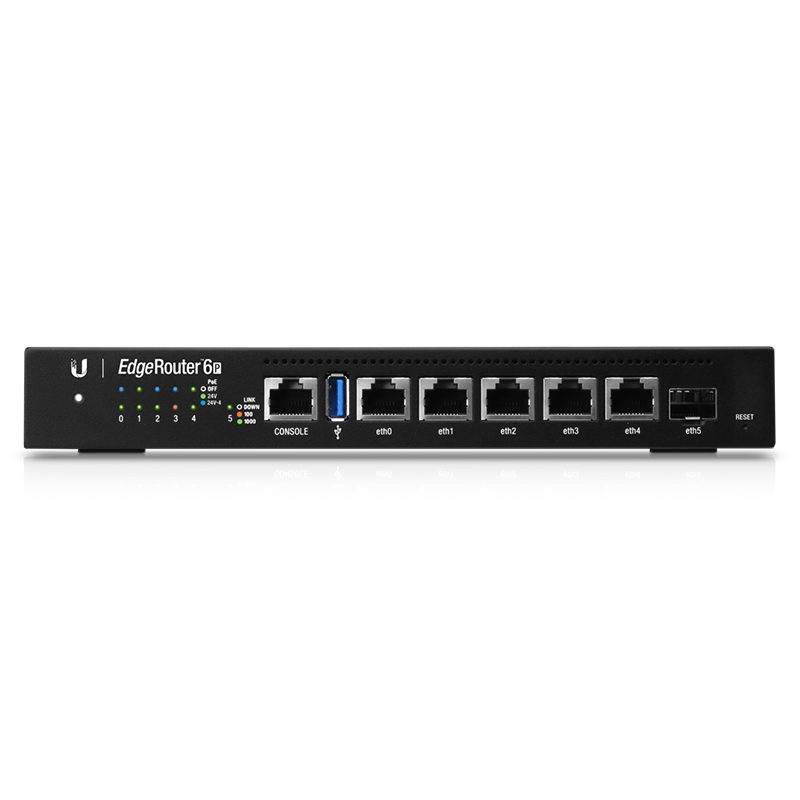

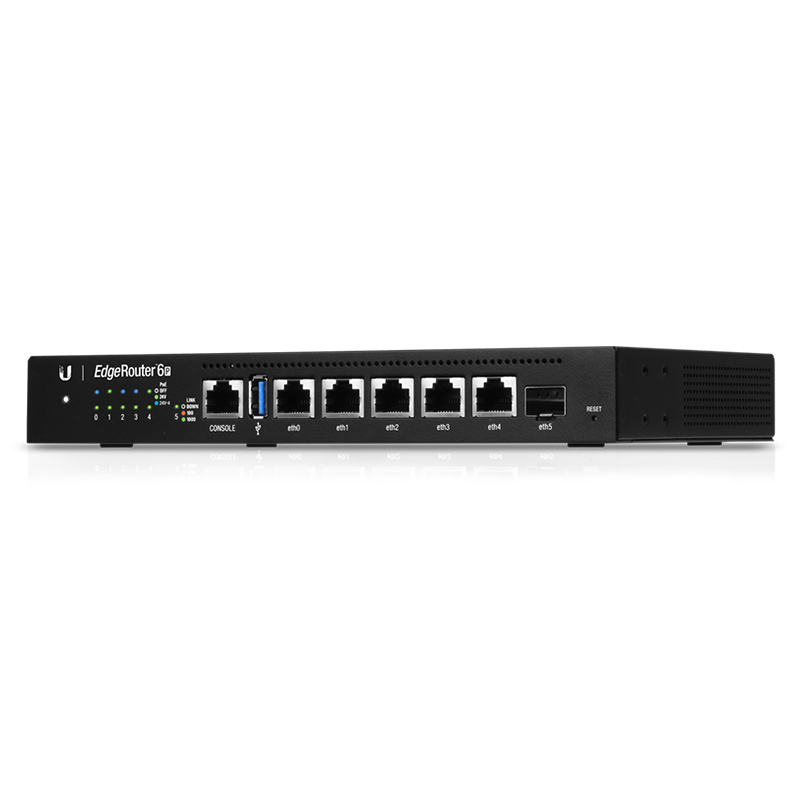

This EdgeRouter 6 PoE (ER-6P) brings together five Gigabit Ethernet RJ45 interfaces and one 1G SFP uplink in a single unit. Therefore, you can connect copper endpoints while also reserving SFP for fiber or uplink flexibility, depending on your design. In addition, an RJ45 serial management port supports straightforward administration workflows where out-of-band access is preferred.

Inside, it includes 1GB DDR3 RAM plus 4GB eMMC storage and 8MB SPI NOR. As a result, you get a consistent platform for EdgeMAX-style routing deployments without needing extra hardware. Meanwhile, the included external 24V/2.5A AC/DC adapter supports the router’s own power needs, while PoE output is available for compatible 24V passive devices.

Key Features

• Five 24V passive PoE ports → Power compatible 24V devices over Ethernet, reducing separate power adapters.

• (5) GbE RJ45 + (1) 1G SFP → Mix copper endpoints with an SFP uplink for flexible topology choices.

• RJ45 serial management port → Supports practical management access, especially in controlled IT environments.

• Metal enclosure → Adds durability for structured cabling closets and rack or wall installations.

• Status LEDs per port → Therefore, you can quickly confirm PoE, link, speed, and activity at a glance.

• Factory reset button → Helps recover devices during planned maintenance or authorized reconfiguration.

• Wall or rack mounting → Install cleanly on a wall, or use the optional ER-RMKIT for rack setups.

Technical Specifications

• Brand: Ubiquiti

• Model: ER-6P (EdgeRouter 6 PoE)

• Product name: Ubiquiti ER-6P PoE EdgeRouter

• Dimensions: 229 × 136.5 × 31.1 mm (9 × 5.4 × 1.2″)

• Weight: 730 g (1.6 lb)

• Enclosure material: Metal

• System memory: 1GB DDR3 RAM

• Storage: 4GB eMMC + 8MB SPI NOR

• Networking interfaces: (5) GbE RJ45 ports; (1) 1G SFP port

• Management interface: (1) RJ45 serial port

• PoE interface: (5) 24V Passive PoE ports (2-pair and 4-pair)

• Max PoE per port: 24W (24V, 1A, 4-pair) / 12W (24V, 0.5A, 2-pair)

• Power method: AC/DC adapter, 24V, 2.5A (included)

• Power supply: External adapter, 60W

• Supported voltage range: 16–30V DC

• Max power consumption: 16W (excluding PoE output)

• Operating temperature: -10 to 50°C (14 to 122°F)

• Operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

• NDAA compliant: Yes

• LEDs: Ethernet ports (PoE, link/speed/activity); SFP (link/activity)

• Mounting: Wall; rack with optional Rack Mount Kit (ER-RMKIT)

• Warranty: To be confirmed
  Specs sourced from the manufacturer tech sheet.

Why Choose This Router?

If you want routing plus device power in one footprint, this 6-port PoE EdgeRouter is a practical choice. However, because it uses 24V passive PoE, you should pair it only with compatible equipment and follow professional installation practices. Moreover, the SFP port adds uplink options, while the serial interface supports controlled management. Consequently, it fits well in office networks, ISP edge roles, and lab environments where clarity and reliability matter.

Final Recap & Call-to-Action

Overall, the Ubiquiti ER-6P PoE EdgeRouter gives you five Gigabit ports with 24V passive PoE, a 1G SFP uplink, and a rugged metal build in a compact form. Therefore, you can keep deployments clean while supporting compatible powered devices. Add it to your cart, or contact us for help matching PoE requirements to your network.
