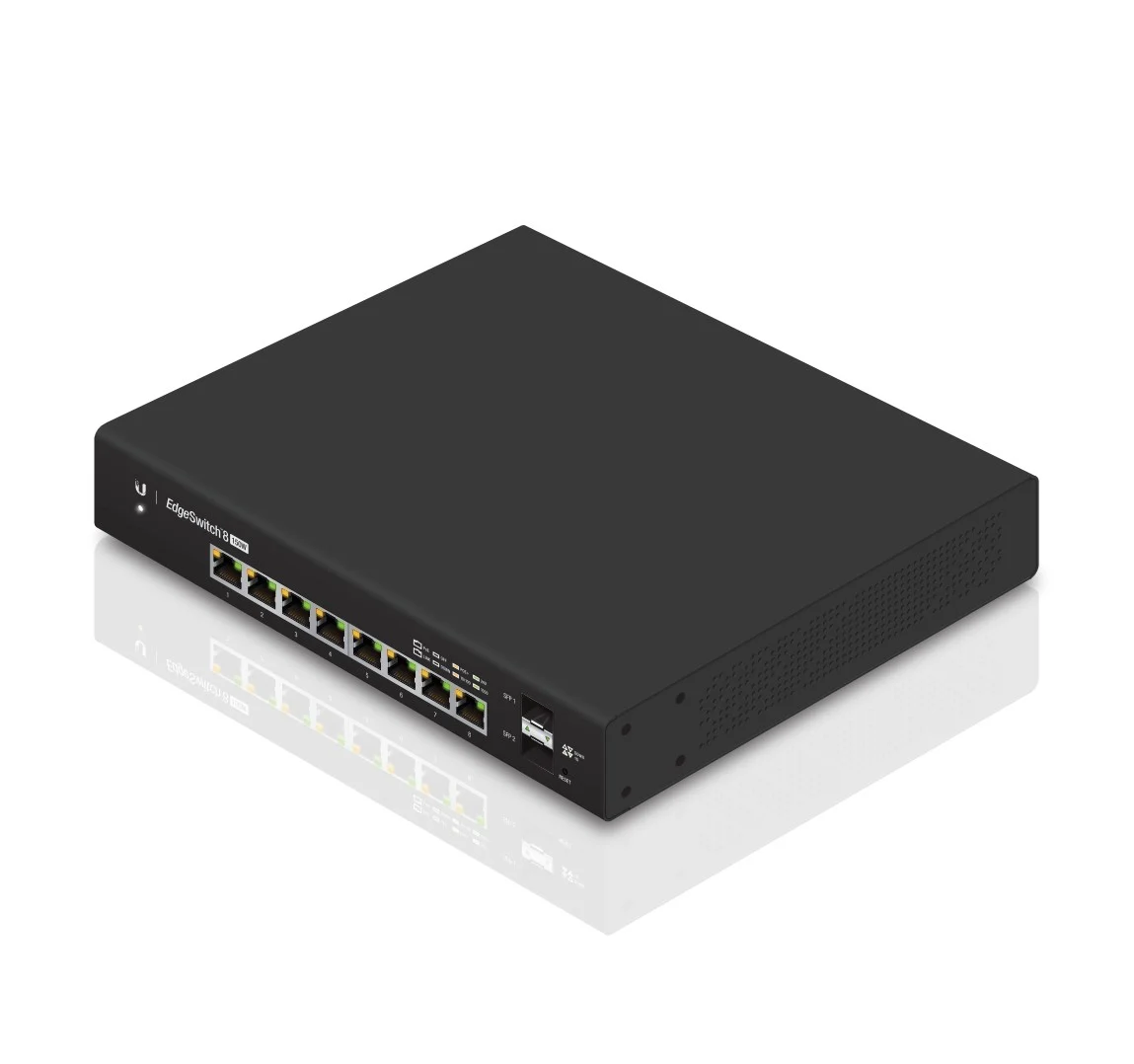

Ubiquiti EdgeSwitch 8 150W (ES-8-150W) – Technical Specifications

General

• Dimensions: 204 x 43 x 235 mm (8.03 x 1.69 x 9.25″)
• Weight:
  – Without Mount Brackets: 1.72 kg (3.79 lb)
  – With Mount Brackets: 1.8 kg (3.96 lb)
• Total Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• Max. Power Consumption:
  – Includes PoE Output: 150W
  – Excludes PoE Output: 20W
• Power Method:
  – AC: 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
  – DC: 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input
• Power Supply: AC/DC, Internal, 150W DC
• LEDs Per Port:
  – RJ45 Data Ports: PoE, Speed/Link/Activity
  – SFP Data Ports: Speed/Link/Activity
• Networking Interfaces:
  – (8) 10/100/1000 Mbps RJ45 Ethernet Ports
  – (2) 1 Gbps SFP Ethernet Ports
• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
• Certifications:
  – CE
  – FCC
  – IC
• Wallmount: Yes
• ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
• Operating Temperature:
  – Internal AC/DC @ 150W: -25 to 45° C (-13 to 113° F)
  – Internal AC/DC @ 100W: -25 to 55° C (-13 to 131° F)
  – External DC: -25 to 60° C (-13 to 140° F)
• Operating Humidity: 5 to 95% Noncondensing
• Shock and Vibration: ETSI300-019-1.4 Standard
• PoE Interfaces:
  – POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  – 24VDC Passive PoE (Pins 4, 5+; 7, 😎
• Max. PoE+ Wattage per Port by PSE: 34.2W
• Voltage Range 802.3at Mode: 50–57V
• Max. Passive PoE Wattage per Port: 17W
• 24V Passive PoE Voltage Range: 20-27V

PoE Per Port

• PoE Interfaces:
  – POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  – 24VDC Passive PoE (Pins 4, 5+; 7, 😎
• Max. PoE+ Wattage per Port by PSE: 34.2W
• Voltage Range 802.3at Mode: 50–57V
• Max. Passive PoE Wattage per Port: 17W
• 24V Passive PoE Voltage Range: 20-27V
