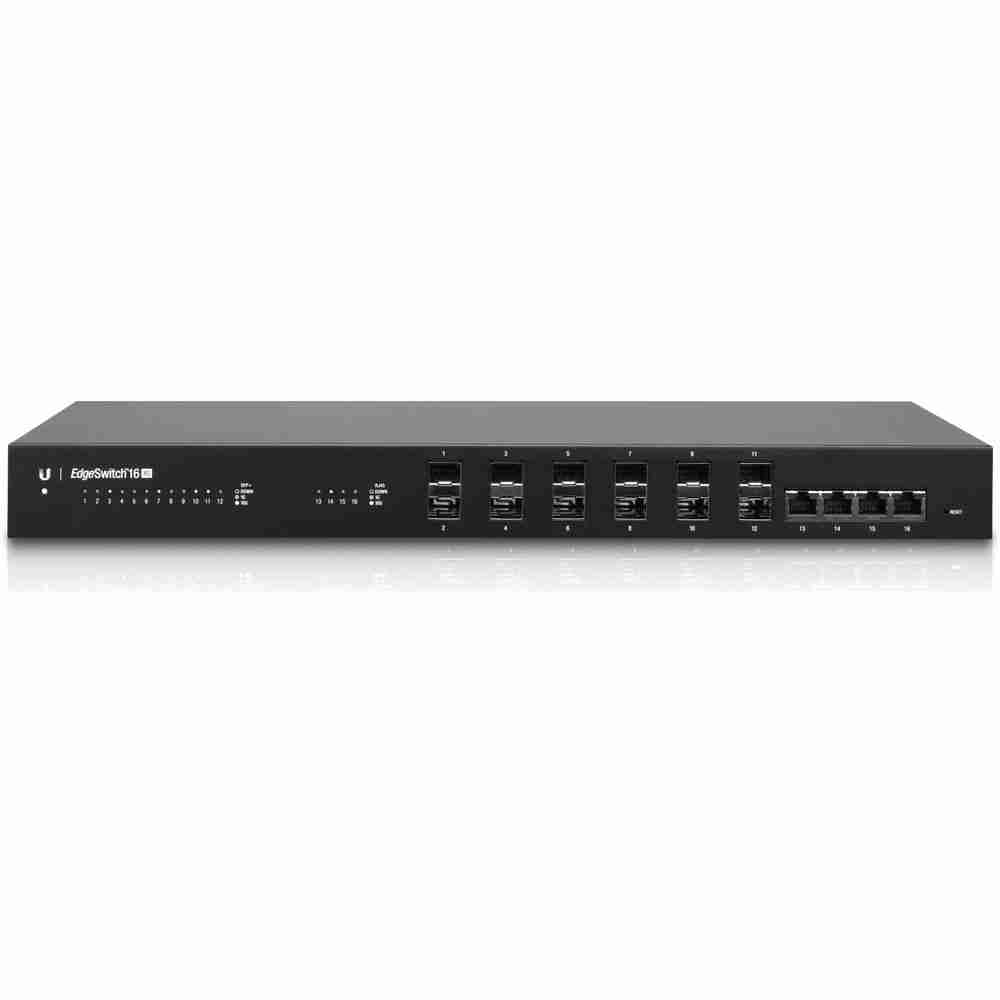

Ubiquiti EdgeSwitch 16 XG | ES-16-XG

Ubiquiti EdgeSwitch 16 XG | ES-16-XG

The Ubiquiti EdgeSwitch 16 XG (ES-16-XG), offered by Almiria Limited, is a fully managed, high-capacity, 10-gigabit aggregation switch designed for high-performance network environments. This 1U rack-mountable switch is equipped with twelve SFP+ ports and four 10 GbE RJ45 ports, making it an ideal solution for data centers, enterprise-level networks, or for those seeking to upgrade their network to 10G speeds.

Features:

• High-Capacity Networking: With twelve 1/10 Gbps SFP+ Ethernet ports and four 1/10 Gbps RJ45 Ethernet ports, the ES-16-XG provides flexible, high-speed networking options, allowing for a variety of connections from fiber to copper.
• Total Non-Blocking Line Rate: The switch offers a total non-blocking throughput of 160 Gbps, ensuring that all ports can operate at full capacity simultaneously without any packet loss, making it perfect for high-bandwidth applications.
• Advanced Management Features: The ES-16-XG is managed via a single RJ45 serial port for console access or through Ethernet in-band management. This versatility allows for easy configuration and monitoring of the switch’s performance and security features.
• Energy Efficient: Despite its high performance, the ES-16-XG is designed to be energy efficient with a maximum power consumption of 36W (excluding SFP/SFP+ modules), thanks to its internal AC/DC power supply.
• Robust Design and Protection: The switch is built to withstand harsh environments with ESD/EMP protection of ± 24 kV for air and contact. It also meets the ETSI300-019-1.4 Standard for shock and vibration, ensuring reliability in a variety of operational conditions.
• User-Friendly Indicators: Equipped with LEDs for SFP+ and RJ45 ports to display speed, link, and activity, the ES-16-XG makes it easy to monitor network status at a glance.

Technical Specifications:

• Mechanical:
  • Dimensions: 443 x 221 x 43 mm (17.4 x 8.7 x 1.7″)
  • Weight: 2.6 kg (5.8 lb) without mount brackets, 2.7 kg (6 lb) with mount brackets
• Hardware:
  • Networking Interfaces: 12 x 1/10 Gbps SFP+ Ethernet ports, 4 x 1/10 Gbps RJ45 Ethernet ports
  • Management Interface: 1 x RJ45 serial port, Ethernet In-Band
  • Total Non-Blocking Line Rate: 160 Gbps
• Power:
  • Method: AC 100–240V, 50/60 Hz, universal input; DC 56W, 25–16V, with 2.5 mm DC power inline connector
  • Supply: AC/DC, internal, 56W
  • Max. Power Consumption: 36W (Excludes SFP/SFP+ module)
• Environmental:
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

The Ubiquiti EdgeSwitch 16 XG is engineered for users who demand high-capacity, reliable networking. With its comprehensive feature set, energy efficiency, and robust design, it represents an excellent investment for any organization looking to enhance its network infrastructure for the future.
