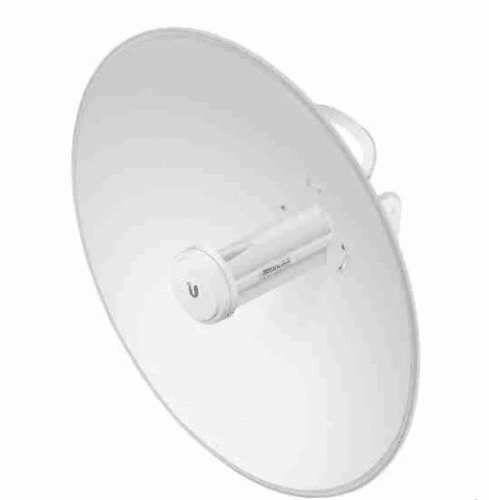

PBE-5AC-Gen2 – Ubiquiti airMAX PowerBeam Gen 2 5AC 5GHz Bridge

Ubiquiti airMAX PowerBeam Gen 2 PBE-5AC-Gen2 is a 5GHz bridge that offers powerful and reliable wireless connectivity for point-to-point (PtP) and point-to-multipoint (PtMP) applications. Designed as an upgrade to its predecessor, the Gen 2 PowerBeam delivers enhanced performance, advanced features, and improved ease of use. Let’s explore the features and benefits of the Ubiquiti airMAX PowerBeam Gen 2 PBE-5AC-Gen2 in this essay:

The PowerBeam Gen 2 PBE-5AC-Gen2 leverages the airMAX AC technology, which provides improved performance, increased capacity, and higher throughput compared to previous airMAX iterations. Operating in the 5GHz frequency band, this bridge offers excellent wireless coverage and reduced interference for optimal connectivity in various environments.

One of the key advancements of the PowerBeam Gen 2 PBE-5AC-Gen2 is its integrated dish antenna and radio design. The high-gain dish reflector and advanced RF isolation deliver focused directivity and efficient signal transmission, enabling long-range links with superior signal quality. This design allows for extended coverage and enhanced noise immunity, ensuring reliable and stable connections even in challenging conditions.

With support for the 802.11ac Wi-Fi standard, the PowerBeam Gen 2 PBE-5AC-Gen2 delivers impressive data transfer rates and low latency performance. With throughput capabilities of up to 450+ Mbps, it can handle bandwidth-intensive tasks, such as high-definition video streaming, VoIP communications, and data-intensive applications.

Installation and alignment of the PowerBeam Gen 2 PBE-5AC-Gen2 are made simple and efficient. The device incorporates Ubiquiti’s innovative mounting system, which allows for easy adjustment and precise aiming. This ensures quick and accurate alignment, saving time and effort during installation.

The PowerBeam Gen 2 PBE-5AC-Gen2 is equipped with an intuitive airOS software interface, empowering users with powerful management and monitoring capabilities. The user-friendly interface provides access to a range of advanced features, including airView Spectrum Analyzer, airMAX AC Protocol Support, real-time RF analytics, and customizable deployment options. With these tools, network administrators can optimize performance, monitor network health, and fine-tune settings for optimal operation.

Designed for outdoor environments, the PowerBeam Gen 2 PBE-5AC-Gen2 boasts a rugged and weatherproof construction. It is built to withstand harsh weather conditions, ensuring reliable operation in extreme temperatures, rain, wind, and sunlight. The device’s durable enclosure and robust materials guarantee long-lasting performance in demanding outdoor deployments.

In summary, the Ubiquiti airMAX PowerBeam Gen 2 PBE-5AC-Gen2 is a powerful and feature-rich 5GHz bridge that offers high-performance wireless connectivity for point-to-point and point-to-multipoint applications. With its advanced airMAX AC technology, integrated antenna design, ease of installation, and robust construction, it provides reliable, long-range, and high-speed wireless links. The PowerBeam Gen 2 PBE-5AC-Gen2 is an excellent choice for network expansions, remote site connections, and building reliable wireless backhaul infrastructure.

PBE-5AC-Gen2 – Ubiquiti airMAX PowerBeam Gen 2 5AC 5GHz Bridge is an airMAX PowerBeam 2.4/5GHz Gen 2 device, featuring a built-in Wi-Fi radio for easy remote setup an accessibility. The Ubiquiti Networks airMAX PowerBeam Gen 2 is an ideal product for CPE deployments requiring maximum performance. Utilizing InnerFeed technology to integrate the radio into the feedhorn of the antenna, there is now need for extra cables, improving performance thanks to no cable loss. It requires no tools for assembly, requiring only a single wrench for pole-mounting.

Product Specifications
• Dimensions: 420 x 420 x 230mm (16.54 x 16.54 x 9.06″)
• Weight: 2.22kg (4.89lbs)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Gain: 25dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64MB
• LEDs: Power, Ethernet, (4) Signal Strength
• Channel Sizes:
PtP Mode: 10/20/30/40/50/60/80MHz
PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics:
Antenna Feed: Outdoor UV Stabilized Plastic
Dish Reflector: Powder-Coated SPCC
• Mounting: Pole-Mounting Kit (included)
• Wind Loading: 380N @ 200km/h (85.4lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• RoHS Compliance: Yes
• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test: IEC 68-2-6
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Certifications: CE, FCC, IC
• Operating Frequency: 2412 – 2472MHz / 5150 – 5875MHz

Product Includes:
• (1) Dish Reflector
• (1) Antenna Feed
• (1) Rear Housing
• (1) Adjustment Bracket
• (1) Mounting Bracket
• (4) Hex Bolts with Washers
• (1) Pole Clamp
• (2) Long Carriage Bolts
• (2) Flange Nuts
• (1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
