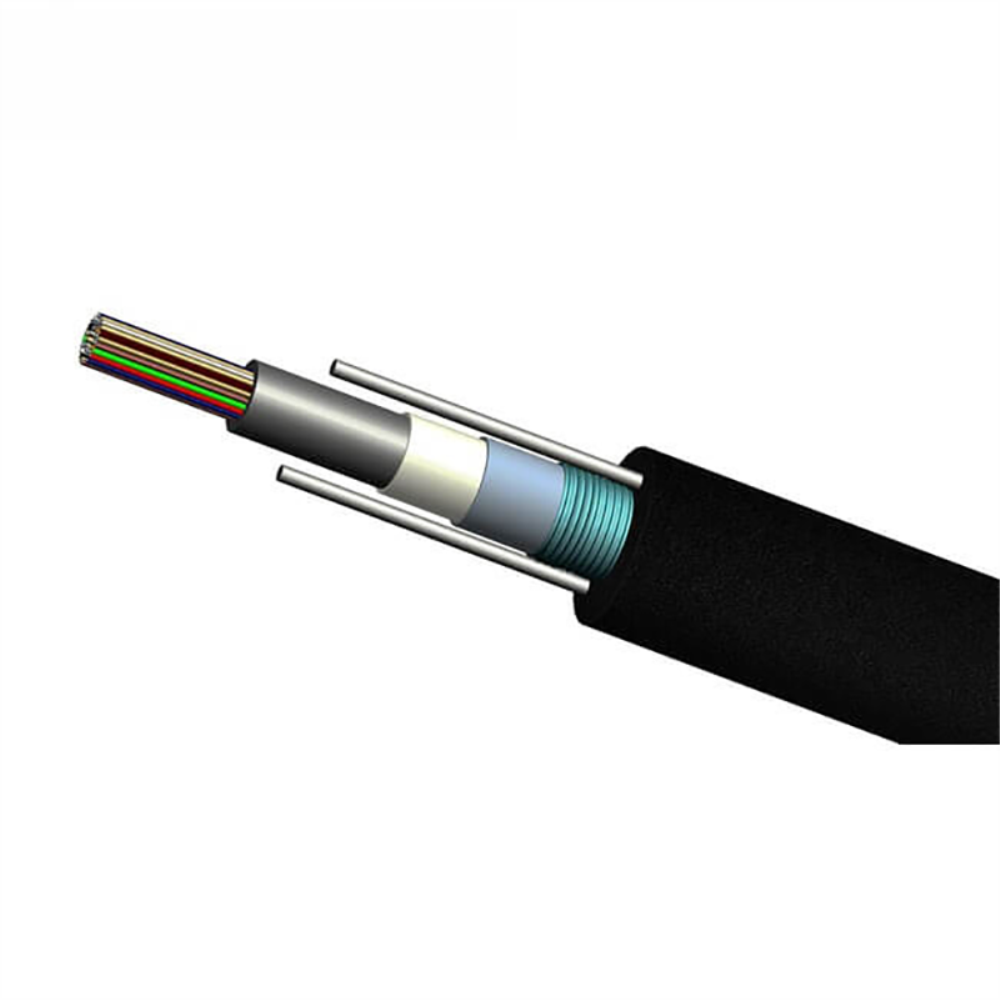

NEXA GYXTW 12 Cores G652D Fiber Cable

NEXA GYXTW 12 Cores G652D Fiber Cable

The NEXA GYXTW 12 Cores G652D Fiber Cable is an outdoor single-mode fiber optic cable built for stable, high-capacity data transmission. It is suitable for telecom networks, ISP distribution, LAN backbone links, CCTV infrastructure, and structured cabling projects. Moreover, its central loose tube, steel wire strength members, and armored design help protect the fibers in demanding outdoor routes.

Product Overview

This 12-core G.652D fiber cable uses a central loose tube structure that holds and protects the optical fibers. In addition, the loose tube is filled with jelly compound, which helps block moisture and reduce water-related damage. Therefore, the cable supports dependable performance across long-distance outdoor communication links.

The cable also features corrugated steel tape armor under the outer sheath. As a result, it offers stronger protection against pressure, moisture, and installation stress. Furthermore, the steel wire strength members improve pulling strength, making the cable suitable for aerial and duct installation projects.

Key Features

• 12-core single-mode design: Supports higher-capacity data links for growing fiber networks.
• G.652D fiber type: Helps deliver stable long-distance optical transmission.
• Central loose tube structure: Protects fibers from movement and installation stress.
• Jelly-filled loose tube: Helps block moisture inside the cable core.
• Water-blocking material: Adds another layer of moisture protection for outdoor routes.
• Corrugated steel tape armor: Improves cable strength and supports better physical protection.
• Parallel steel wire strength members: Help the cable handle pulling force during installation.
• HDPE outer sheath: Provides a durable jacket for outdoor network environments.
• Aerial and duct installation support: Gives installers more flexibility on site.
• Compact round cable design: Makes handling, routing, and pulling easier.
• Temperature range of -40°C to +70°C: Supports use in changing outdoor conditions.
• RoHS, ISO9001, and REACH certification: Helps meet common project compliance needs.

Technical Specifications

• Product name: NEXA GYXTW 12 Cores G652D Fiber Cable
• Model: GYXTW fiber cable
• Fiber count: 12 cores
• Fiber type: Single-mode G.652D
• Cable type: Central loose tube fiber optic cable
• Application: Communication networks and LAN links
• Recommended installation: Aerial and duct
• Environment: Outdoor
• Loose tube material: PBT
• Loose tube filling: Jelly compound
• Water-blocking system: Filling compound or water-blocking tape
• Armor material: Corrugated steel tape
• Strength member: Steel wire or FRP
• Outer sheath material: HDPE, MDPE, or LSZH options
• Standard sheath color: Black
• Cable diameter: 7.4±0.2 mm for 4–18 core design range
• Cable weight: 56 kg/km for 4–18 core design range
• Maximum fiber count: Up to 24 cores
• Temperature range: -40°C to +70°C
• Certifications: RoHS, ISO9001, REACH
• Transport package: Wooden drum
• HS code: 8544700000
• Power requirement: Not applicable, passive fiber cable
• Warranty: To be confirmed

Why Choose This Fiber Cable?

Choose this GYXTW 12-core outdoor fiber cable when your project needs more fiber capacity, strong protection, and stable long-distance performance. In addition, the armored structure helps shield the cable from outdoor installation stress. Therefore, it is useful for professional network contractors, telecom teams, and ISP deployment projects.

The NEXA GYXTW 12 Cores G652D Fiber Cable is also practical for network expansion. It offers more cores than smaller 4-core or 8-core options, while still keeping a compact central loose tube design. Moreover, the G.652D single-mode fiber supports reliable backbone links across long routes.

Outdoor Fiber Cable Summary

For outdoor fiber projects that need capacity, moisture protection, and strong cable construction, this 12-core G.652D cable is a reliable choice. Add it to your cart or contact us for roll length details, project pricing, and supply support.
