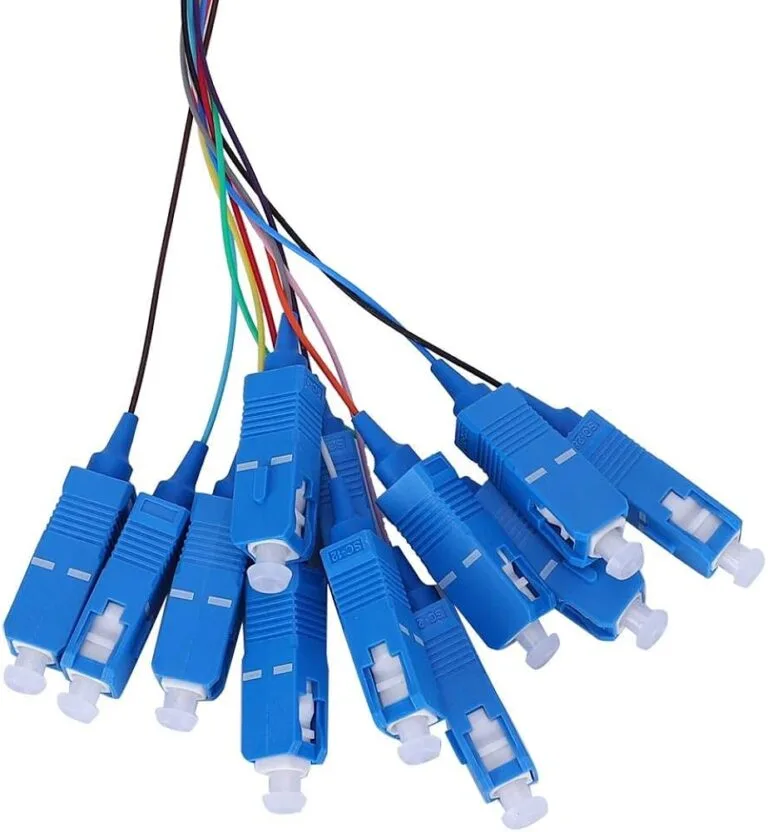

LW-PT-SCA-SM Fiber Pigtail SC APC Single Mode 2M

LW-PT-SCA-SM Fiber Pigtail SC APC Single Mode 2M

The LW-PT-SCA-SM Fiber Pigtail is a reliable Lightwave fiber termination accessory made for structured cabling, ODF panels, wall-mount fiber boxes, and professional network installations. It uses an SC/APC connector and single-mode 9/125μm fiber to support clean signal transfer. Therefore, it is a practical choice for technicians, installers, and network teams handling GPON, FTTH, CCTV backbone, and enterprise fiber links.

Product Overview

This Lightwave SC/APC single-mode pigtail helps simplify fiber termination during splicing and cable management. In addition, its factory-terminated SC/APC end reduces the need for manual connector polishing on-site. As a result, installers can achieve a cleaner and more consistent fiber connection inside patch panels and distribution boxes.

Moreover, the 2-meter length gives enough slack for routing, dressing, and future maintenance. The 900μm tight buffer also protects the fiber strand while remaining flexible for compact trays. However, it should always be handled by trained personnel using proper fiber installation tools and safe working practices.

Key Features

• SC/APC connector → Supports low-reflection single-mode fiber connections for stable signal performance.
• Single-mode 9/125μm fiber → Suitable for long-distance optical links and professional network backbones.
• 2-meter cable length → Provides useful working slack during splicing, routing, and maintenance.
• 900μm tight buffer → Offers easier handling, stripping, and placement inside ODF trays.
• Low insertion loss ≤0.3dB → Helps maintain signal quality across the fiber link.
• Return loss ≥60dB → Reduces back reflection for cleaner optical transmission.
• Green SC/APC housing → Allows quick visual identification of APC connection points.
• LSZH jacket material → Supports safer cabling environments with low-smoke, zero-halogen construction.
• Individual test report included → Provides extra assurance for professional installation records.

Technical Specifications

• Brand: Lightwave
• Model: LW-PT-SCA-SM
• Product: LW-PT-SCA-SM Fiber Pigtail
• Connector Type: SC/APC, Angled Physical Contact
• Fiber Mode: Single Mode OS2, 9/125μm
• Cable Length: 2 meters
• Buffer Diameter: 900μm tight buffer
• Insertion Loss: ≤0.3dB
• Return Loss: ≥60dB
• Jacket Material: LSZH, Low Smoke Zero Halogen
• Connector Colour: Green
• Application: ODF, fiber termination box, FTTH, GPON, CCTV backbone, and enterprise fiber links
• What’s in the Box: 1 x Lightwave 2m SC/APC single-mode fiber pigtail, individual test report
• Warranty: 1 year, as listed on the product page
• Certifications / Standards: Telcordia GR-326-CORE compliance listed in the product description
• Dimensions: 2m cable length; other physical dimensions to be confirmed

Why Choose This Switch?

Although this is a fiber pigtail and not a network switch, it plays an important role in reliable fiber termination. In addition, the pre-terminated SC/APC end helps reduce installation time and improves connection consistency. Therefore, the LW-PT-SCA-SM Fiber Pigtail is a dependable choice for professional fiber installers.

Moreover, its low-loss performance supports stable optical links in data, video, and GPON applications. The 2m length also provides useful working space inside enclosures. Finally, the tight buffer design makes it easier to splice, route, and maintain compared to more delicate loose fiber options.

Final Recap & Call-to-Action

Choose the LW-PT-SCA-SM Fiber Pigtail for clean SC/APC single-mode fiber termination in ODF panels, wall boxes, and structured cabling projects. Add to Cart today, or Contact Us for help matching it with your fiber accessories.
