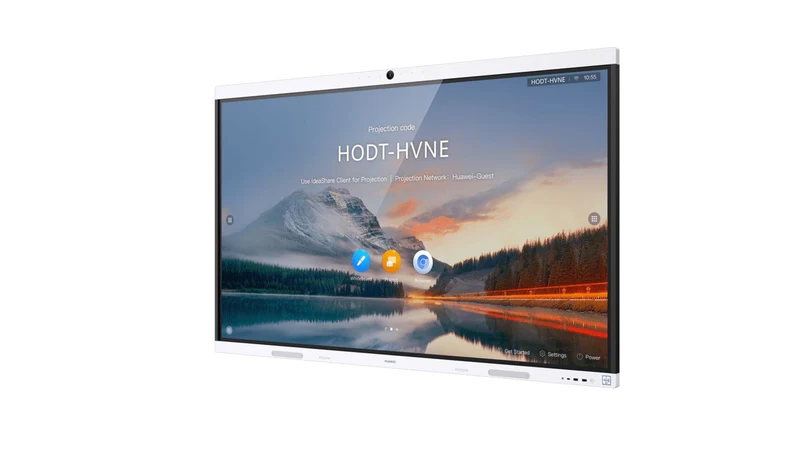

HUAWEI IdeaHub B2 IHB2-86PU Intelligent Collaboration Device 86-inch Infrared Screen

HUAWEI IdeaHub B2 IHB2-86PU – 86-Inch 4K Intelligent Collaboration Display with Infrared Touch & Dual Wi-Fi

Experience seamless collaboration with the HUAWEI IdeaHub B2 IHB2-86PU Intelligent Collaboration Device 86-inch Infrared Screen Intelligent Collaboration Device 86-inch Infrared Screen, an advanced intelligent meeting panel designed to redefine office interactions. Featuring an HD cloud conferencing system, dual Wi-Fi module, and an optical anti-blue light display, this device ensures enhanced projection and a superior writing experience. Ideal for meeting rooms, manager offices, and open office spaces, the HUAWEI IdeaHub B2 is a game-changer in the modern workplace. Explore more Huawei products at Almiria Techstore.

Key Features

• 4K UHD Display – Enjoy ultra-clear visuals with a 3840 x 2160 resolution and D-LED backlighting.
• Zero-Gap Bonding Technology – Enhanced visibility and smooth writing.
• Multi-Touch Screen – 20 touch points for a responsive interactive experience.
• Dual-Wi-Fi Module – Supports both 2.4 GHz and 5 GHz frequencies for stable connectivity.
• Smart Projection – Includes IdeaShare projection, HDMI, Type-C wired projection, and NFC capabilities.
• Superior Audio & Video – Equipped with 4 speakers, stereo sound, and 6 high-performance microphones for clear sound pickup up to 10m.
• AI-Powered Writing – Features low-latency precision touch, intelligent recognition, and multiple saving options.
• Flexible Mounting Options – Available in rolling stand and wall-mounted bracket (65″, 75″, and 86″).
• Seamless Third-Party Integration – Compatible with various third-party meeting apps.

Specifications

Display

• Screen Size: 86 inches
• Resolution: 4K UHD (3840 x 2160)
• Backlight Type: D-LED
• Lamination: Zero-gap bonding
• Viewing Angle: 178°
• Color Depth: 10-bit (8-bit + FRC)
• Color Gamut: 85% NTSC (typical value)
• Refresh Rate: 60Hz

Touch & Writing

• Number of Touch Points: 20
• Writing Latency: ≤25ms
• Precision: ±1mm
• Touch Sensing Distance: ≤1.5mm
• Annotation: Supported
• Reverse Control: Supported

Audio & Video

• Camera: 4K output resolution, F/1.8 aperture, 80° horizontal / 50° vertical viewing angle
• TV Distortion: <2%
• Speaker System: 2 full-frequency speakers + 2 high-frequency speakers (30W max power)
• Microphone: 6 microphones, 100Hz-20kHz frequency, 10m sound pickup range, 180° pickup angle

Connectivity

Front-Panel Ports:

• USB Type-C x 1
• USB Type-A 3.0 x 2

Side-Panel Ports:

• USB Type-A 3.0 x 1
• USB Type-B x 1
• HDMI IN x 2
• HDMI OUT x 1
• COM port x 1
• RJ45 network port x 1
• 80-pin OPS port x 1
• 3.5mm Line-in x 1
• 3.5mm Line-out x 1

Projection Modes

• IdeaShare Projection Code
• HDMI and Type-C Wired Projection
• IdeaShare Key (Optional)
• NFC & Drop-Down Menu Projection
• Wireless Projection: Up to 4K 30fps
• Wired Projection: Up to 4K 60fps
• Client OS Support: Android, Windows, iOS, macOS

System Performance

• CPU: 4-core processor
• RAM: 4GB
• Storage: 32GB Flash
• OS: Android 9.0 / Windows 10* (*Windows 10 requires an OPS plug-in computer.)

Mounting Options

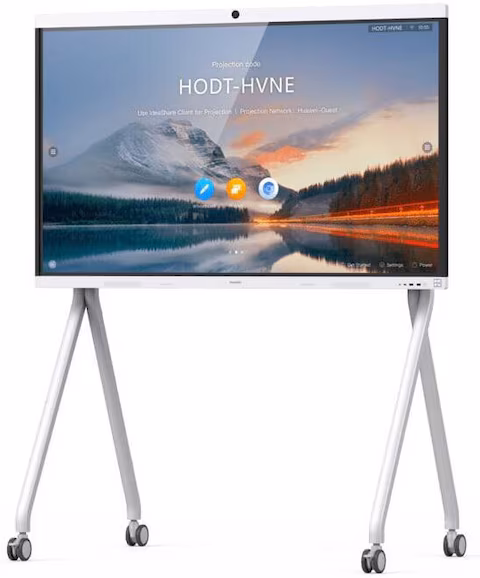

• Rolling Stand (Optional) – Available for 65″, 75″, and 86″ models.
• Wall-Mounted Bracket (Optional) – Available for 65″, 75″, and 86″ models.

Accessories

• Device x1
• Stylus Pen x2
• Power Cable x1
• IdeaShare Key (Optional)
• OPS (Optional)

For more details, visit the official Huawei eKit website: HUAWEI IdeaHub B2.
