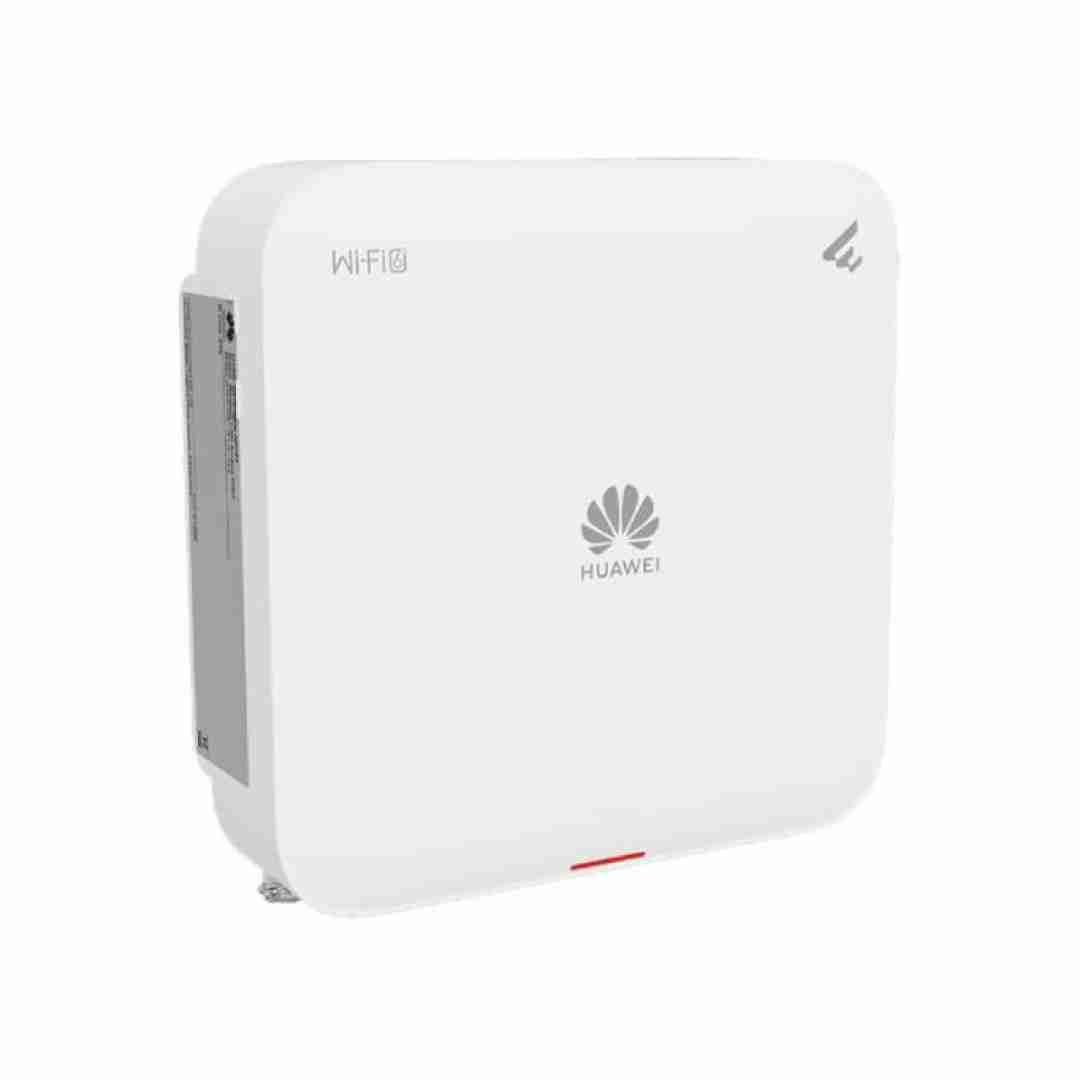

Huawei eKitEngine AP761 Outdoor Wi-Fi 6 Access Point

Reliable Outdoor Wi-Fi 6 Coverage for Large Areas

The Huawei eKitEngine AP761 Outdoor Wi-Fi 6 Access Point helps organizations deliver fast and stable wireless connectivity in outdoor environments. It supports the latest Wi-Fi 6 standard and provides a combined wireless speed of up to 1775 Mbps across the 2.4 GHz and 5 GHz bands.

With its rugged IP68-rated enclosure, directional antennas, and support for up to 1024 connected devices, the AP761 suits hotels, parks, campuses, restaurants, warehouses, and other demanding locations.

In addition, organizations can deploy the access point as a standalone device, connect it to a wireless controller, or manage it through the cloud. Therefore, it adapts easily to different network requirements.

Key Features

The Huawei AP761 offers several features that improve outdoor wireless performance:

• Wi-Fi 6 (802.11ax) technology
• Combined wireless speed of up to 1775 Mbps
• High-gain directional antennas
• IP68-rated weather-resistant enclosure
• Support for up to 1024 connected clients
• Gigabit Ethernet and SFP connectivity
• WPA2 and WPA3 security support
• Multiple deployment and management modes
• PoE support through IEEE 802.3af and 802.3at standards
• Smart roaming and load-balancing capabilities

High-Speed Wi-Fi 6 Performance

The AP761 supports IEEE 802.11ax technology and delivers up to 574 Mbps on the 2.4 GHz band and up to 1201 Mbps on the 5 GHz band. As a result, users can enjoy smooth video streaming, online meetings, cloud applications, and large file transfers.

Furthermore, the access point includes advanced Wi-Fi 6 technologies that improve network efficiency. MU-MIMO allows the AP to communicate with multiple devices simultaneously, which reduces congestion during busy periods.

The device also supports OFDMA. Consequently, it improves spectrum utilization and delivers a better experience in high-density environments. In addition, Beamforming directs wireless signals toward connected devices, strengthening coverage and improving signal quality.

Target Wake Time (TWT) further enhances performance because it helps connected devices reduce power consumption when they do not need continuous communication.

Directional Antennas for Extended Coverage

Unlike many standard outdoor access points, the Huawei AP761 features built-in high-gain directional antennas that support long-distance wireless coverage.

The 2.4 GHz radio provides 10 dBi antenna gain, while the 5 GHz radio offers 11 dBi gain. Consequently, the AP761 covers larger outdoor areas with stronger and more stable signals.

Moreover, the antenna design works particularly well in open environments such as parks, outdoor dining areas, school compounds, and recreational facilities where wide coverage remains essential.

Outdoor-Ready Design

Huawei designed the AP761 to withstand harsh environmental conditions. Its enclosure carries an IP68 rating and protects the device against dust, rain, and moisture.

Moreover, the access point supports operating temperatures from -40°C to +65°C. Therefore, organizations can deploy it in challenging climates with confidence.

For additional protection, Huawei includes 6 kA surge protection. As a result, the AP761 operates more reliably in outdoor installations where electrical surges may occur.

The AP supports both wall and pole mounting, giving installers greater flexibility during deployment.

Flexible Connectivity Options

The access point includes one Gigabit Ethernet port and one SFP port. The Gigabit Ethernet interface supports both data connectivity and PoE power input through IEEE 802.3af and 802.3at standards.

However, Huawei recommends 802.3at PoE because it ensures full functionality and optimal performance.

The SFP slot provides fiber connectivity for locations that require long-distance network links. Consequently, organizations can integrate the AP761 into larger enterprise and campus networks with ease.

Support for High-Density Environments

The Huawei AP761 handles large numbers of users efficiently. It supports up to 1024 connected clients, including up to 512 clients per radio.

Additionally, intelligent load balancing distributes users across available access points. This approach improves network stability and prevents individual devices from becoming overloaded.

The access point also supports smart roaming technologies such as 802.11k, 802.11v, and fast roaming. Therefore, users can move throughout a coverage area while maintaining uninterrupted connectivity.

Advanced airtime scheduling and channel management further improve performance by ensuring fair network access for connected devices.

Advanced Security and Network Management

Security remains a critical feature of the AP761. It supports WPA2 and WPA3 wireless security standards, helping organizations protect users and network resources from unauthorized access.

In addition, administrators can implement:

• 802.1X authentication
• MAC authentication
• Captive portal authentication
• DHCP snooping
• IP Source Guard
• Dynamic ARP Inspection
• VLAN segmentation
• Access control lists (ACLs)
• Quality of Service (QoS) policies

The access point also supports application-aware traffic management. Consequently, organizations can maintain secure and efficient network operations.

Management options include web-based administration, cloud management, SNMP monitoring, Bluetooth maintenance access, SSH, SFTP, and centralized controller management.

Multiple Deployment Modes

The AP761 supports several operating modes that accommodate different network sizes and management preferences.

1. Fat AP Mode allows standalone operation without a controller.
2. Leader AP Mode enables the device to manage additional access points.
3. Cloud AP Mode provides centralized cloud-based management and monitoring.
4. Fit AP Mode connects the access point to a dedicated wireless controller for large-scale enterprise deployments.

As a result, businesses can choose the deployment method that best matches their infrastructure and future growth plans.

Ideal Applications

The Huawei eKitEngine AP761 supports a wide range of outdoor and industrial deployments. Common applications include:

• Hotels and resorts
• Restaurants and outdoor dining areas
• Public parks
• Schools and campuses
• Sports facilities
• Warehouses
• Manufacturing plants
• Outdoor event venues
• Recreational facilities

Because of its rugged construction, directional antennas, Wi-Fi 6 performance, and flexible management options, the AP761 delivers reliable wireless connectivity in demanding environments where consistent coverage is essential.
