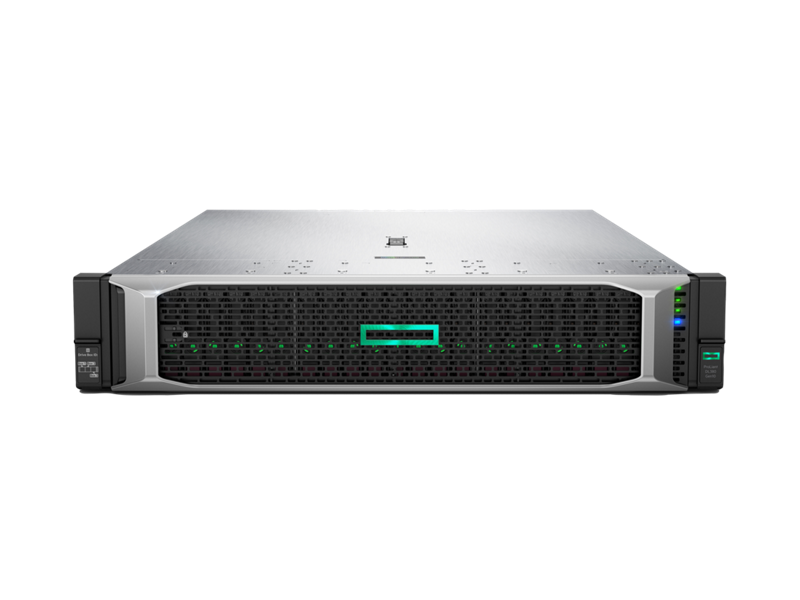

HPE ProLiant DL380 Gen10 (1) Intel® Xeon® Silver 4214R processor – P24842-B21

The HPE ProLiant DL380 Gen10 server is designed to deliver superior performance, reliability, and expandability for a wide range of applications. Featuring a 2U rack design, it supports powerful processing capabilities with the Intel® Xeon® 4214R processor and substantial memory, making it suitable for demanding workloads and data-intensive applications.

 Features:

1. Processor:
   • Model: Intel® Xeon® 4214R
   • Cores: 12
   • Clock Speed: 2.1 GHz
   • Power Consumption: 125W
2. Memory:
   • Capacity: 32GB (1x32GB) RDIMM
   • Type: DDR4
   • Speed: 2933 MT/s
3. Storage:
   • Hard Drives: Not included (supports various configurations)
   • Controller: P408i-a with 2GB cache and Smart Storage Battery
4. Networking:
   • Embedded NIC: HPE Embedded 4x1Gb
5. Power Supply:
   • Capacity: 800W HPE FlexSlot Power Supply
6. Management:
   • iLO: HPE Integrated Lights-Out (iLO) standard for remote management
7. Physical:
   • Form Factor: Rack (2U)
   • Optical Drive: None
   • Mouse/Keyboard: None
8. Warranty:
   • Duration: 3 years for parts, 3 years for labor, 3 years for on-site support

 Specifications:

1. Processor:
   • Family: Intel® Xeon® Scalable processors
   • Model Number: 4214R
   • Base Frequency: 2.1 GHz
   • Max Turbo Frequency: 3.2 GHz
   • Cache: 16.5 MB L3
   • TDP: 125W
2. Memory:
   • Standard Memory: 32GB RDIMM
   • Memory Slots: 24 DIMM slots supporting RDIMM/LRDIMM
   • Max Capacity: Up to 3.0TB with RDIMMs or 7.5TB with LRDIMMs
   • Advanced ECC: Supported
3. Storage Controller:
   • Model: HPE Smart Array P408i-a SR Gen10
   • Cache: 2GB
   • Battery: Smart Storage Battery included
4. Networking:
   • Ports: 4 x 1GbE embedded
   • Additional NICs: Supports additional NICs through PCIe slots
5. Expansion Slots:
   • PCIe Slots: Up to 8 PCIe 3.0 slots for expansion
6. Power Supply:
   • Type: HPE FlexSlot
   • Capacity: 800W
   • Redundancy: Supports redundant power supply configuration
7. Management:
   • iLO: HPE iLO 5 providing remote management capabilities, security features, and enhanced control
8. Physical Dimensions:
   • Form Factor: 2U rack
   • Dimensions (HxWxD): 8.73 x 44.54 x 73.03 cm (3.44 x 17.54 x 28.76 inches)
   • Weight: Approximately 14.5 kg (32 lbs) without drives
9. Operating Systems Supported:
   • Various including Microsoft Windows Server, Linux (Red Hat, SUSE, Ubuntu), VMware, and more
10. Security Features:
    • Silicon Root of Trust: Protects against firmware attacks
    • Secure Recovery: Allows server firmware to roll back to last known good state
    • Runtime Firmware Verification: Ensures that the server firmware is free from malware

The HPE ProLiant DL380 Gen10 server is a robust, versatile solution ideal for data centers, virtualization, cloud computing, and a range of other enterprise applications
