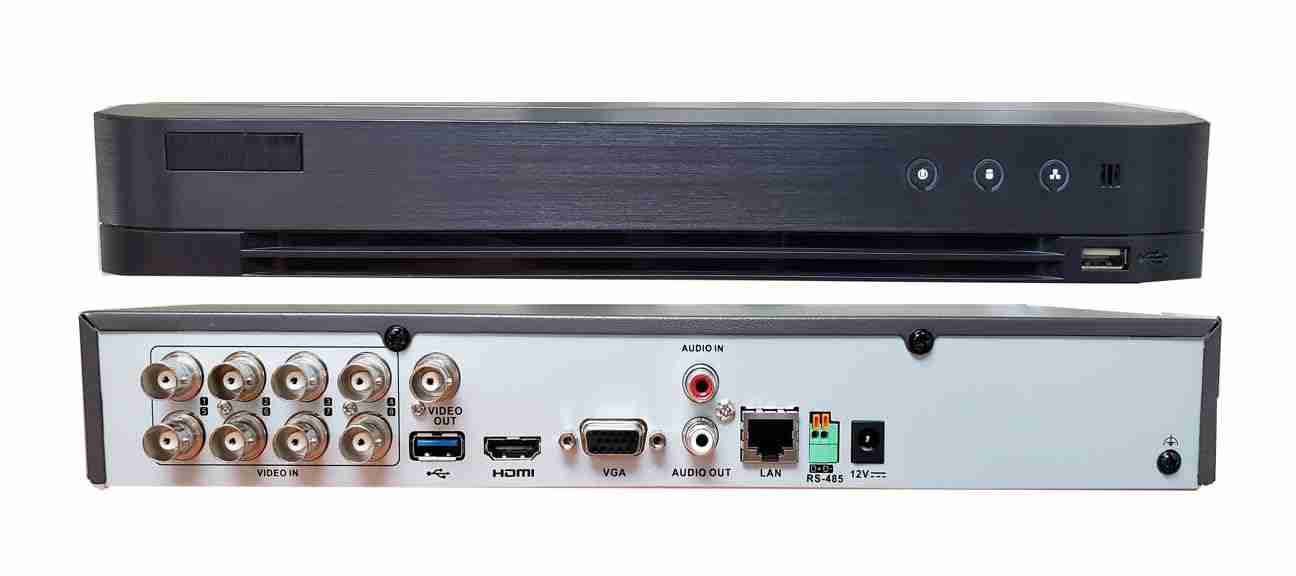

Hikvision iDS-7208HQHI-M1/XT 8-ch 1080p 1U H.265 AcuSense DVR

Hikvision iDS-7208HQHI-M1/XT 8-Channel AcuSense DVR with Deep Learning Analytics & Face Recognition

The Hikvision iDS-7208HQHI-M1/XT 8-ch 1080p 1U H.265 AcuSense DVR has the following specifications
Facial Recognition
Face Picture Library Up to 16 face picture libraries
Face Picture Comparison
(Captured from Camera)
Face picture comparison, face picture search (2-ch face picture comparison alarm for
HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog
channels, it can classify human and vehicle, and extremely reduce false alarms caused
by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis
Up to 4-ch
Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot
be enabled at the same time. Enable one function will make the other two unavailable.
Video and Audio
IP Video Input
2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), Up to 6 MP resolution
Note: Enhanced IP mode might be conflicted with smart events (face picture
comparison, motion detection 2.0 and perimeter protection) or other functions, please
refer to the user manual for details.
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4
MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps,
720P@25/30fps
HDCVI Input
3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30
fps,1080P@25/30 fps, 720P@25/30fps
CVBS Input PAL/NTSC
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input
1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Note: The number of audio inputs and alarm in/out can be optional. The tag on the
package will describe audio input and alarm in/out parameters. For example,
“4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm
outputs. If your device only has 1 audio input, the tag may not describe it.
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 8-ch

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps
(N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32 Kbps to 6 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Network
Remote Connection 64
Total Bandwidth 96 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial Interface RS-485 (half-duplex)
SATA 1 SATA interface, up to 10 TB capacity for each disk
Alarm In/Out N/A (optional to support)
USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 18 W (without HDD)
Working Temperature -10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)

Weight ≤ 1.78 kg (3.9 lb) (without HDD)
