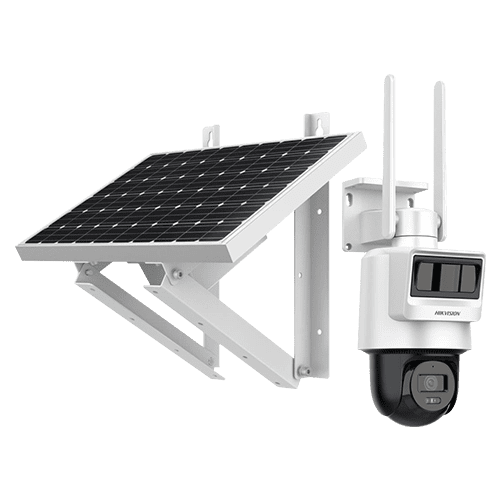

Hikvision DS-2DE2C400IWG-K/4G/C05S10 4MP Pro Solar-powered Security PT Camera Setup

• Camera
• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

  4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

• PTZ
• Movement Range (Pan)0° to 340°
• Movement Range (Tilt)0° to 80°
• Pan SpeedUp to 25°/s
• Tilt SpeedUp to 25°/s

• DORI
• DORI

  2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

  4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI)1 fixed region for main stream

• Audio
• Audio TypeMono sound
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Audio CompressionG.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
• Audio Bit Rate16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

• Network
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• ProtocolsTCP/IP, DHCP, IPv4
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientHik-Connect,HikCentral Professional, Hik-Partner Pro
• Web BrowserLocal service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

• Mobile Communication
• StandardLTE-FDD,LTE-TDD,UMTS
• Frequency

  EU:

  LTE-FDD: B1/3/5/7/8/20/28

  IN:

  LTE-FDD: B1/3/5/8

  LTE-TDD: B34/38/39/40/41

  LA:

  LTE-FDD: B2/3/4/5/7/8/28/66

  NA:

  LTE-FDD: B2/4/5/12/13/17/66/71

  UMTS: B2/4/5

• Uplink and Downlink Data Rate

  EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  NA: uplink: 50 Mbps, downlink: 150 Mbps

• SIM Card TypeNano SIM

• Image
• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Transducer
• Transducer TypePIR + Radar
• Detection AngleHorizontal: 80°, vertical: 30°
• Detection RangeUp to 12 m

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone1 built-in microphone
• Built-in Speaker1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset KeyYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card, notify surveillance center, trigger recording, trigger capture, audible warning

• General
• Power

  Power Consumption and Current:

  Typical power scenarios: 1.85 W (4G working)

  Standby scenarios: 80 mW

  Max. Power consumption: 7 W

  Power Supply: 12 VDC ± 25%

  *For debugging only

  10 W (deviation: ± 5%) Solar panels

  Power Interface:

  Power supply interface: four-core aviation connector

  Extened solar panel: four-core aviation connector

• Dimension133.1 mm × 177.64 mm × 382.44 mm/412.44 mm (5.24″ × 6.99″ × 15.06″/16.24″)
• MaterialPlastic
• Package Dimension375 mm × 305 mm × 398 mm (14.76″ × 12.01″ × 15.67″)
• WeightApprox. 850 g (1.87 lb.)
• With Package WeightApprox. 5400 g (11.88 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

• Battery
• Battery TypeTernary Lithium
• Cycle Lifetime

  27 hours (1.85 W)

  Full charge battery runtime without solar input.

• Battery Voltage9 V to 12.6 V
• Capacity50.76 Wh
• Max. Charging Voltage12.6 V
• Max. Output Voltage12.6 V
• Operating Temperature

  Charging: 0 °C to 45 °C (32 °F to 113 °F)

  Discharging: -20 °C to 55 °C (-4 °F to 131 °F)

• Battery LifeMore than 800 cycles

• Approval
• RF

  CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

  *CE certification is only for the device sold in the European region.

• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP66: IEC 60529-2013
