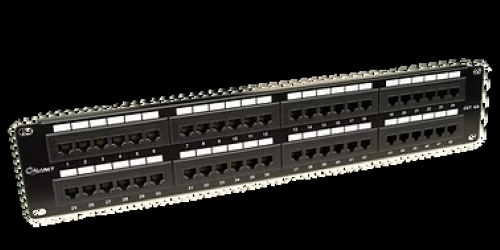

GIGANET GN-C6A-UTP-PP-48 Cat6A UTP 48-Port Patch Panel

GIGANET GN-C6A-UTP-PP-48 Cat6A UTP 48-Port Patch Panel

The GIGANET GN-C6A-UTP-PP-48 Patch Panel is a professional Category 6A U/UTP patch panel designed for high-performance structured cabling systems. Built for standard 19-inch racks, it provides 48 clearly identified ports for efficient cable management and dependable network connectivity. Moreover, its durable construction and rear wire manager simplify installation while supporting reliable Gigabit and 10 Gigabit Ethernet applications.

Product Overview

The Giganet Category 6A patch panel is engineered to provide organised cable termination in commercial and enterprise networking environments. It fits standard 19-inch cabinets and features six-port blocks that simplify installation and maintenance. As a result, technicians can manage network connections more efficiently.

Furthermore, this rackmount Ethernet patch panel includes numerical port identification, writeable labelling fields, cage nuts, and a rear wire manager. The IDC punch-down termination supports 22–26 AWG solid conductors, while the robust metal construction ensures long-term reliability in demanding network installations.

Key Features

• Supports Category 6A U/UTP structured cabling systems.
• 48 RJ45 ports provide high-density network connectivity.
• Designed for standard 19-inch equipment racks.
• 2U rackmount design maximises cabinet organisation.
• Numerical port identification simplifies cable management.
• Writeable labelling fields improve port identification.
• Six-port block layout makes installation easier.
• Rear wire manager helps organise cable routing.
• IDC punch-down termination supports 22–26 AWG solid wire.
• Cage nuts are included for straightforward installation.
• Durable matt black cold-rolled steel construction.
• Suitable for Gigabit Ethernet and 10 Gigabit Ethernet networks.

Technical Specifications

• Brand: Giganet
• Model: GN-C6A-UTP-PP-48
• Product Name: GIGANET GN-C6A-UTP-PP-48 Cat6A UTP 48-Port Patch Panel
• Category: Category 6A U/UTP Patch Panel
• Rack Size: Standard 19-inch
• Rack Height: 2U
• Ports: 48 RJ45 Ports
• Colour: Matt Black
• Termination Type: Dual IDC Punch Down
• Supported Cable: 22–26 AWG Solid Wire
• Metal Material: Cold Rolled Steel Plate
• IDC Material: PC UL94V-0
• Contact Resistance: 20 mΩ
• Insulation Resistance: ≥500 MΩ at 100V DC
• Withstand Voltage: DC100V / AC700V RMS, 60Hz, 1 Minute
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +70°C
• RJ45 Contact Life: 750 Insertions
• IDC Life: 250 Terminations
• Compliance: ANSI/TIA/EIA-568B.2-10 Category 6A Permanent Link
• Included Accessories: Rear wire manager and cage nuts

Why Choose This Patch Panel?

A reliable patch panel is essential for a structured and organised network. Therefore, this Category 6A rackmount panel delivers dependable cable termination while simplifying installation and ongoing maintenance. In addition, the included wire manager and clear port identification help reduce installation time and improve cable organisation.

Whether you are installing a new data network or expanding an existing rack, the GIGANET GN-C6A-UTP-PP-48 Patch Panel provides the performance and durability required for professional structured cabling systems. Consequently, it supports stable network connections and protects your long-term infrastructure investment.

Conclusion

The GIGANET GN-C6A-UTP-PP-48 combines high-density connectivity, durable construction, and organised cable management in one professional networking solution. It is an excellent choice for businesses, server rooms, and data centres that require dependable Category 6A performance. Contact us for more information or add this patch panel to your networking project today.
