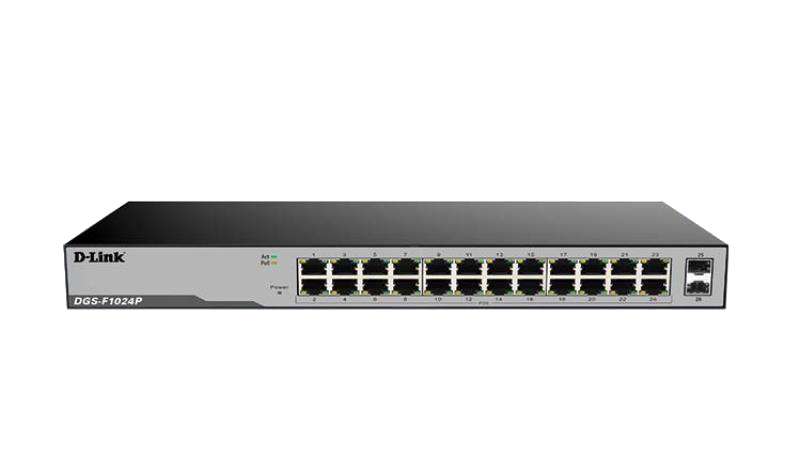

DGS-F1024P 24-Port Gigabit PoE+ Switch

DGS-F1024P 24-Port Gigabit PoE+ Switch

The D-Link DGS-F1024P 24-Port Gigabit PoE+ Switch connects and powers network devices through one rack-mountable unit. It serves businesses, schools, hotels, and security installations that require many wired connections. Moreover, its 250W Power over Ethernet budget reduces the need for separate power adapters. Two Gigabit Small Form-factor Pluggable uplink ports also support flexible network expansion.

Product Overview

The DGS-F1024P 24-Port Gigabit PoE+ Switch provides 24 Ethernet ports with 10/100/1000 Mbps speeds. Each port supports compatible Power over Ethernet devices. Therefore, installers can carry network data and electrical power through the same Ethernet cable.

Two Gigabit SFP ports provide dedicated uplink options. In addition, the switch supports Institute of Electrical and Electronics Engineers 802.1Q Virtual Local Area Network tagging. Flow control also helps protect data during busy network activity. Since the unit operates as an unmanaged switch, it offers straightforward deployment without complex daily configuration.

Key Features

• Provides 24 Gigabit PoE ports, allowing many powered devices to share one network switch.
• Delivers a total PoE budget of 250W for compatible access points, cameras, and other network equipment.
• Supports IEEE 802.3af and IEEE 802.3at PoE standards, enabling power delivery through Ethernet cables.
• Includes two Gigabit SFP uplink ports, providing extra connection options for network expansion.
• Supports IEEE 802.1Q VLAN tagging, helping tagged traffic pass through structured network environments.
• Uses flow control to reduce data loss when network traffic becomes heavy.
• Features a rack-mountable metal housing, supporting organised installation in network cabinets.
• Includes rack-mount brackets, which simplifies preparation for cabinet installation.

Technical Specifications

• Brand: D-Link
• Model: DGS-F1024P
• Product type: Unmanaged Gigabit PoE switch
• Ethernet ports: 24 × 10/100/1000 Mbps PoE ports
• Uplink ports: 2 × Gigabit SFP ports
• Total PoE budget: 250W
• PoE standards: IEEE 802.3af and IEEE 802.3at
• VLAN support: IEEE 802.1Q VLAN tagging
• Traffic control: Flow control
• Housing: Rack-mountable metal enclosure
• Included mounting accessory: Rack-mount brackets

Common Applications

The DGS-F1024P 24-Port Gigabit PoE+ Switch suits office networks, schools, hotels, retail spaces, and surveillance installations. For example, it can connect and power compatible Internet Protocol cameras or wireless access points. Its high port count also supports growing networks that require centralised Gigabit connectivity.

Why Choose This Product?

The DGS-F1024P 24-Port Gigabit PoE+ Switch combines 24 powered Gigabit connections with a 250W PoE budget. Consequently, businesses can reduce separate electrical connections near supported devices. The two SFP uplinks also provide room for network expansion. Furthermore, its unmanaged operation and included mounting brackets simplify deployment in a network cabinet.

Frequently Asked Questions

How much total PoE power does the DGS-F1024P provide?

The switch provides a shared PoE budget of 250 watts across its powered Ethernet ports.

Which PoE standards does this switch support?

It supports IEEE 802.3af and IEEE 802.3at for compatible powered network devices.

What purpose do the two SFP ports serve?

The two Gigabit SFP ports provide additional uplink options for connecting the switch within a larger network.

Are rack-mount brackets included?

Rack-mount brackets come with the switch for installation in a suitable network cabinet.
