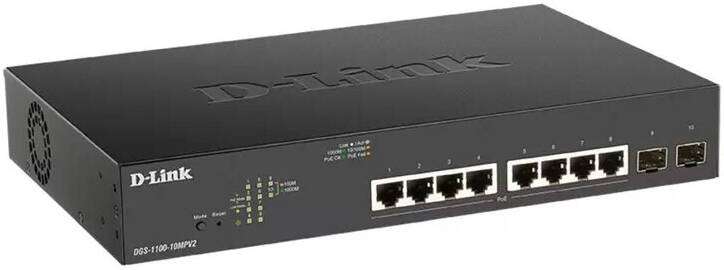

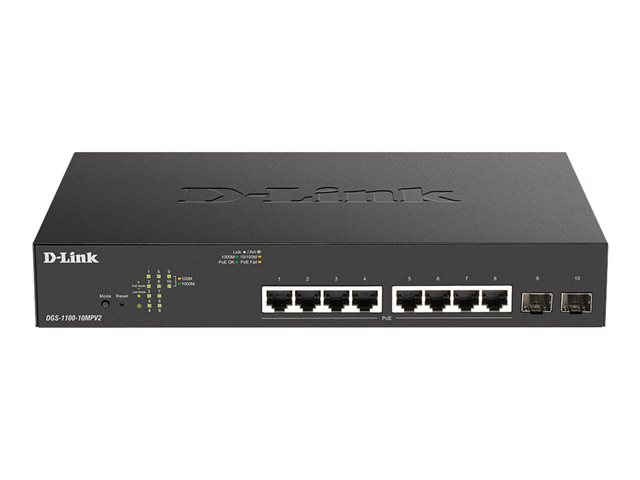

DGS-1100-10MPV2 – 8-Port Gigabit PoE Smart Managed Switch

D-Link DGS-1100-10MPV2 Gigabit PoE Switch with 8 PoE Ports

The DGS-1100-10MPV2 Gigabit PoE Switch combines powered network access, fibre uplinks, and practical Layer 2 management. It serves offices, schools, hotels, retail spaces, and professional security networks. Eight Gigabit Ethernet ports connect and power compatible devices. Meanwhile, two dedicated SFP ports provide fibre uplinks. A 130W PoE budget also supports several powered devices through one switch.

Product Overview

The DGS-1100-10MPV2 Gigabit PoE Switch provides eight 10/100/1000 Mbps ports with Power over Ethernet. These ports support IEEE 802.3af and IEEE 802.3at devices. Therefore, compatible access points, cameras, and Internet Protocol phones can receive data and power through one cable.

Two 100/1000 Mbps Small Form-factor Pluggable ports provide dedicated fibre connections. In addition, the web interface allows administrators to configure Virtual Local Area Networks, Quality of Service, link aggregation, and traffic controls. Cable diagnostics and loopback detection also simplify fault finding.

Key Features

• Provides eight Gigabit PoE ports, combining high-speed data and power delivery through Ethernet cabling.
• Offers a shared 130W PoE budget, supporting several compatible powered network devices.
• Supports IEEE 802.3af and IEEE 802.3at, allowing up to 30W output per powered port.
• Includes two 100/1000 Mbps SFP ports, providing dedicated fibre uplinks with suitable modules.
• Supports IEEE 802.1Q VLANs, helping administrators separate traffic into logical network groups.
• Provides IEEE 802.3ad link aggregation, allowing suitable connections to operate as one logical link.
• Supports STP and RSTP, helping prevent switching loops that could interrupt network traffic.
• Uses eight Quality of Service queues per port, improving control over important network traffic.
• Includes cable diagnostics, helping administrators identify cable quality and connection faults.
• Uses a smart fan, providing active cooling according to the switch’s operating requirements.

Technical Specifications

• Brand: D-Link
• Model: DGS-1100-10MPV2
• Product type: Layer 2 smart managed PoE switch
• PoE access ports: 8 × 10/100/1000 Mbps
• Uplink ports: 2 × 100/1000 Mbps SFP
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Maximum PoE output per port: 30W
• Total PoE budget: 130W
• Switching capacity: 20 Gbps
• Maximum forwarding rate: 14.88 Mpps
• MAC address table: 8,000 entries
• Packet buffer: 4.1 Mbits
• Jumbo frame support: Up to 10,000 bytes
• Power input: 100–240V AC, 50–60Hz
• Dimensions: 280 × 180 × 44 mm
• Weight: 1.5 kg
• Mounting: Desktop or 19-inch rack
• Cooling: Smart fan
• Operating temperature: -5°C to 50°C

Common Applications

This switch suits office networks, schools, hotels, shops, and professional surveillance systems. For example, it can power compatible cameras, wireless access points, and phones. The dedicated SFP ports also support fibre connections between network rooms or building sections.

Why Choose This Product?

The DGS-1100-10MPV2 Gigabit PoE Switch combines eight powered ports with two dedicated fibre uplinks. Consequently, organisations gain flexible device placement and network expansion. Its web interface also provides useful traffic and security controls. Furthermore, the compact rack-mountable design supports organised installation in small network cabinets.

Frequently Asked Questions

Are the SFP ports shared with Ethernet ports?

The two SFP interfaces are dedicated uplink ports and do not share connections with the eight Gigabit PoE ports.

How much power can each PoE port supply?

Each port can provide up to 30W, while all powered devices share the switch’s 130W total budget.

Which management interface does the switch provide?

A web-based graphical interface provides access to its Layer 2 settings and monitoring tools.

What does the smart fan do?

The smart fan provides active cooling and adjusts operation according to the switch’s cooling requirements.
