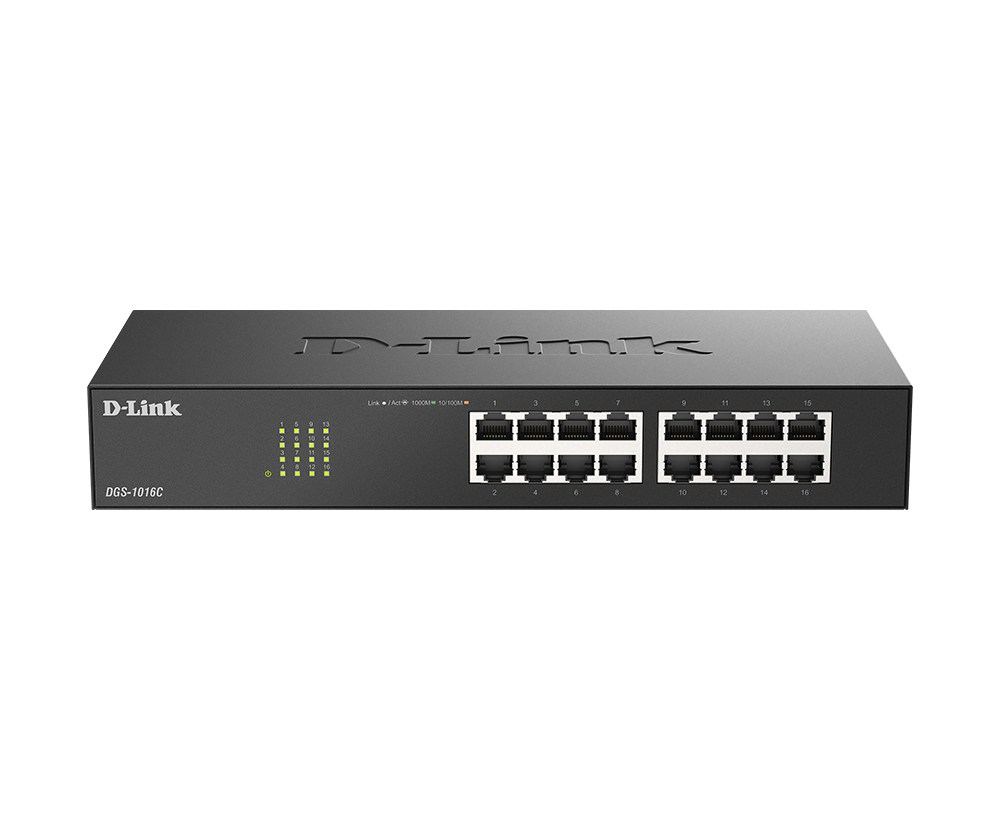

DGS-1016C – 16-Port Gigabit Unmanaged Switch

D-Link DGS-1016C Gigabit Unmanaged Switch with 16 Ports

The DGS-1016C Gigabit Unmanaged Switch provides fast wired connectivity for homes, small offices, and growing businesses. It includes 16 Gigabit Ethernet ports for computers, printers, storage devices, and other network equipment. Moreover, its plug-and-play design requires no software configuration. Automatic port settings and energy-saving technology also simplify daily operation while reducing unnecessary power use.

Product Overview

The DGS-1016C Gigabit Unmanaged Switch supports 10, 100, and 1000 Mbps connections on every port. Auto-negotiation selects a suitable speed for each connected device. In addition, automatic MDI/MDIX removes the need to choose between straight-through and crossover Ethernet cables.

The switch uses store-and-forward transmission to check data before sending it onward. It also supports full wire-speed reception and transmission. Meanwhile, IEEE 802.1p Quality of Service prioritises time-sensitive traffic. Therefore, voice calls, video streams, and file transfers can receive efficient handling during busy periods.

Key Features

• Provides 16 Gigabit LAN ports, allowing several wired devices to share one local network.
• Supports 10/100/1000 Mbps auto-negotiation, matching each port to the connected device’s supported speed.
• Uses plug-and-play installation, so users can expand a network without software configuration.
• Supports automatic MDI/MDIX on every port, removing the need for special crossover cables.
• Provides wire-speed reception and transmission, helping maintain efficient data movement across active ports.
• Supports IEEE 802.1p Quality of Service with eight queues, prioritising important network traffic.
• Uses IEEE 802.3x flow control to reduce dropped packets when a receiving buffer becomes full.
• Supports IEEE 802.3az Energy-Efficient Ethernet, lowering port power use during inactive periods.
• Adjusts energy use according to cable length, helping avoid unnecessary power consumption.
• Uses a silent design, making it suitable for workspaces where low operating noise matters.

Technical Specifications

• Brand: D-Link
• Model: DGS-1016C
• Product type: Unmanaged Gigabit Ethernet switch
• Network ports: 16 × 10/100/1000 Mbps LAN
• Switching capacity: 32 Gbps
• MAC address table: 8,000 entries
• Jumbo frame support: Up to 9,216 bytes
• RAM buffer: 512 KB
• Transmission method: Store-and-forward
• Quality of Service: IEEE 802.1p with eight queues
• Flow control: IEEE 802.3x
• Energy standard: IEEE 802.3az
• Dimensions: 280 × 126 × 44 mm
• Standby power consumption: 2.98W
• Maximum power consumption: 9.26W
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% non-condensing

Common Applications

This switch suits home offices, small businesses, schools, shops, and workgroups. For example, it can connect desktop computers, network printers, servers, and storage devices. Its 16 ports also provide room for expanding an existing wired network.

Why Choose This Product?

The DGS-1016C Gigabit Unmanaged Switch combines 16 high-speed ports with simple installation and automatic operation. Consequently, users can expand wired connectivity without learning complex management settings. Flow control and Quality of Service help maintain reliable traffic delivery. Furthermore, energy-saving features can reduce power use when ports remain inactive.

Frequently Asked Questions

Does the DGS-1016C supply Power over Ethernet?

This model provides network data connections but does not supply Power over Ethernet.

Does the switch require software configuration?

Its unmanaged plug-and-play design works without software configuration.

What is the maximum full-duplex Gigabit rate?

Gigabit Ethernet supports up to 2000 Mbps when counting simultaneous sending and receiving.

Does the DGS-1016C support jumbo frames?

The switch supports jumbo Ethernet frames up to 9,216 bytes.
