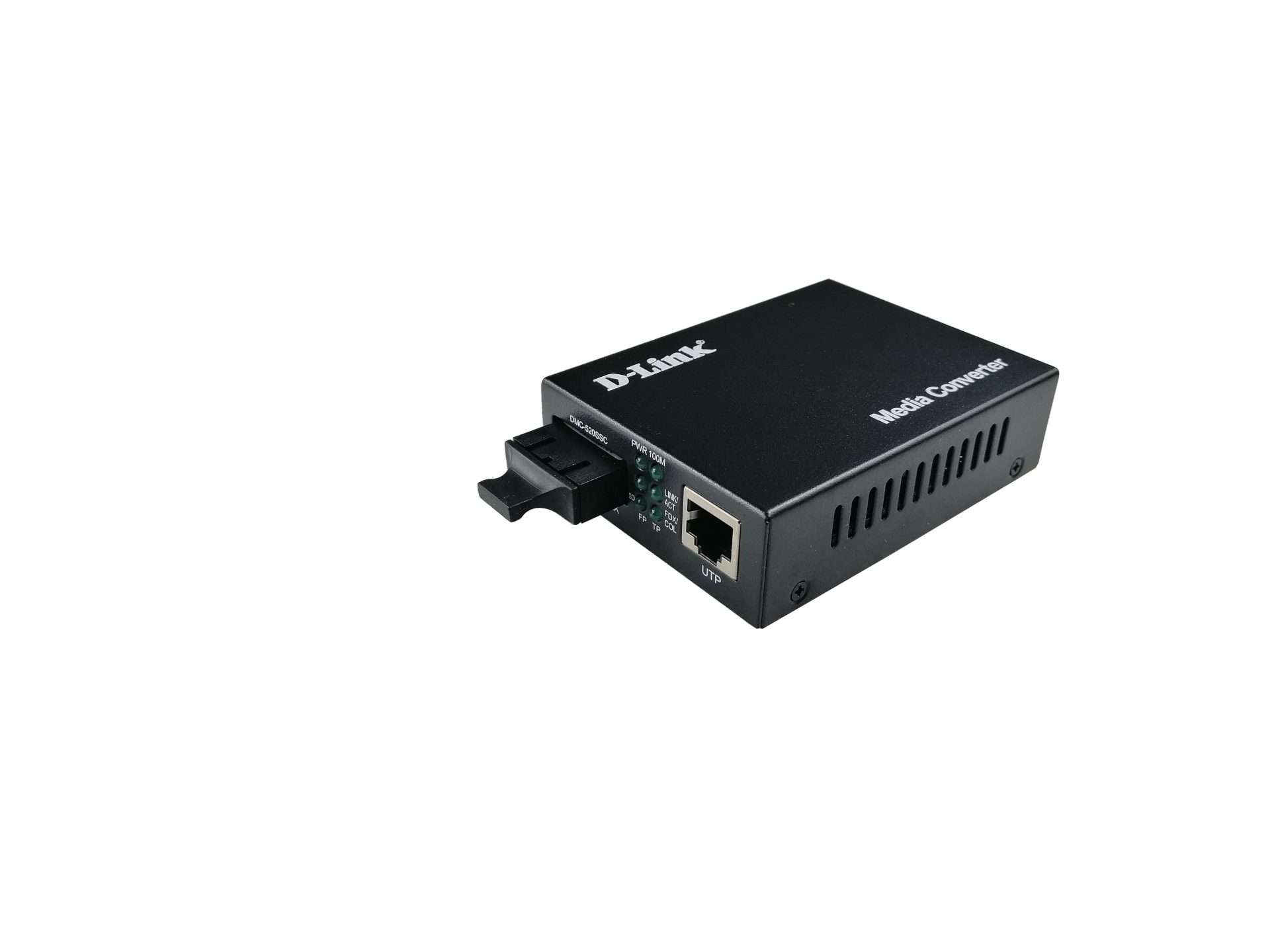

D-link DMC-540SSC — Fiber media converter

D-Link DMC-540SSC 10/100TX to 100FX Single-Mode SC Fiber Converter

Boost your network’s reach with the D-Link DMC-540SSC — a reliable and compact single-mode fiber media converter designed for extending Ethernet connections over long distances. Discover this and more networking products at https://www.almiriatechstore.co.ke.

Key Features

• Converts 10/100 Mbps copper Ethernet (RJ-45) to 100 Mbps single-mode fiber (SC connector)

• Supports fiber transmission up to approximately 40 km (1310 nm wavelength)

• Auto-MDI/MDIX on the RJ-45 port for simplified cabling

• Store-and-forward switching ensures reliable data transmission

• LED indicators for link, activity, and power status

• Compact, metal chassis design suitable for standalone or chassis installation

• Energy-efficient and low-heat operation

• Ideal for connecting remote offices, IP cameras, or backbone links

Specifications

• Model: DMC-540SSC

• Copper Port: 1 × 10/100BASE-TX RJ-45 (Auto-MDI/MDIX)

• Fiber Port: 1 × 100BASE-FX SC Single-Mode, 1310 nm

• Transmission Distance: Up to 40 km

• Switching Method: Store-and-forward

• Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX)

• LED Indicators: Power, Link/Activity, Speed

• Power Supply: 5V DC, 1A external adapter

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -20°C to 70°C

• Humidity: 10–90% (non-condensing)

• Dimensions: 95 × 70 × 26 mm

• Installation Options: Standalone or chassis-mount
