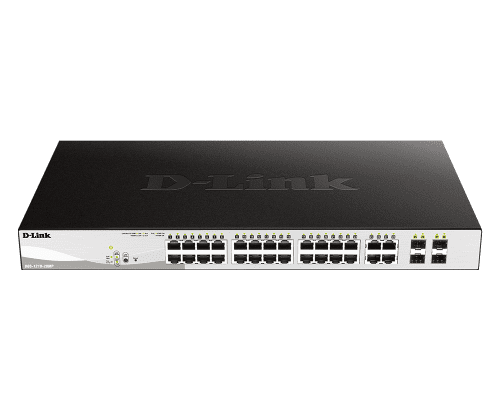

D-Link DGS-1210-28MP28-Port Gigabit Smart Managed PoE Switch

The D-link 28-Port Gigabit Smart Managed PoE Switch supports a full set of Layer 2 functions, including IGMP Snooping, Port Mirroring, Spanning Tree Protocol (STP) and Link Aggregation Control Protocol (LACP). The IEEE 802.3x flow control function allows you to optimize the load on the switch to improve the reliability of data transfer.

Supporting the speed on each of the ports up to 2000 Mbit / s in full duplex mode, the switch provides the high performance required to connect workstations. The switch supports cable diagnostics and Loopback Detection. The Loopback Detection function is used to detect loops and automatically turn off the port on which the loop is detected.

The cable diagnosis function is used to determine the status of the twisted pair, as well as the type of cable fault.The D-Link DGS-1210-28MP is a cutting-edge WebSmart switch, designed for businesses looking to maximize their network’s efficiency and scalability.

Featuring 24 10/100/1000Base-T ports with Power over Ethernet (PoE) support and 4 1000Base-X SFP ports, this switch is equipped to handle a variety of networking tasks. Integrated with D-Link Green technology, it offers advanced management and security features, ensuring a high-performance network solution.

Energy Efficiency

Utilizing D-Link Green technology, the DGS-1210-28MP optimizes power usage without compromising performance. It smartly determines the connection status of each port, reducing power consumption by transitioning inactive ports into sleep mode. This approach significantly cuts energy costs, thanks to the energy-efficient chipset within the switch.

Layer 2 Features

The DGS-1210-28MP supports a comprehensive set of Layer 2 functions, including IGMP Snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Its IEEE 802.3x flow control optimizes switch load, enhancing data transfer reliability. With support for up to 2000 Mbit/s speed in full duplex mode per port, it ensures high performance for connected workstations.

Auto Surveillance VLAN and Bandwidth Management

This switch excels in deploying video surveillance and IP telephony systems, thanks to its Auto Surveillance VLAN (ASV) and Auto Voice VLAN capabilities. These features allow for automatic detection and prioritization of video and VoIP traffic, ensuring stable operation, high-quality transmission, and maximum protection of multimedia traffic, irrespective of overall network load.

Network Security

Featuring the D-Link Safeguard Engine, the DGS-1210-28MP offers robust protection against viruses and malicious traffic. Port-based authentication via an external RADIUS server enhances user authorization, while ACL filtering secures the network against unauthorized access. Additional features include ARP Spoofing attack prevention and DHCP Server Screening, bolstering network security.

Easy Management

For ease of operation, the DGS-1210-28MP supports SNMP, Web-based management, D-Link Network Assistant, and a CLI via Telnet. The D-Link Network Assistant utility simplifies initial setup, allowing for straightforward configuration and management of network devices.
