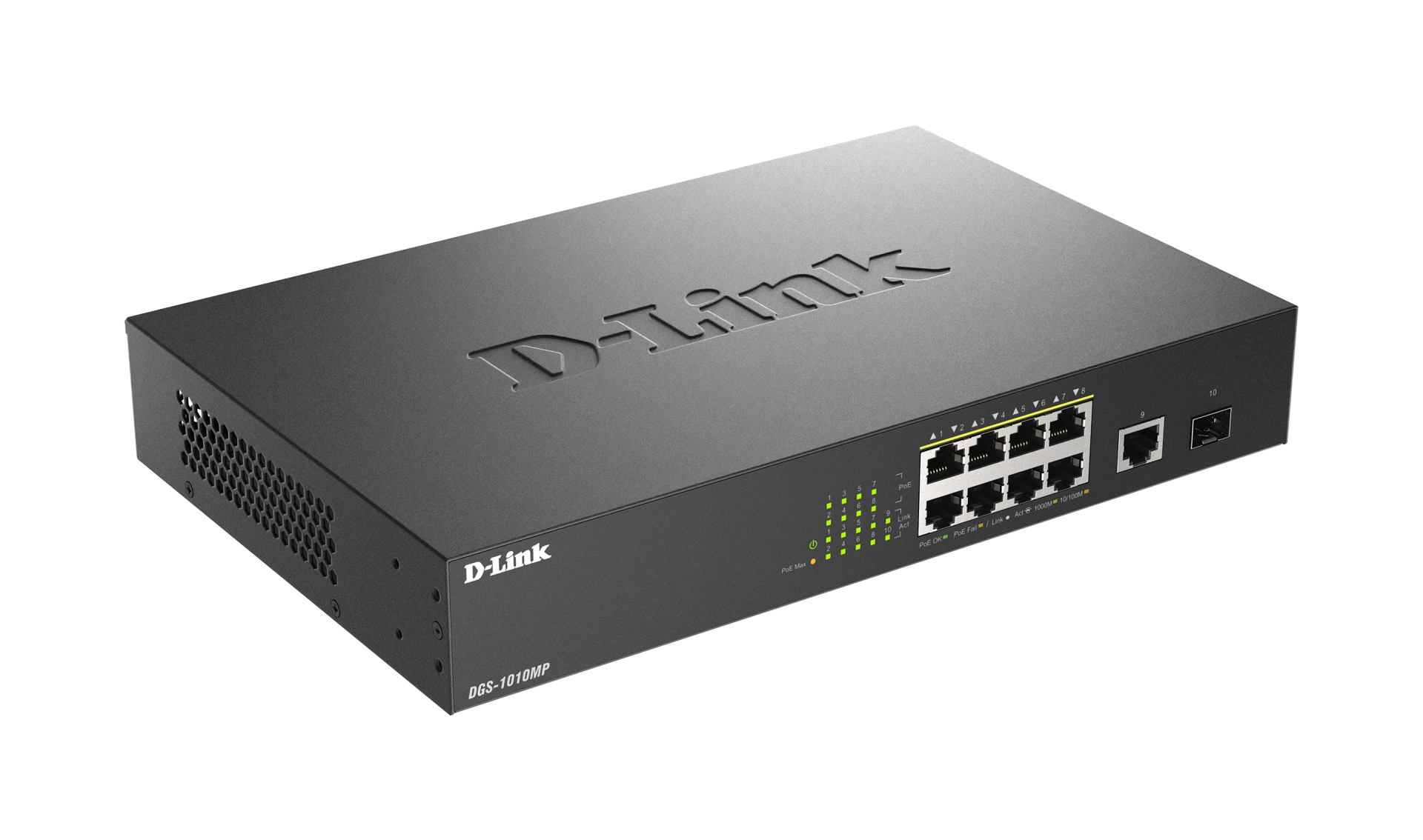

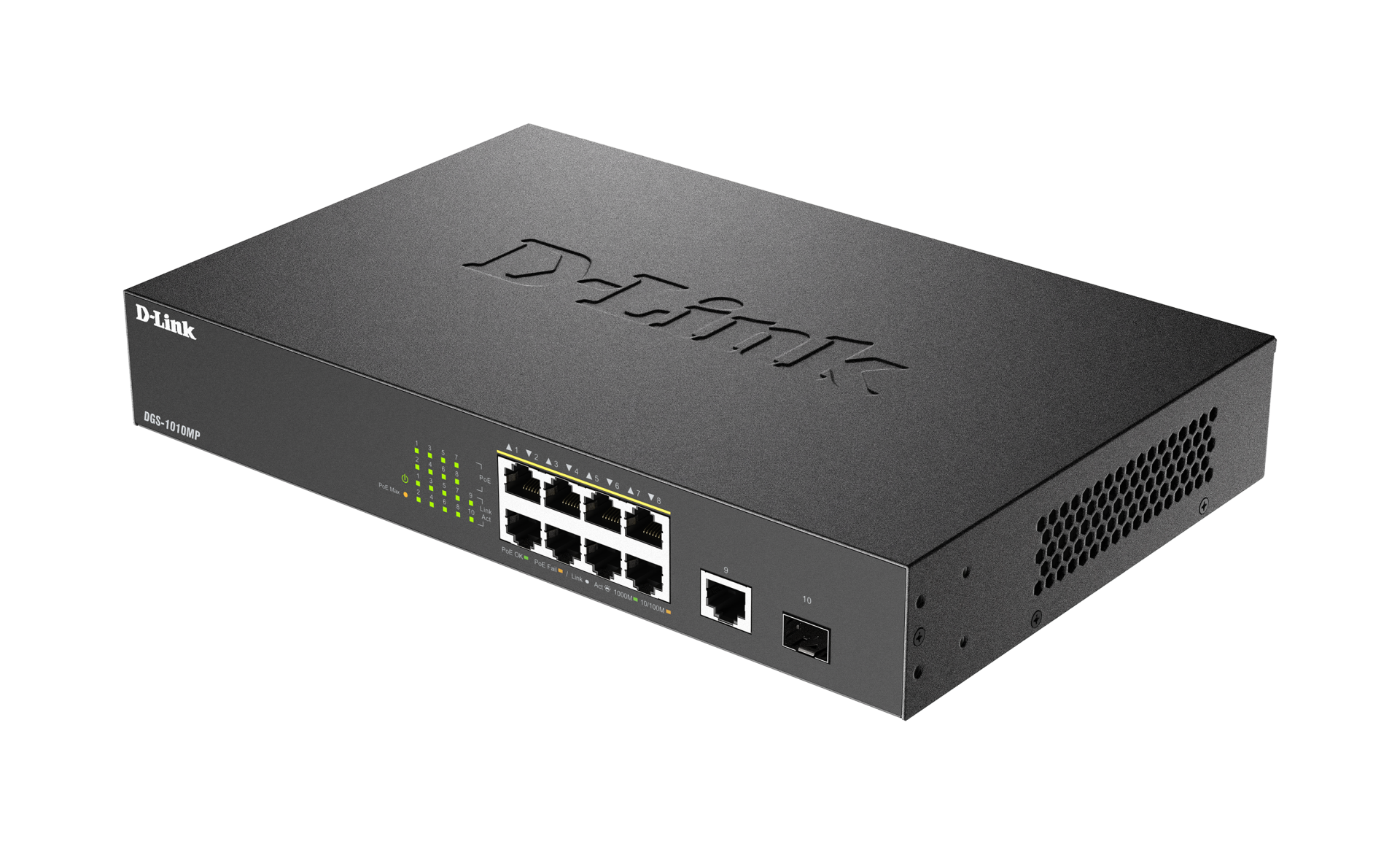

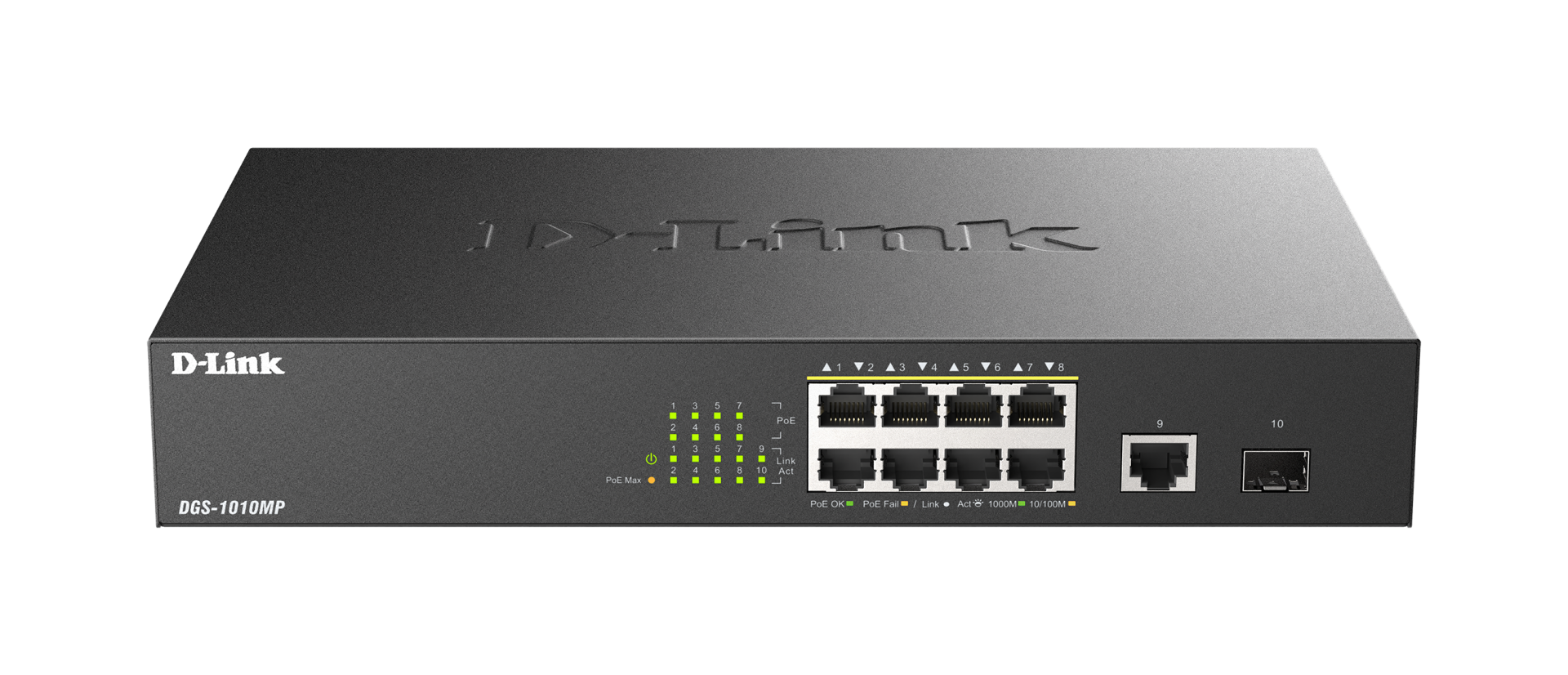

D-Link DGS-1010MP Gigabit PoE Switch with 10 Ports

D-Link DGS-1010MP Gigabit PoE Switch with 10 Ports

The DGS-1010MP Gigabit PoE Switch provides powered network connections for small offices and enterprise environments. It includes eight Gigabit Power over Ethernet ports for compatible access points, Internet Protocol cameras, and phones. Moreover, separate copper and fibre uplinks support flexible network expansion. Its plug-and-play operation and fanless design also make installation simple and quiet.

Product Overview

The DGS-1010MP Gigabit PoE Switch provides eight 10/100/1000 Mbps access ports with IEEE 802.3at support. Each powered port can deliver up to 30W. However, all connected devices share the switch’s total 125W PoE budget.

One Gigabit Ethernet port and one Small Form-factor Pluggable port serve as uplinks. Therefore, installers can connect the switch through copper Ethernet or suitable fibre equipment. Auto-negotiation also detects each device’s supported speed. Meanwhile, automatic MDI/MDI-X removes the need for special crossover cables.

Key Features

• Provides eight Gigabit PoE ports, carrying network data and electrical power through compatible Ethernet cables.
• Delivers up to 30W per powered port, supporting compatible IEEE 802.3at devices.
• Offers a shared 125W PoE budget, allowing several powered devices to operate from one switch.
• Includes one Gigabit Ethernet uplink, providing a dedicated copper connection to the main network.
• Includes one 100/1000 Mbps SFP uplink, supporting suitable fibre connections over longer network links.
• Uses plug-and-play installation, so the switch requires no management configuration.
• Applies store-and-forward switching, helping minimise packet loss during data transmission.
• Supports IEEE 802.3x flow control, helping manage traffic when a receiving buffer becomes full.
• Uses IEEE 802.3az Energy-Efficient Ethernet, reducing power use when network activity remains low.
• Features a fanless metal enclosure, supporting quiet desktop or rack-mounted operation.

Technical Specifications

• Brand: D-Link
• Model: DGS-1010MP
• Product type: Unmanaged Gigabit PoE switch
• PoE access ports: 8 × 10/100/1000 Mbps
• Copper uplink: 1 × 10/100/1000 Mbps Ethernet
• Fibre uplink: 1 × 100/1000 Mbps SFP
• PoE standard: IEEE 802.3at
• Maximum output per PoE port: 30W
• Total PoE budget: 125W
• Switching capacity: 20 Gbps
• MAC address table: 4,000 entries
• Packet buffer: 192 KB
• Transmission method: Store-and-forward
• Dimensions: 280 × 180 × 44 mm

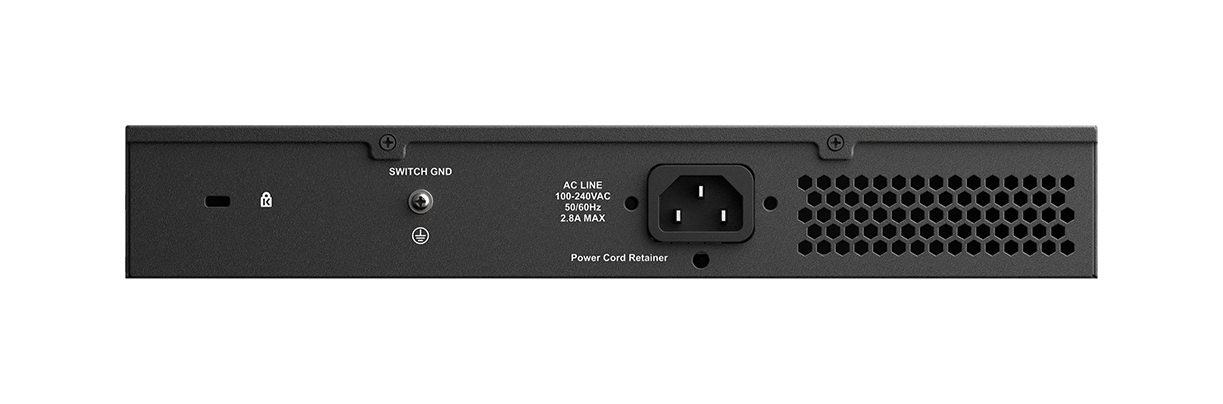

• Power input: 100–240V AC, 50/60Hz
• Maximum power consumption: 133.8W with PoE active
• Operating temperature: 0°C to 40°C
• Cooling: Fanless

Common Applications

This switch suits offices, schools, meeting rooms, retail spaces, and professional security installations. For example, it can power compatible wireless access points, network cameras, and Voice over Internet Protocol phones. The SFP uplink also supports fibre connectivity between separated network areas.

Why Choose This Product?

The DGS-1010MP Gigabit PoE Switch combines powered Gigabit access with dedicated copper and fibre uplinks. Consequently, businesses can reduce separate power connections near supported devices. Its unmanaged design simplifies installation, while the fanless enclosure keeps operation quiet. Furthermore, desktop and rack-mount options support different network layouts.

Frequently Asked Questions

Can all eight PoE ports deliver 30W simultaneously?

Each port supports up to 30W, but all connected devices must remain within the shared 125W budget.

How are the ten ports divided?

The switch has eight Gigabit PoE ports, one Gigabit copper uplink, and one 100/1000 Mbps SFP uplink.

Does the SFP uplink support Gigabit fibre?

The SFP interface supports both 100 Mbps and 1000 Mbps connections with suitable modules.

Can the DGS-1010MP operate quietly in an office?

Its fanless design eliminates cooling-fan noise during normal operation.
