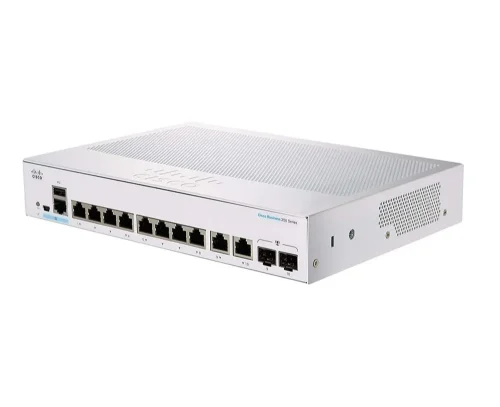

Cisco Business CBS350-8P-E-2G 8 Ports POE Managed Switch
The Cisco Business CBS350-8P-E-2G is a managed network switch designed for small businesses and branch offices. It offers 8 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 2 Gigabit SFP (Small Form-factor Pluggable) uplink ports, providing both data connectivity and power to connected devices.
Here are some key features of the Cisco Business CBS350-8P-E-2G:
- Gigabit Ethernet Ports: The switch provides 8 Gigabit Ethernet ports, allowing you to connect multiple devices to your network with high-speed data transfer rates.
- Power over Ethernet (PoE): All 8 Ethernet ports support PoE, which means you can power compatible devices such as IP phones, wireless access points, and IP cameras directly through the network cable. This eliminates the need for separate power supplies and simplifies device installation.
- PoE+ Support: The switch supports PoE+ (IEEE 802.3at), providing higher power output for devices that require more power, such as PTZ cameras or access points with multiple radios.
- SFP Uplink Ports: It includes 2 Gigabit SFP uplink ports, which allow for the connection of fiber optic cables for extended network reach or to connect to other networking devices.
- Layer 2 Features: The switch supports Layer 2 features such as VLAN (Virtual Local Area Network) capabilities, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). These features enhance network flexibility, redundancy, and performance.
- Quality of Service (QoS): The switch offers QoS features to prioritize critical network traffic, ensuring that important applications and services receive the necessary bandwidth and latency requirements.
- Easy Management: It includes a user-friendly web-based management interface, allowing for easy configuration and monitoring of the switch. Additionally, it supports Cisco FindIT Network Discovery Utility for simplified deployment and ongoing management.
- Enhanced Security: The Cisco CBS350-8P-E-2G incorporates security features such as port security and DHCP snooping to protect against unauthorized access and mitigate potential network threats.
- Energy Efficiency: The switch is designed with energy-saving features like Energy-Efficient Ethernet (IEEE 802.3az) and intelligent power management, reducing power consumption and operating costs.
Cisco CBS350-8P-E-2G-NA Specs
|Inputs/Outputs||8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+|
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP)
1 x Mini-USB (Console)
|Layer Services Supported||Layer 2 Support, Layer 3 Support|
|Supported Protocols||Head-of-Line (HOL) Blocking|
|Queuing||Strict Priority, Weighted Round Robin (WRR)|
|Jumbo Frames Support||9000 Bytes|
|MAC Address Table Size||16K|
|Security Features||DoS Attack Prevention|
|Access Control List||1024|
|SNMP Support||1, 2c, 3|
|Supported IEEE Standards||802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z|
|Forwarding Rate||14.88 Mpps|
|Switching Bandwidth||20 Gb/s|
|Packet Buffer||1.5 MB|
|Flash Memory||256 MB|
|Processor||800 MHz ARM|
|Power Draw||80.86 W (Max)|
|AC Input Power||100 to 240 VAC, 50 / 60 Hz|
|PoE Power Budget||60 W|
|PoE per Port||30 W|
|Power Supply Type||Internal|
