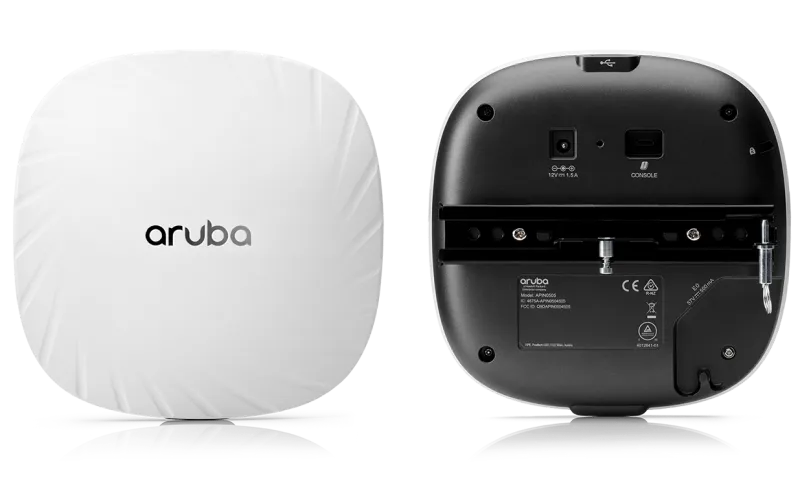

Aruba AP-505 (RW) Unified AP

The Aruba AP-505 (RW) Unified Access Point is part of Aruba’s 500 Series, designed to deliver high-performance connectivity using Wi-Fi 6 (802.11ax) technology. This AP is suitable for environments with high-density client devices and diverse traffic types, ensuring robust network performance and improved user experiences for mobile and IoT devices. The AP-505 is equipped with intelligent software innovations, making it ideal for modern enterprise networks.

 Features

1. Wi-Fi 6 (802.11ax) Technology:
   • Provides up to 400% better performance than 802.11ac APs.
   • Supports OFDMA and MU-MIMO for efficient spectrum use.
2. AI-Powered RF Optimization:
   • Utilizes machine learning for real-time RF tuning and optimization.
   • Ensures optimal performance and reduced interference.
3. Security:
   • Supports WPA3 and Enhanced Open for improved security.
   • Unified wired and wireless policy enforcement with Dynamic Segmentation.
4. High-Density Client Support:
   • Capable of handling multiple clients simultaneously.
   • Ideal for environments with a high number of connected devices.
5. Green AP Energy Savings:
   • AI/ML capabilities enable energy-saving features.
   • Reduces power consumption when network activity is low.
6. Live Upgrades:
   • Allows for seamless firmware updates without downtime.
   • Ensures continuous network operation and security.

 Specifications

• Wi-Fi Standards: 802.11ax, backward compatible with 802.11a/b/g/n/ac
• Radio Chains and Streams: 2×2:2 for both 2.4 GHz and 5 GHz radios
• Maximum Data Rates:
  • 2.4 GHz: up to 574 Mbps
  • 5 GHz: up to 1.2 Gbps
• Antenna Type: Integrated down-tilt omni-directional antennas
• Interfaces:
  • 1 x 10/100/1000BASE-T Ethernet (RJ-45)
  • Auto-sensing link speed and MDI/MDX
  • 1 x Bluetooth Low Energy (BLE) radio
• Power:
  • PoE: 802.3af/802.3at compliant
  • DC power (optional): 12V
• Mounting:
  • Ceiling and wall mountable with included hardware
• Dimensions:
  • 160mm x 160mm x 35mm (excluding mounting accessories)
• Weight: 700g (excluding mounting accessories)
• Environmental:
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -40°C to 70°C
  • Humidity: 5% to 93% non-condensing
• Certifications:
  • WPA3, Enhanced Open, FCC, CE, IC, UL 2043

The Aruba AP-505 (RW) Unified AP is designed to deliver superior performance and robust security, making it a versatile choice for various deployment scenarios in enterprise environments.
